Specifications
cement brick block making machine price1.ISO9001:2008,CE
2.multi-purpose design
3.Adopt full program
4.PLC

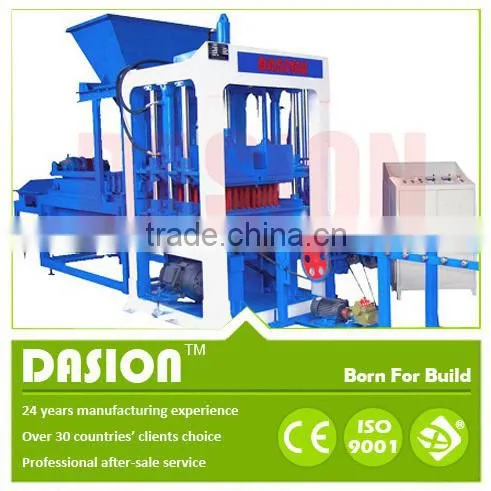

cement brick block making machine price DS Series brick making machinery construction equipment
DASION DS series Concrete Brick Making Machinery:
1. Adopt Germany, Italy, Japan technology to manufacturing;
2. Compatible with the concrete blocks, standard/solid/hollow/porous masonry products, paving stones with or without facemix, grass blocks, interlocks, etc.;
3. Adopt sub-storage device to overcome the liquefaction of concrete defects in advance;
4. The whole set of machine can be operated automatically, except DS4-35 be operated semi-automatically.
5. Adopt four-oriented approach to insure the pressure head and mold box move exactly with good stability, and wide fixed mold plate for mold box, with the replacement of various models of multi-purpose tool of a machine to meet the various needs.
6. The host machine adopt hydraulic rotational molding and vibration compression molding.
7. Forced feeding, the mold box equipped with a multi-fabric mixing fork, mold box to the top of mixing fork work on mandatory feed box.
Brief parameters introduction as following:
Model |
Block Specifications(mm) |
Forming Number (brick) |
Molding Cycle (seconds) |
Capacity (pcs) (8 hours) |
DS4-35 |
390 × 190 × 190 (hollow brick) |
4 |
35-40 |
3000-3290 |
240 × 115 × 90 (porous brick) |
9 |
35-40 |
7000-7400 |
|
240 × 115 × 53 (standard brick) |
21 |
35-40 |
15000-17200 |
|
|
Bamboo pallet size: 920 × 570 × 20mm Host power: 25.5KW Machine size: 6650 × 1500 × 2650(L×W×H)mm Total weight: 4.5T |
||||
DS4-15 |
390 × 190 × 190 (hollow brick) |
4 |
20-25 |
4608-5760 |
240 × 115 × 90 (porous brick) |
13 |
20-25 |
14950-18720 |
|
240 × 115 × 53 (standard brick) |
26 |
20-25 |
29900-37440 |
|
|
Bamboo pallet size: 920 × 570 × 20mm Host power: 25.5KW Machine size: 6650 × 1500 × 2650(L×W×H)mm Total weight: 8.5T |
||||
DS6-15 |
390 × 190 × 190 (hollow brick) |
6 |
15-25 |
7000-11520 |
240 × 115 × 90 (porous brick) |
12 |
15-25 |
14000-23040 |
|
240 × 115 × 53 (standard brick) |
30 |
15-25 |
34560-57600 |
|
Bamboo pallet size: 800 × 700 × 25mm Host power: 29.7KW |
||||
Machine size: 8800 × 1600 × 2750(L×W×H)mm Total weight: 10.5T |
||||
DS8-15 |
390 × 190 × 190 (hollow brick) |
8 |
15-20 |
11520-15360 |
240 × 115 × 90 (porous brick) |
21 |
15-20 |
30240-40320 |
|
240 × 115 × 53 (standard brick) |
42 |
15-20 |
60480-80640 |
|
|
Bamboo pallet size: 920 × 850 × 40mm Host power: 36.8KW Machine size: 7200 × 2100 × 2825(L×W×H)mm Total weight: 11.8T |
||||
DS10-15 |
390 × 190 × 190 (hollow brick) |
10 |
15-20 |
14400-19200 |
240 × 115 × 90 (porous brick) |
24 |
15-20 |
34560-46080 |
|
240 × 115 × 53 (standard brick) |
51 |
15-20 |
73440-97920 |
|
|
Bamboo pallet size: 1070 × 840 × 40mm Host power: 36.8KW Machine size: 7200 × 2290 × 3100(L×W×H)mm Total weight: 14.8T |
||||
