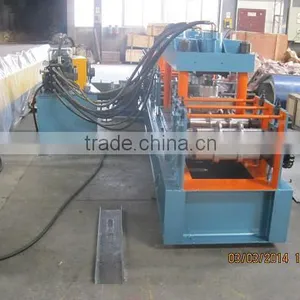

Help CenterAutomatic Stud& Track Forming Machine With ISO Quality
Related Products
-
New Structure Steel Angle Roll Forming MachineUS$ 22,000 - 30,000MOQ: 1 Set -
Self Lock Cold Roll Forming Machine From HangzhouUS$ 20,000 - 40,000MOQ: 1 Set
-
CE Metal Stud Roll Forming MachineUS$ 18,000 - 40,000MOQ: 1 Set
-
China Supplier Cold Track Roll Forming MachineUS$ 24,000 - 50,000MOQ: 1 Set
-
Omega Roll Forming MachineUS$ 20,000 - 60,000MOQ: 1 Set
MACHINE COMPONENTS:
(1) Manual decoiler 1pc (capacity:5 tons)
(2) Guiding Equipment 1set
(3) Roll Forming Equipment 1set
(4) Post-cutting Equipment 1set

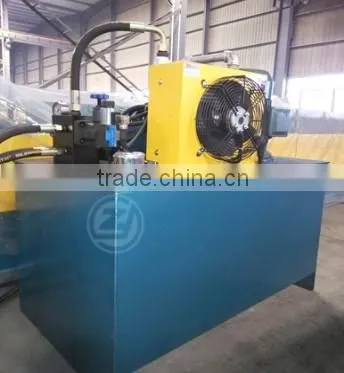

(5) Hydraulic Station 1pc
(6) PLC Control Panel 1pc
(7) Supporter Table 1set （two pieces, 1.5m/piece）

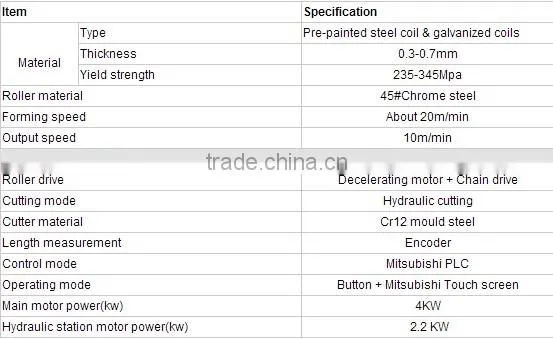

MATERIAL:
1 ) Coil Width: 152mm
2 ) Suitable Coil Thickness: 0.4 mm -0.8 mm
3 ) Suitable Raw Materials: Color steel sheet or galvanized steel sheet
4)Yield strength of raw material: 235Mpa-350Mpa

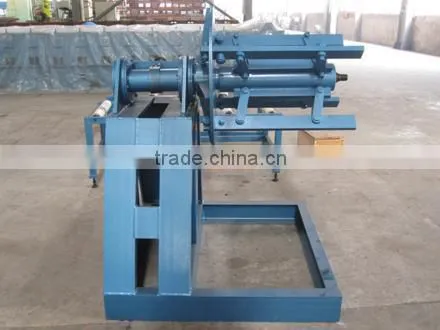

(1)Manual decoiler:
1) Un-power; manual decoiler; max. Capacity: 3000kg
2) Suit for coil inner-diameter: 508mm.
3) Manual power expands the coil inner surface.

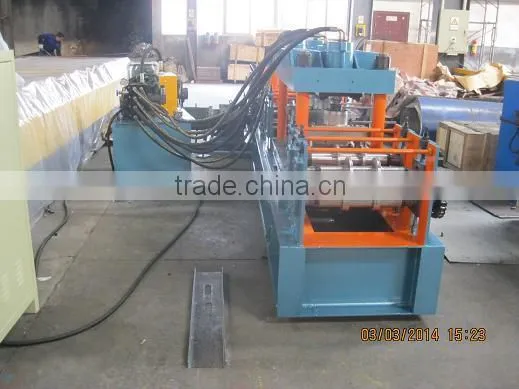

Roll forming system
1)Roller Material is high grade No.45 forged steel, with digital-controlled procession.
2)Shaft diameter is 55mm.
3)The main frame of machine is welded separately and the outside wall is connected by screw after being rotoblasted on the surface.
Hydraulic Cutting
1) Adopts post cutting, Stop to cut;
2) The cutting blade material is Cr12 with quenched treatment.

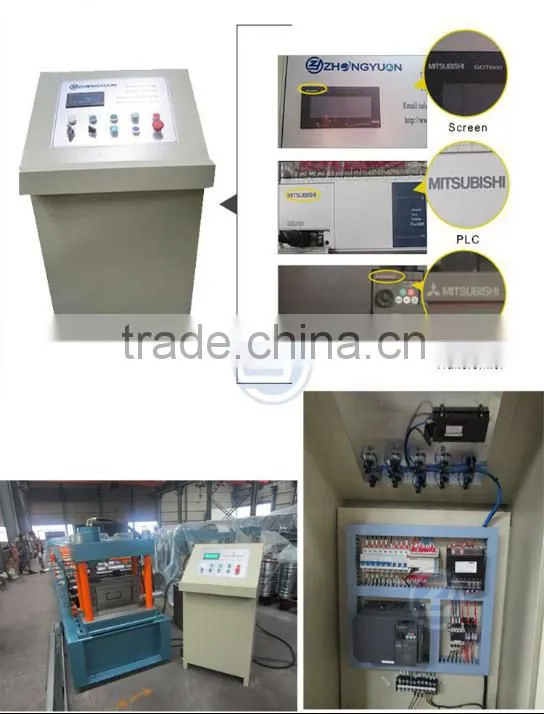

(5)PLC Control System:
1)This system uses Mitsubishi PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.

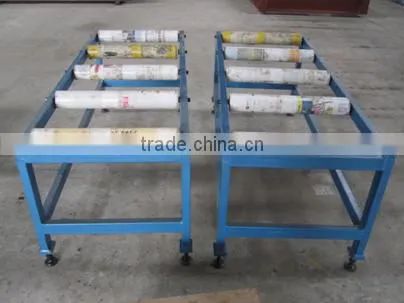

Product Rack
Two pieces, Each piece length is 1.5m, total length is 3 meters.
About us
We are professional in making roll forming machines since 2003.
Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines to process machine rollers.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. Over 15 years engineers to design and make your machines
We customize your machines!
To customize machine, we would love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend the lacol popular profile for you----Just let us know your country!
How is our cooperation process?
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers.
