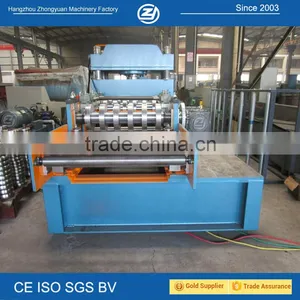

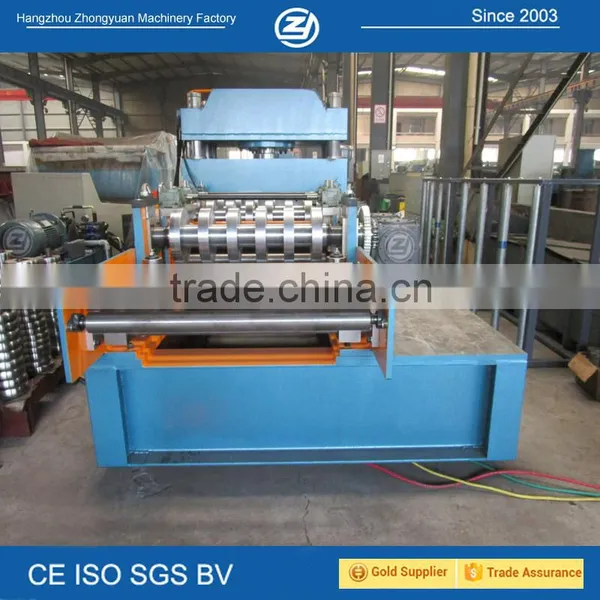

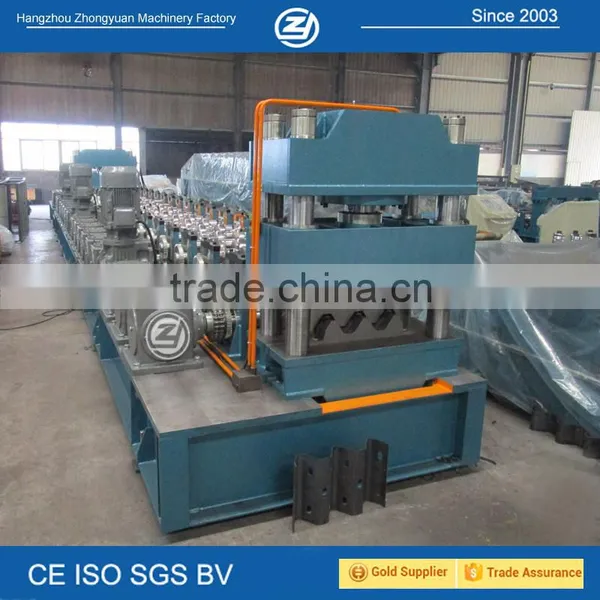

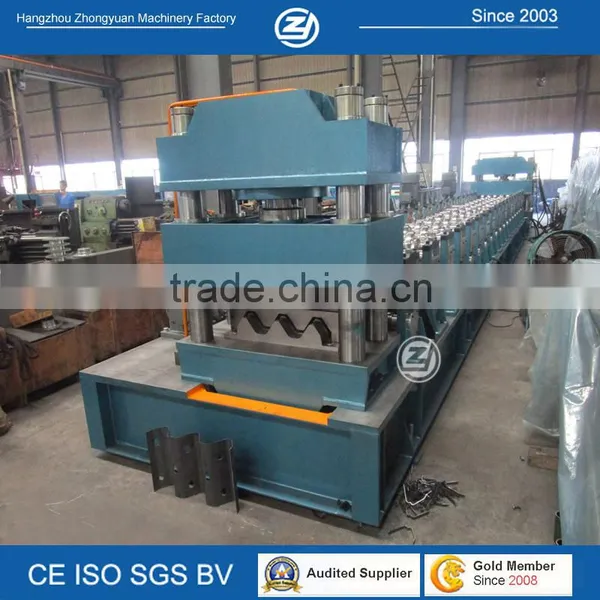

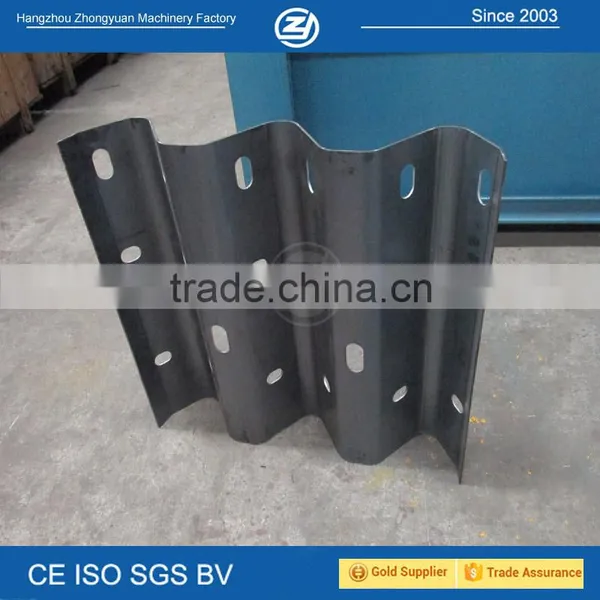

Expressway Guardrail/Fence Metal Roll Forming Machine
Why choose this machine?
| Iterm | Specification | ||
| Type | galvanized steel sheet | ||
| Material | Thickness(mm) | 2.0-3.2 | |
| Yield strength | Q235 or 34Ksi | ||

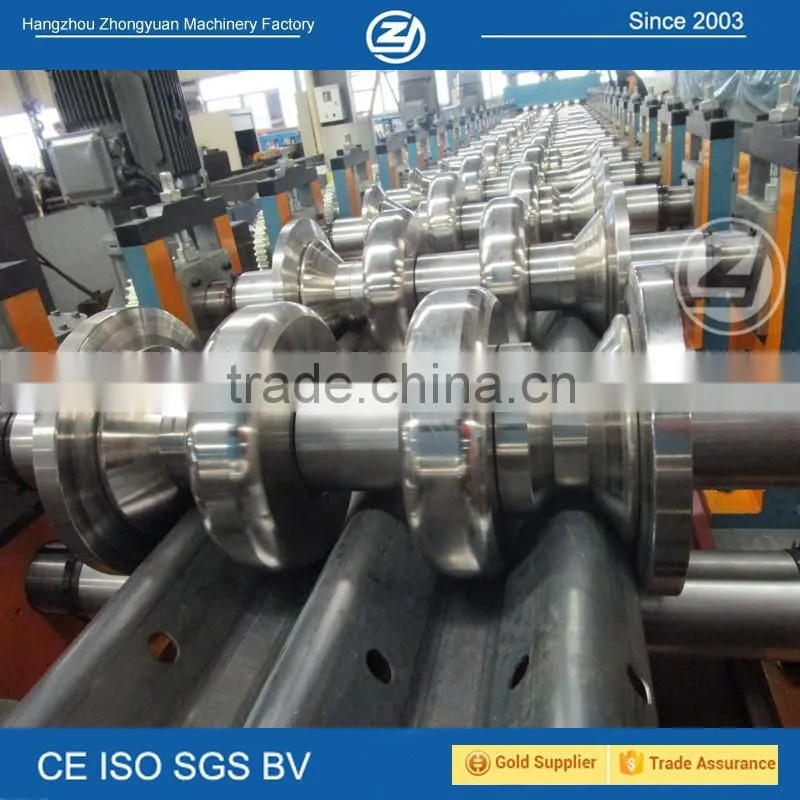

| Roller material | GCr15 bearing steel with quench treatment | ||
| Forming speed(m/min) | About 1500-2000mm/min or 4-5m/min. For option | ||
| Step distance | Adjustable according to requirement (>=250mm) | ||
| Speed adjusting mode | AC Frequency | ||
| Roller drive | Decelerating motor + Chain drive | ||
| Type of cutting | after roll-formed and length-set cutting | ||
| Cutter material | Cr12 mold steel quench treatment | ||
| Length measurement | Encoder | ||
| Control mode | Mitsubishi PLC | ||
| Operating mode | Button + Mitsubishi Touch screen | ||
| Main motor power(kw) | 15KW *3 (Depend on final design) | ||
| Hydraulic station power | 11K W (Depend on final design) | ||
| Total power(kw) | 56KW (Depend on final design) | ||
| Uncoiler's loading capacity |
Max. Capacity: 5000kgs (can be increased to be 10T) |
||
| Machine`s size | About 15.5*1.8*1.9m (Depend on final design) | ||
| Machine weight | About 32000kgs | ||
| Components of machine: | |||
| Decoiler | 1set | ||
| Feeding & guiding device | 1set | ||
| Punching device | 1set | ||
| Main roll forming machine | 1set | ||
| Hydraulic station | 1set | ||
| Controlling system | 1set | ||

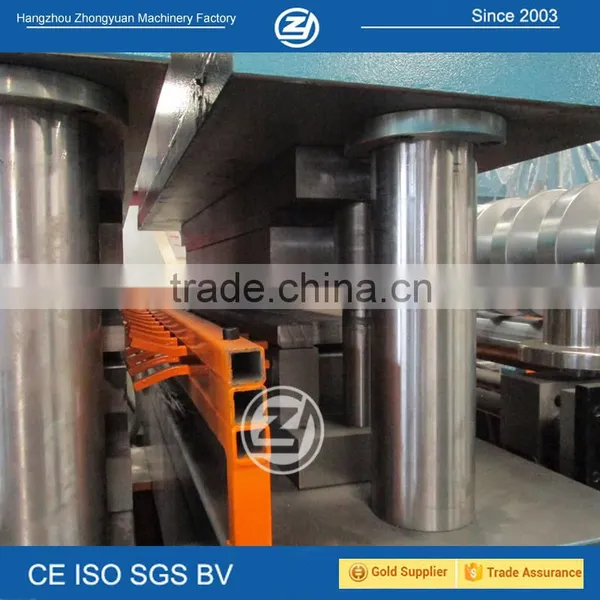

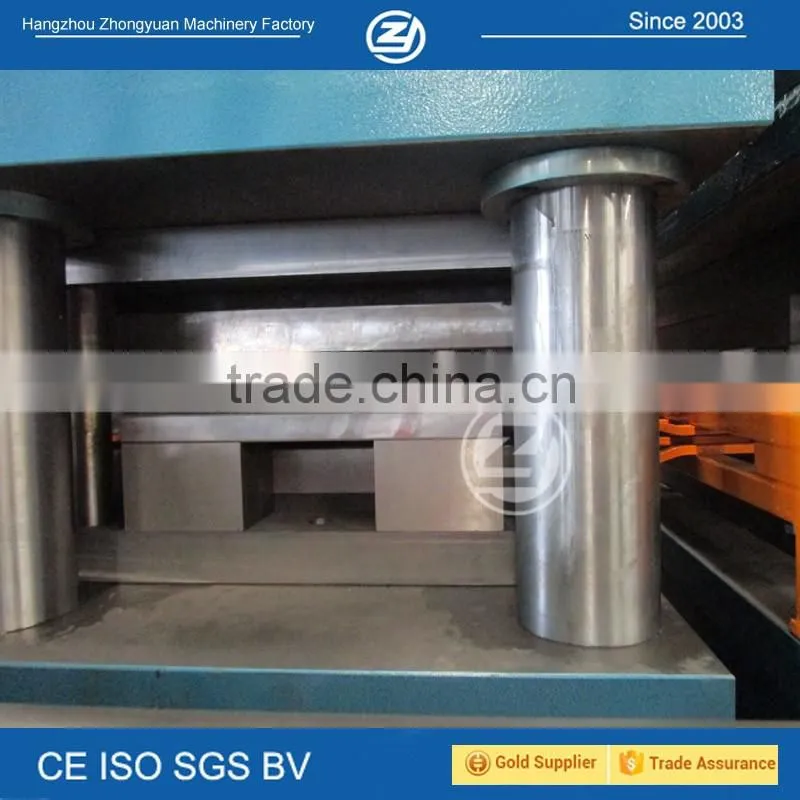

| Cutting device | 1set | ||
| Run out table | 1set | ||
| Process flow: | |||
Decoiler -- Feeding & Guiding --Punching-- Roll Forming--Hydraulic Cutting – Product to Run Out Table | |||
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We joined Alibaba trade assurance. With Trade Assurance, you’re covered for On-time shipment and Pre-shipment product quality (Optional).
8) Q: What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
9) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
10)Q: How is your cooperate process?
A: Below is the cooperation flow chart
