Specifications
concrete cement brick making machine1.ISO9001:2008 & CE
2.multi-purpose design
3.Adopt full program
4.PLC control
hot selling concrete cement brick making machine south africa with good feedback and high quallity

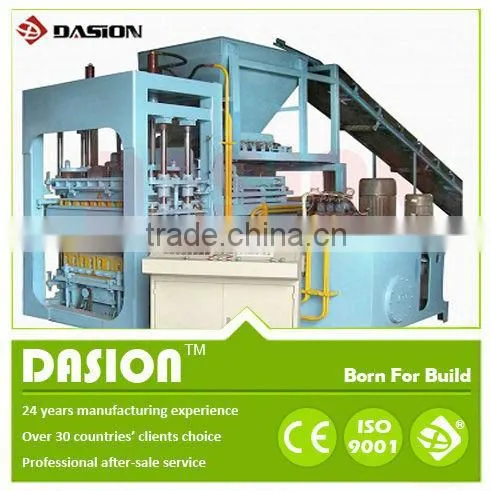

1. DS6-15 Block Machine
Adopt Germany, Italy, Japan technology to manufacturing;
Compatible with the road blocks, road-side bricks and river bricks;
Adopt sub-storage device to overcome the liquefaction of concrete defects in advanc
The whole set of machine can be operated automatically.
1. Adopt Germany, Italy, Japan technology to manufacturing;
2. Compatible with the road blocks, road-side bricks and river bricks;
3. Adopt sub-storage device to overcome the liquefaction of concrete defects in advance;
4. The whole set of machine can be operated automatically.
5. Adopt four-oriented approach to insure the pressure head and mold box move exactly with good stability, and wide fixed mold plate for mold box, with the replacement of various models of multi-purpose tool of a machine to meet the various needs.
6. The host machine adopt hydraulic rotational molding and vibration compression molding. Molding cycle takes 15 - 18 seconds to leave the floor for forming health, and spend a lot of floor investment.
7. Forced feeding, the traditional feeding method is difficult to feed materials evenly to mold box, DS6-15 box-type machine equipped with a multi-fabric mixing fork, mold box to the top of mixing fork work on mandatory feed box.
2.Main technical parameters of DS6-15 hydraulic block machine:
Parameter Name |
Parameter values |
|
The largest machine dimensions |
6600×1990×3000(L×W×H)(mm) |
|
Rated pressure of hydraulic system |
21Mpa |
|
Main vibration form |
All vibration molded desk |
|
Vibration frequency |
50~70Hz |
|
Vibration acceleration |
10-15g |
|
To adapt to the high brick |
50-200mm |
|
Pallet size |
Wooden |
830×660×(40±1)(mm) |
Iron |
830×660×(8-10±1)(mm) |
|
Bamboo |
830×660×(15-20)(mm) |
|
Molding cycle |
15-18 seconds 20-23 seconds to be added fabrics |
|
Production |
Standard block(240×115×53mm) |
57,600 Pieces/ 8 hours |
Feeder capacity |
Effective storage volume of 0.45m3 hopper |
|
|
Effective volume of 0.15m3 car charging |
|
Machine power |
36.8kw |
|
Machine weight |
10.5T |
|
Brick shaped mold can be produced according to user needs. | ||
3.Main product specifications and production of each plate:
Model |
Block Specifications (mm) |
Forming number |
Molding cycle |
Capacity (pcs) |
DS6-15 |
390×190×190 (brick) |
6 |
15 |
11520 |
240×115×90 (brick) |
15 |
15 |
28800 |
|
240×115×53 (standard brick) |
30 |
15 |
57600 |
|
·This series of 150-650 tons of products with different specifications. Brick shaped mold can be produced according to user needs. | ||||
Production conditions: | ||
Production sites |
Venues |
8-10 acres |
Operate camp |
60 |
|
Raw space |
300 |
|
Office space |
30 |
|
Other conditions |
Staff |
8-10 people |
Distribution |
40kw |
|
Water |
10T/day |
|
4.DS series brick making machine brief introduction as following:
Model |
Block Specifications(mm) |
Forming Number (brick) |
Molding Cycle (seconds) |
Capacity (pcs) (8 hours) |
DS4-35 |
390 × 190 × 190 (hollow brick) |
4 |
35-40 |
3000-3290 |
|
240 × 115 × 90 (porous brick) |
9 |
35-40 |
7000-7400 |
|
240 × 115 × 53 (standard brick) |
21 |
35-40 |
15000-17200 |
|
Bamboo pallet size: 920 × 570 × 20mm Host power: 25.5KW Machine size: 6650 × 1500 × 2650(L×W×H)mm Total weight: 4.5T |
|||
DS4-15 |
390 × 190 × 190 (hollow brick) |
4 |
20-25 |
4608-5760 |
|
240 × 115 × 90 (porous brick) |
13 |
20-25 |
14950-18720 |
|
240 × 115 × 53 (standard brick) |
26 |
20-25 |
29900-37440 |
|
Bamboo pallet size: 920 × 570 × 20mm Host power: 25.5KW Machine size: 6650 × 1500 × 2650(L×W×H)mm Total weight: 8.5T |
|||
DS6-15 |
390 × 190 × 190 (hollow brick) |
6 |
15-25 |
7000-11520 |
|
240 × 115 × 90 (porous brick) |
12 |
15-25 |
14000-23040 |
|
240 × 115 × 53 (standard brick) |
30 |
15-25 |
34560-57600 |
|
Bamboo pallet size: 800 × 700 × 25mm Host power: 29.7KW |
|||
|
Machine size: 8800 × 1600 × 2750(L×W×H)mm Total weight: 10.5T |
|||
DS8-15 |
390 × 190 × 190 (hollow brick) |
8 |
15-20 |
11520-15360 |
|
240 × 115 × 90 (porous brick) |
21 |
15-20 |
30240-40320 |
|
240 × 115 × 53 (standard brick) |
42 |
15-20 |
60480-80640 |
|
Bamboo pallet size: 920 × 850 × 40mm Host power: 36.8KW Machine size: 7200 × 2100 × 2825(L×W×H)mm Total weight: 11.8T |
|||
DS10-15 |
390 × 190 × 190 (hollow brick) |
10 |
15-20 |
14400-19200 |
|
240 × 115 × 90 (porous brick) |
24 |
15-20 |
34560-46080 |
|
240 × 115 × 53 (standard brick) |
51 |
15-20 |
73440-97920 |
|
Bamboo pallet size: 1070 × 840 × 40mm Host power: 36.8KW Machine size: 7200 × 2290 × 3100(L×W×H)mm Total weight: 14.8T |
|||
