Specifications
hollow brick making machinery:chanical transmission
2.Multi-purpose design
3.double-vertical pressurizing vibrating
Advanced Quality hollow brick making machinery DS4-35 Block Machine Israel

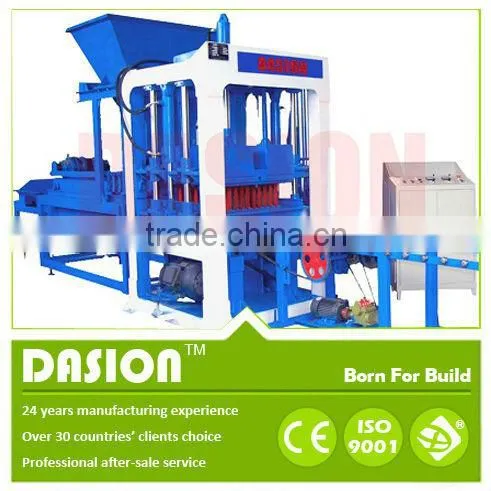

1. Brief Description of DS4-35 Concrete Block Making Machine
DS4-35 concrete block making machine unify mechanical, electrical, hydraulic technology, and adopt superior electric and hydraulic components, to ensure each cyclic process accurate alignment when equipment running. The combination property is reliable and steady, operation is safe and simple.
DS4-35 concrete brick making machine can use cement, fly-ash, cinder, stone powder, river sand, building waste as material to form various of bricks, such as standard brick, perforated brick, hollow brick, curb, paver brick, etc. Meanwhile, we can design dysmorphism and non-standard moulds regarding to clients’ request.
2. Technical features and Benefit of DS4-35 Concrete Block Making Machine
1. Tight-fixed in designing, stable in function, convenient in maintaining, high in automation, high output in making blocks, fewer in occupying the space and competitive in price based on quality; on this machine, automatically feeding block, feeding material and material arranging is the base for high production efficiency and stable quality.

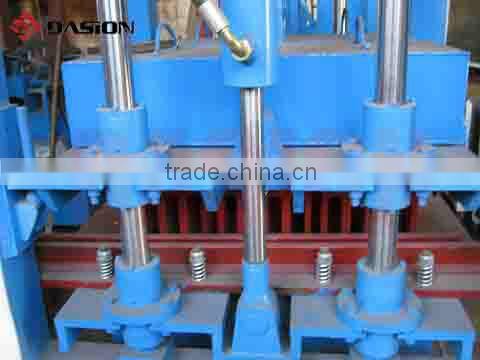

2. Vibration system is perfect in designing and high in efficiency. Compressing and vibration are combined to guarantee the density of the products.
3. Horizontal and vertical structure is optional for customers to choose. Horizontal structure is facilitating to feed the surface material, which can produce the colorful road surface blocks; which vertical structure can save the pallets conveying time, which fast the block feeding.

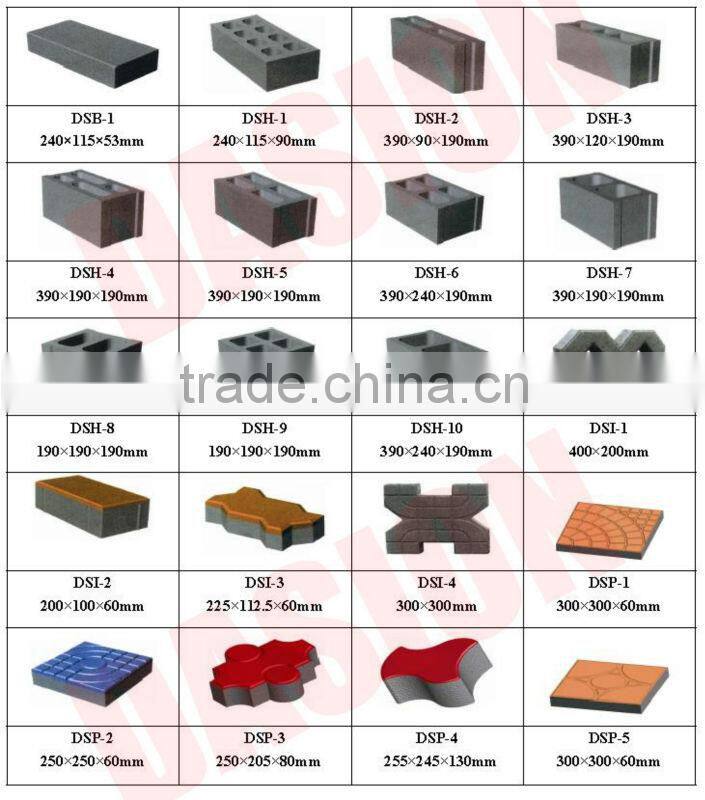

4. This machine is widely used, which can produce standard block, hollow block, road surface block and so on.
3. Main technical parameters of DS4-35 Brick Making Machine:
Block specifications(mm) |
Number per Pallet (Block) |
Molding cycle (seconds) |
Block/8 hours |
390 × 190 × 190 (hollow brick) |
4 |
35 |
3290 |
240 × 115 × 90 (porous brick) |
12 |
35 |
9870 |
240 × 115 × 53 (standard brick) |
24 |
35 |
19740 |
Brick shaped mold can be produced according to user needs. Bamboo Pallet size: 850 × 580 × (20~30)mm, machine power: 20KW | |||
4. Working principle of DS4-35 Brick Making Machine:

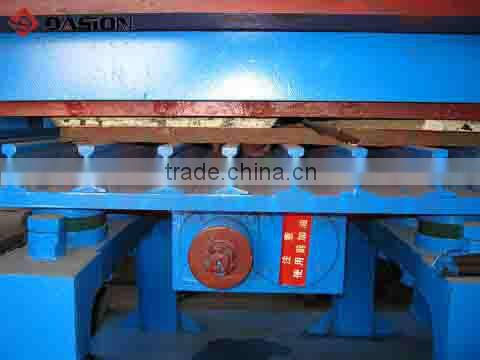

l Principle of vibratory compaction:
The material grain, under the function of excitation force, will take Intense exercise on the direction of vibration. This kind of exercise will fill up the gap among the different material.
l Principle of hydraulic system:
The system will converts the electric energy into hydraulic energy, the various component of hydraulic system will drive the material feeding device and main piston to move up and down, back and forth. That will press the material inside of the mould into green-brick. Then the dome brick device will push the green-brick on the pallet.
l To produce concrete bricks, that need adopt advanced scientific formula and equipment process strengthening treatment for granularity, temperature and mixing degree, so that the material achieve the best state for forming. After high-pressure forming, the green-brick will hardening rapidly. The more time, the better for solid. The bricks have good commodity. When building a wall, that’s no need to be socked, and the appearance is neat.
5. Our Advantages:
1) Trade directly with factory who has over 20 years' history.
2) Professional team , Perfect quality , Perfect service idea
3) Competitive price
4) Considerate after-sale Service
5) CE & ISO9001:2000
