China Roof Tile Making Steel Panel Roll Former
- Shanghai China
- T/T
You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |

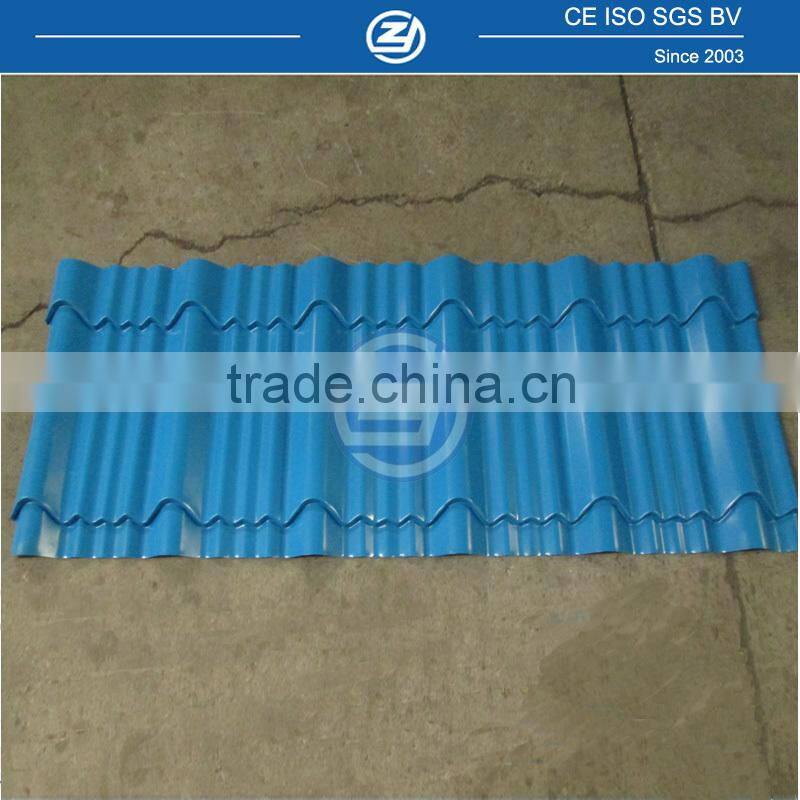

| Tile Type | Colored Glaze Steel | Use | Roof | |
| Production Capacity | 3m/min | Place of Origin | Zhejiang, China | |
| Brand Name | Zhongyuan | Model Number | ZYYX series | |
| Power(W) | total 11kw | Voltage | 380v/3phase/50hz | |
| Dimension(L*W*H) | 9m x 1.7m x 1.4m | Weight | 9500kgs | |
| Certification | ISO, CE | Warranty | 1 year (excluding wearing parts)) | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
China Roof Tile Making Steel Panel Roll Former
Certificate: ISO, CE,
Lifetime services
Control system: Mitsubishi PLC with touch screen.
Product cut-to-length.
Engineer overseas installing and training available
15 years skillful engneers to design and make your machines
1.Technical parameter:
Item | Specification | |
Material | Type | Pre-painted steel coil & galvanized coils |
Thickness | 0.4-0.6mm | |
Yield strength | 235-345Mpa | |

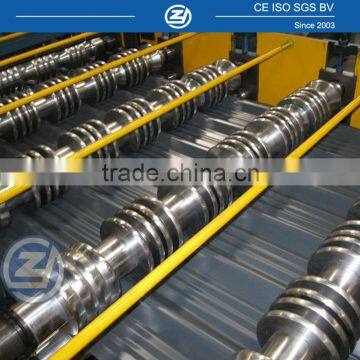

Roller material | 45#Chrome steel | |
Forming speed | About 15-20m/min | |
Output speed | 3m/min | |
Speed adjusting mode | AC Frequency | |
Roller drive | Decelerating motor + Chain drive | |
Cutting mode | Hydraulic cutting | |
Cutter material | Cr12 mould steel | |
Length measurement | Encoder | |
Control mode | Mitsubishi PLC | |
Operating mode | Button + Mitsubishi Touch screen | |
Main motor power | 5.5KW | |
Total power | 11KW | |
2. Components of machine:
Decoiler | 1set |
Feeding & guiding device | 1set |

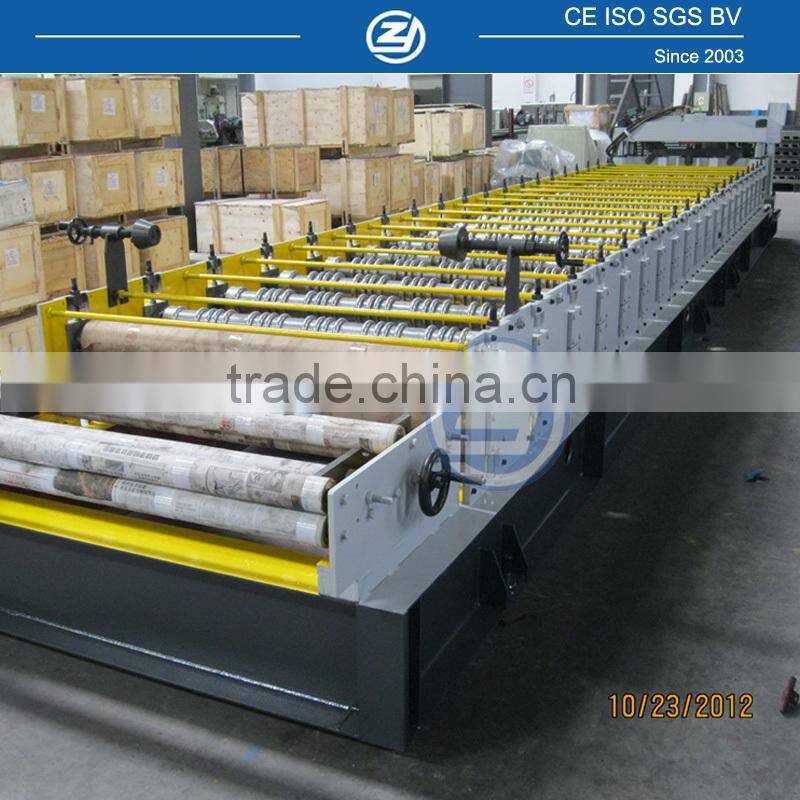

Main roll forming machine | 1set |

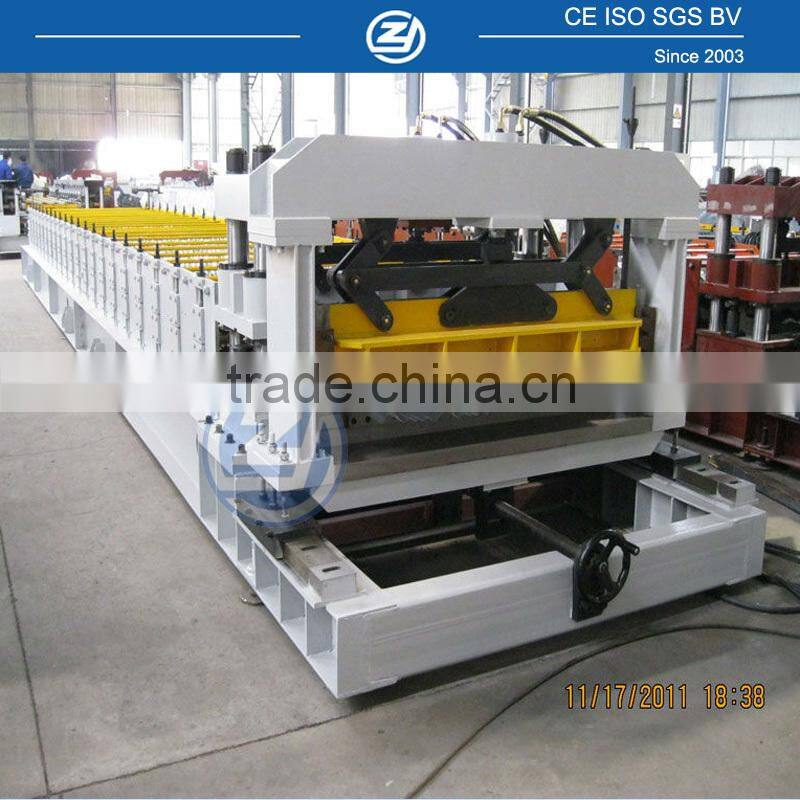

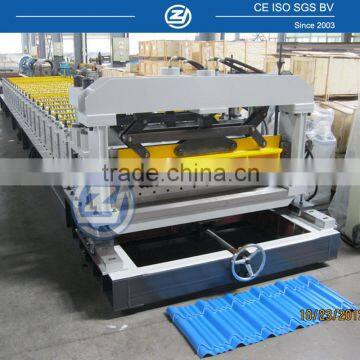

Hydraulic pressing system | 1set |
Hydraulic cutting system | 1set |
Controlling system | 1set |
Run out table | 1set |
3.Process flow:
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic pressing ---Hydraulic Cutting – product to run out table
China Roof Tile Making Steel Panel Roll Former

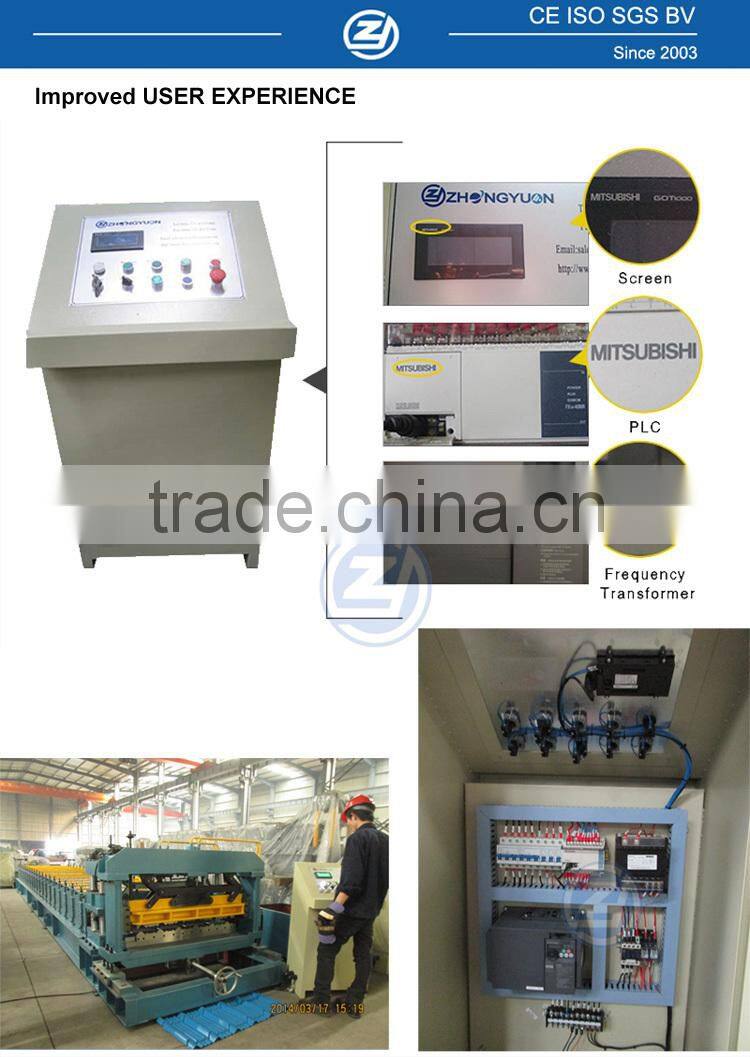

Improved USER EXPERIENCE
We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!


About us
We are professional in making roll forming machines since 2003.
Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines to process machine rollers.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. Over 15 years engineers to design and make your machines.

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
9) How is your cooperate process?
A: Below is the cooperation flow chart
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design support by our 15 year experience technicians FOR FREE!
