Roof Tile Making Machine
- 10 Set / Sets per Month
- Ningbo/Shanghai
- T/T
Product Details
Condition: | New | Type: | Tile Forming Machine | Tile Type: | Steel |
Use: | Roof | Production Capacity: | about 2m/min | Place of Origin: | Zhejiang, China |
Brand Name: | Zhongyuan | Model Number: | 950mm | Power(W): | 11kw (main motor + hydraulic station motor) |
Voltage: | as per buyer's requirement | Dimension(L*W*H): | 11M x 1.7M x 1.5M | Weight: | 9000KGS |
Certification: | CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

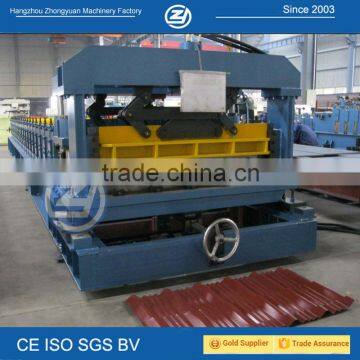

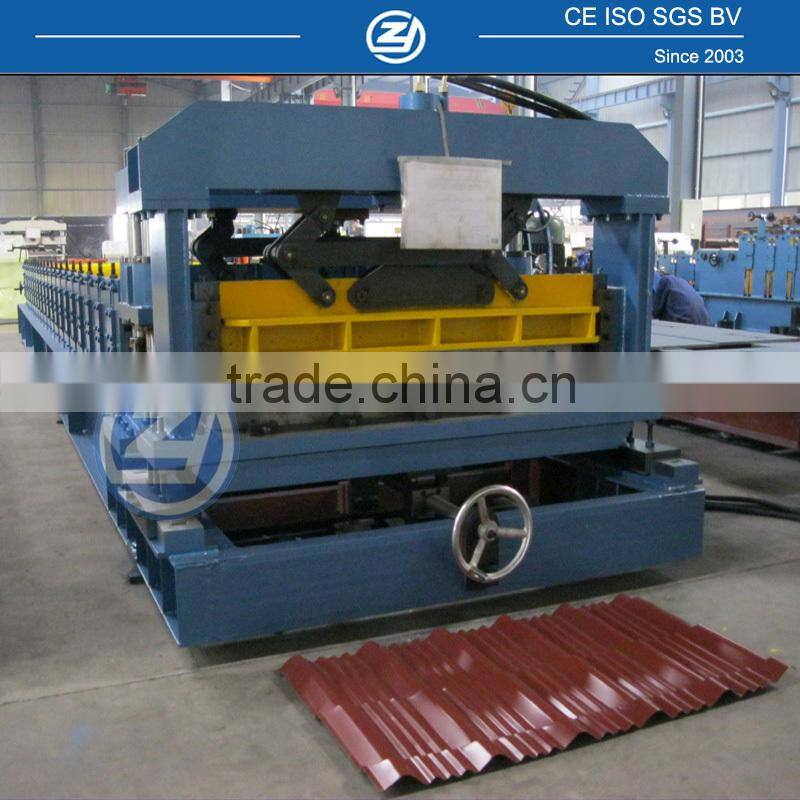

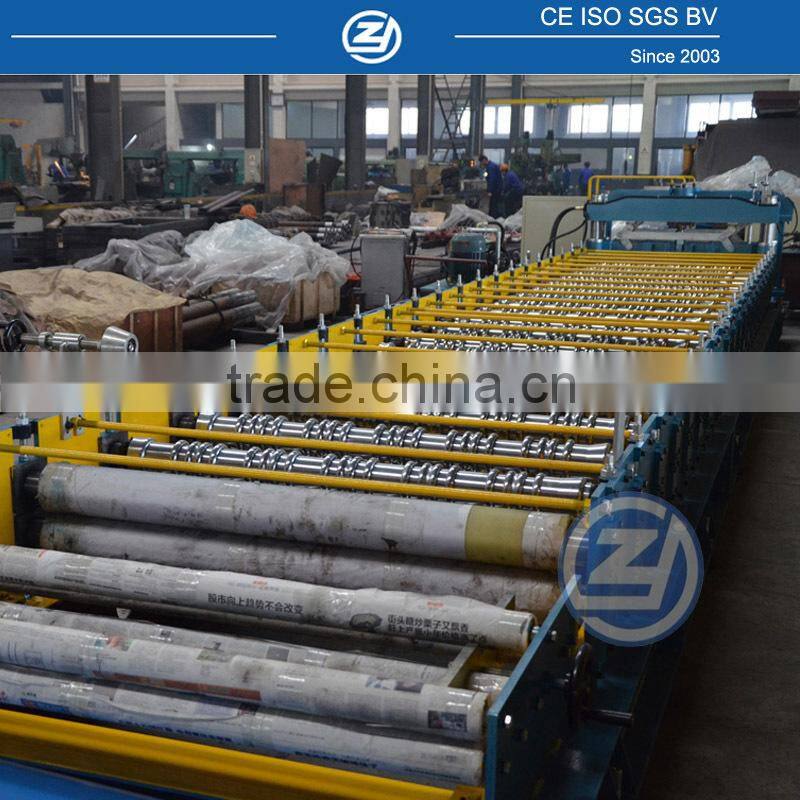

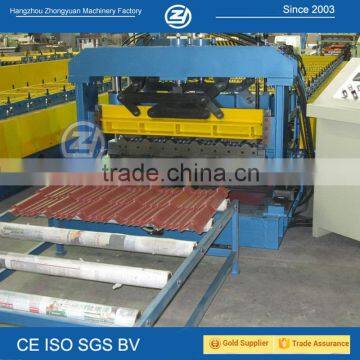

Roof Tile Making Machine
Roof Tile Making Machine
Forming detail
1.Certificate: ISO 9001, CE,
2. Lifetime services

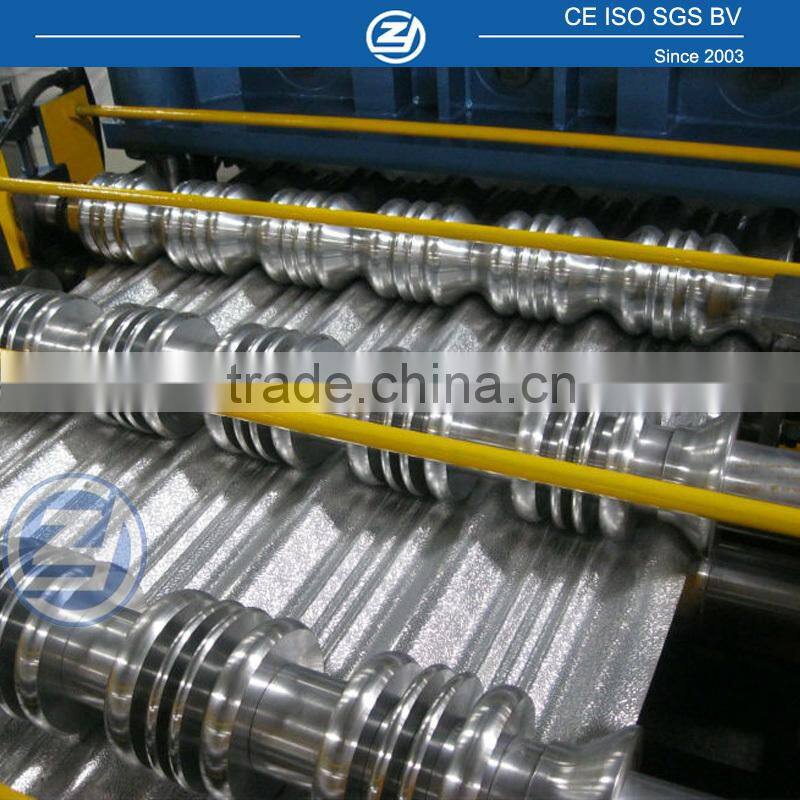

3. Roller cover with 0.05mm chrome; 72mm diameter solid steel shaft. Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
1.Technical parameter of Roof Tile Making Machine :
Item | Specification | |
Material | Type | Pre-painted steel coil & galvanized coils |
Thickness | 0.4-0.6mm | |
Yield strength | 235-345Mpa | |
Roller material | 45#Chrome steel | |
Forming speed | About 15-20m/min | |
Output speed | 2-3m/min | |
Speed adjusting mode | AC Frequency | |
Roller drive | Decelerating motor + Chain drive | |
Cutting mode | Hydraulic cutting | |
Cutter material | Cr12 mould steel | |
Length measurement | Encoder | |
Control mode | Mitsubishi PLC | |
Operating mode | Button + Mitsubishi Touch screen | |
Main motor power | 5.5KW | |
Total power | 11KW |
2. Components of Roof Tile Making Machine :
Decoiler | 1set |
Feeding & guiding device | 1set |
Main roll forming machine | 1set |
Hydraulic pressing system | 1set |
Hydraulic cutting system | 1set |
Controlling system | 1set |
Run out table | 1set |
3.Process flow of Roof Tile Making Machine:
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic pressing ---Hydraulic Cutting – product to run out table
About us
We are professional in making roll forming machines since 2003.
Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines to process machine rollers.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. Over 15 years engineers to design and make your machines.
Addictional information:
Production Capacity: | ||
Product Line Name | Production Line Capacity | Actual Units Produced(Previous Year) |
Metal Roll Forming Machine | 150 Sets per year | 130 Sets |
Production Machinery: | ||
Machine Name | Brand & Model No. | Quantity |
Sawing machine | GB4240x60, GZK4235 | 6 |
CNC manufacturing center | ETC3650, G-210 | 12 |
Horizontal lathe | CW6180B | 14 |
Milling machine | XT700D | 14 |
Milling planer | BXM20 | 4 |
Shaving machine | B665, B690 | 3 |
Drilling machine | Z3050x16/1 | 3 |
Grinding machine | ME1332A, M7160x20 | 7 |
Testing Machinery: | |
Machine Name | Quantity |
Caliper | 20 |
Micrometer | 15 |
Depth ruler | 8 |
Angle ruler | 6 |
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

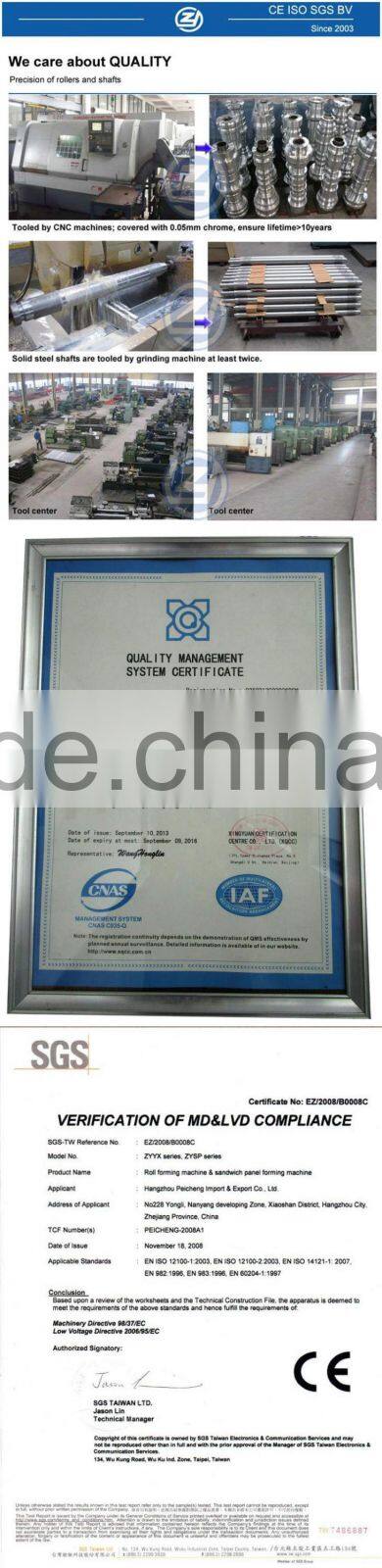

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have this roof tile making machine in stock?
A: No, machine is made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
9) How is your cooperate process?
A: Below is the cooperation flow chart
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
