Specifications
1, sleeve labeling machine2, 9000 BPH
3, automatic controlling system
4, good quality stainless steel made

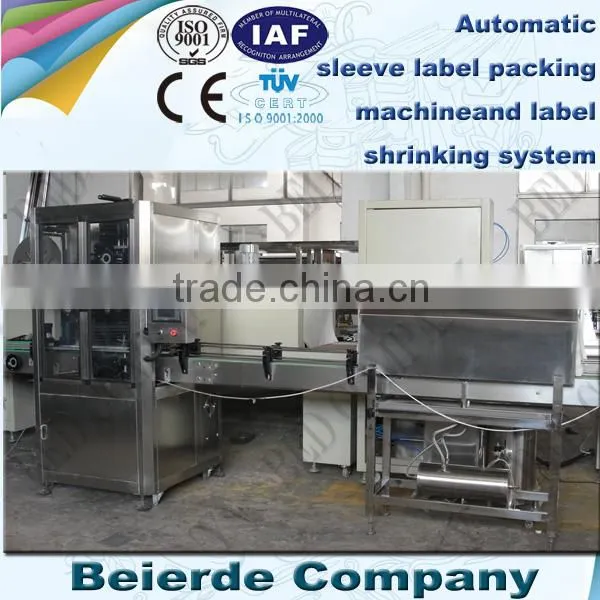

This series automatic sleeve labeling machine is normally used in the food, beverage processing industry. It can be designed and made according to the different bottle shape and size.
It adopts international advanced technology and using experience, integrated the automatic sleeve labeler and shrink labeler into one unit.

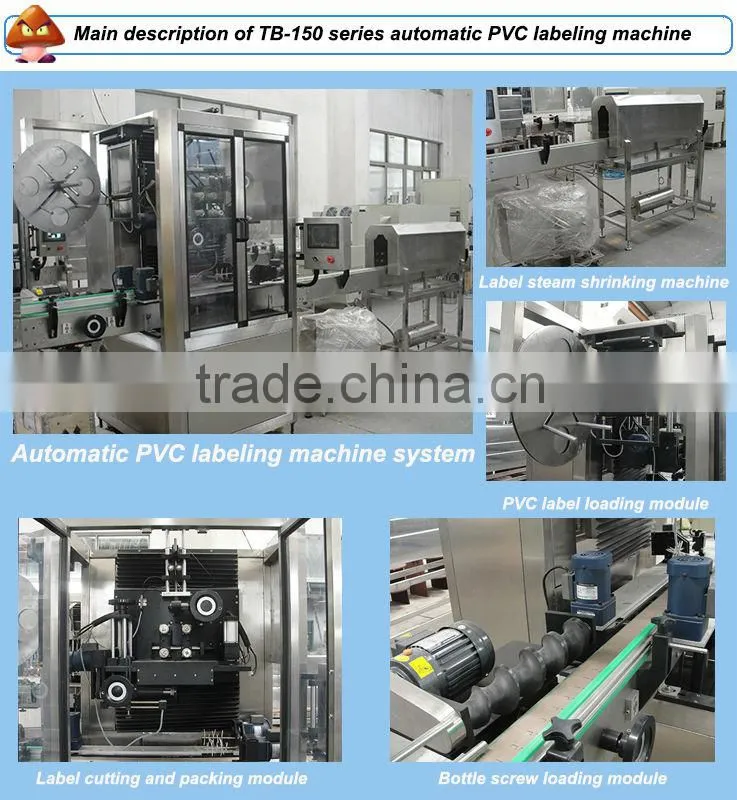

Main characters of equipment:
1, Machine’s frame is made by good quality stainless steel.
2, Nice man-machine interface operating system makes easy operation.
3, This machine can work together with the whole drink or food processing line. The working speed can be adjusted according the whole line.
4. Unique knife plate design makes changing label more easily.
5, Rotary type label loading system makes label conveying more smoothly.
Model |
TBJ-150 |
Capacity |
0-150 bottles per minute |
Applicable diameter of bottle body |
Φ28mm-125mm |
Applicable length of label |
30mm-250mm |
Applicable thickness of label |
0.03mm-0.13mm |
Applicable internal diameter of label roll |
5"~10"(adjustable) |
Suitable label material |
PVC~ PET~OPS |
Output Power |
0.25 kw |
Main machine dimension |
2,000×850×2,000 mm |
Total weight |
2000Kg |

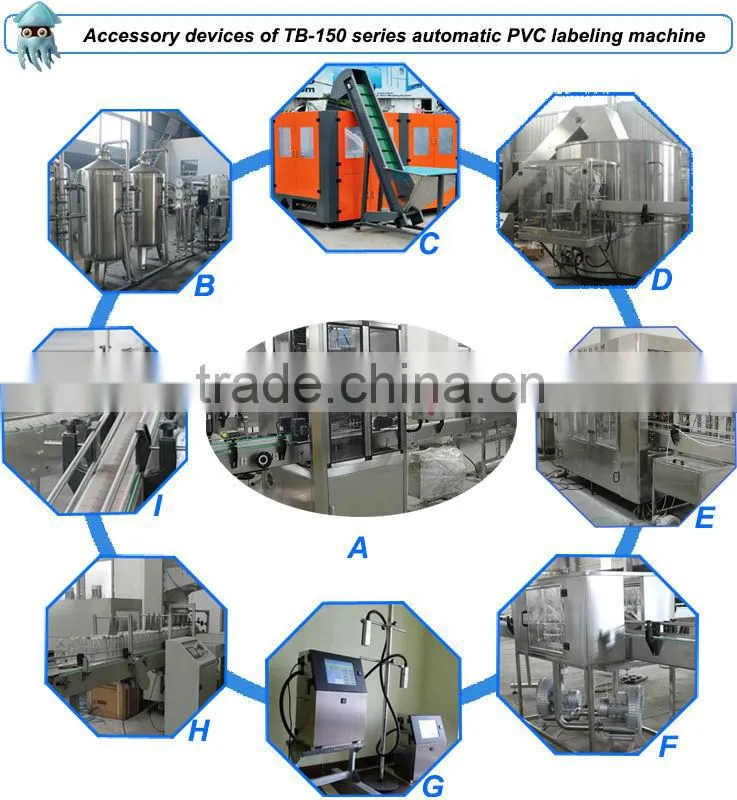

A: TB series automatic labeling machine
B: Water treatment system
C: PET bottle blowing machine system
D: Automatic bottle unscrambler
E: Automatic bottled beverage filling 3-in-1 machine
F: Automatic bottle body dryer
G: Automatic date printer
H: Automatic PE film bottle packing machine
I: Filled bottle conveying system
Model |
TB-250 |
TB-200 |
TB-350 |
Power |
3 kw |
1.5 kw |
3 kw |
Voltage |
3 phases ,380/220VAC |
||
Capacity |
250 BPM |
100-200 BPM |
350 BPM |
Main machine size (MM) |
L2100 W850 H2000 |
L2500 W900 H2100 |
L2100 W1100 H2000 |
Bottle diameter |
Φ28mm-Φ125mm |
||
Label thickness |
30mm-250mm |
||
Sleeve label diameter |
5-10 mu |
||
