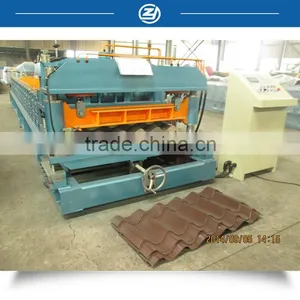

Help CenterTile Roll Forming Making Machine for Sale
Related Products
-
High Working Speed 6m / Mim Metal Roof Tile Making MachineUS$ 38,000 - 65,000MOQ: 1 Set -
Metal Roof Panel Bend Machine With ISOUS$ 36,000 - 66,000MOQ: 1 Set
-
Roofing Panel Bending EquipmentUS$ 40,000 - 60,000MOQ: 1 Set
-
Metal Tile Production LineUS$ 36,000 - 66,000MOQ: 1 Set
-
China Roof Tile Making Machine, Tile Roofing Forming MachineUS$ 35,000 - 60,000MOQ: 1 Set
Tile roll forming making machine for sale Tile roll forming making machine for sale
Why choose this machine?
1. Certificate: ISO 9001, CE,
2. Lifetime services
3. Roller cover with 0.05mm chrome; 72mm diameter solid steel shaft. Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Cr12 mould steel cutter with quenched treatment. Cutting blade with heat treatment.
7. Product cut-to-length.
8.Technician overseas installing and training available
Galvanized Metal Roll Forming Machine Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting – Product to Run Out Table

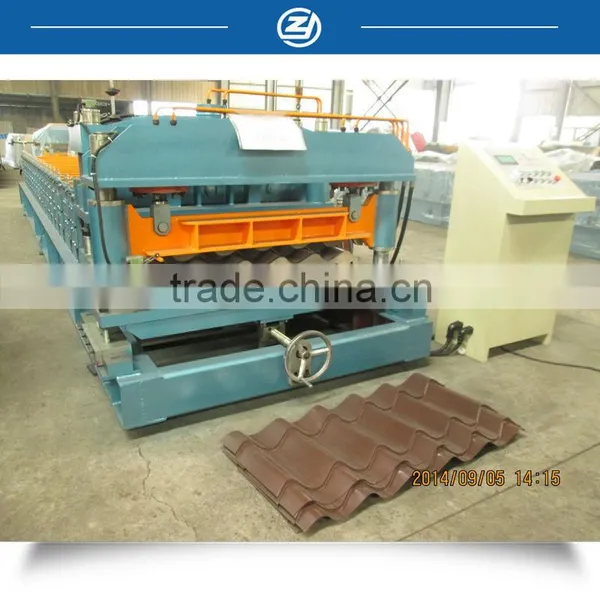

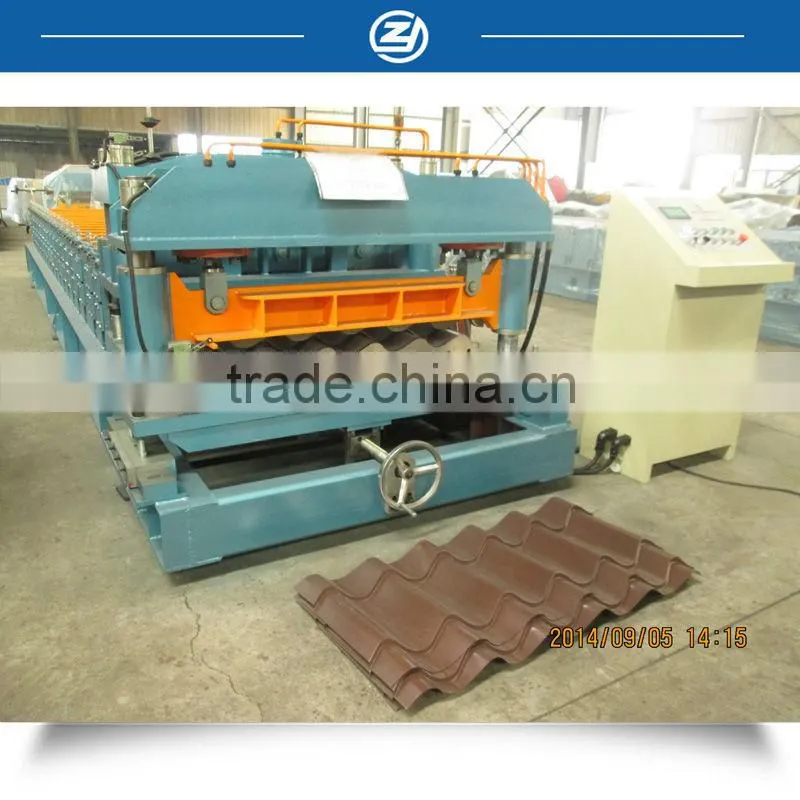

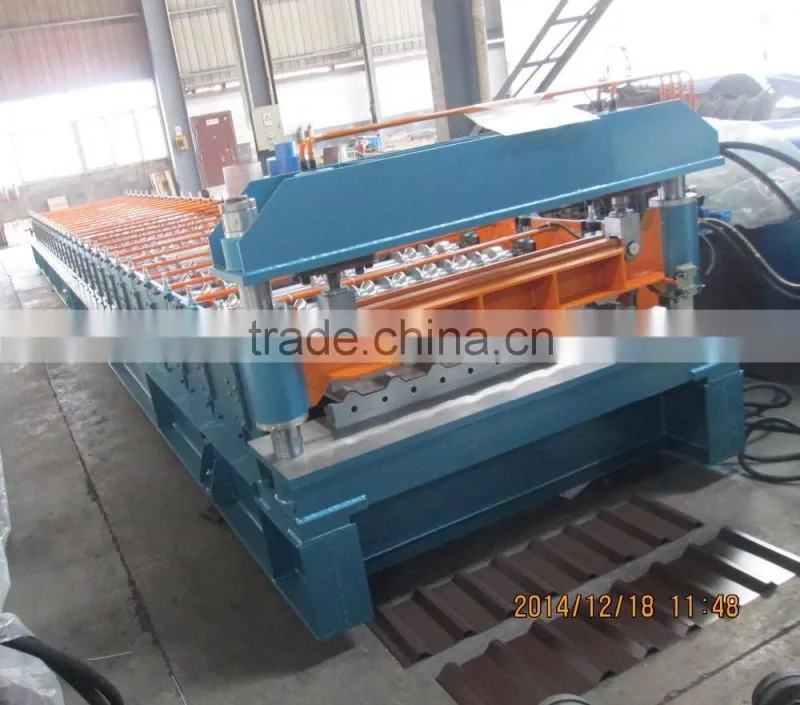

Tile roll forming making machine for sale
Overview of tile making machine
1. Technical parameter of Tile making Machine
Item |
Specification |
|
|
Material |
Type |
Glazed steel coil |
Thickness |
0.4-0.6mm |
|
Yield strength |
235-345Mpa |
|
Roller material |
45#Chrome steel |
|
Forming speed |
About 10m/min |
|
Working speed |
2-3m/min |
|
Speed adjusting mode |
AC Frequency |
|
Roller drive |
Decelerating motor + Chain drive |
|
Cutting mode |
Hydraulic cutting |
|
Cutter material |
Cr12 mould steel |
|
Length measurement |
Encoder |
|
Control mode |
Mitsubishi PLC |
|
Operating mode |
Button + Mitsubishi Touch screen |
|
Main motor |
7.5KW |
|
| Hydraulic Station motor | 5.5KW |
|
| Shafts for rollers | 72mm diameter solid steel |
|

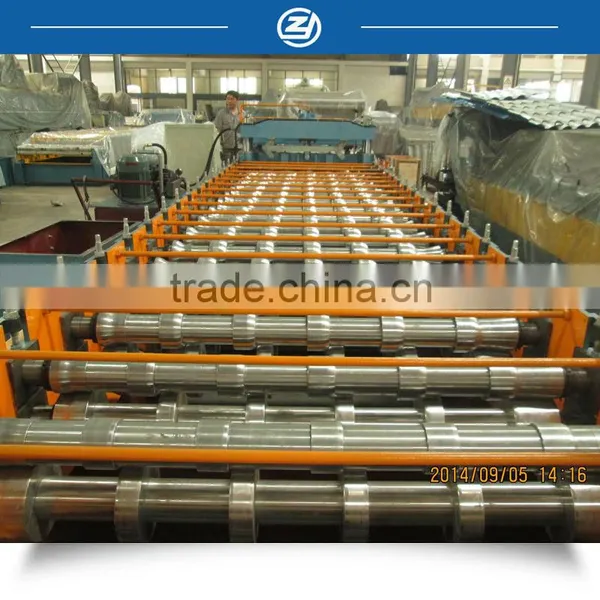

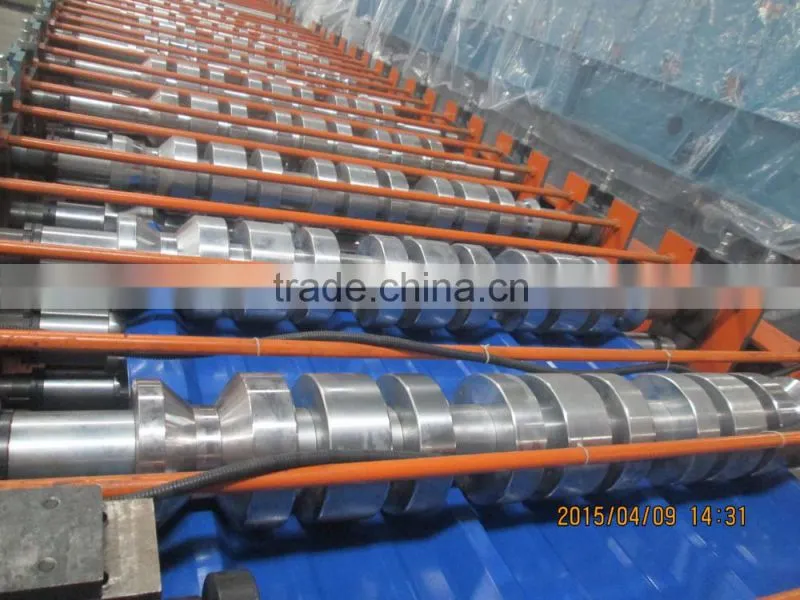

Machine details 1.
72mm diameter solid steel shaft.
Roller cover with 0.05mm chrome;
Lifetime>10years.
Machine details 2.
Hydraulic hose bear W.P 38mpA / B.P 112MPa.
Machine details 3.
4 emergency switches in front and back of machine.
Wire is Double protected.
Machine details 4
Wire is fixed tidiness
Machine details 5.
Gears with protector
Warnning lables on protector
Keys to fix gears and shafts
About us
We are professional in making roll forming machines since 2003.
Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines to process machine rollers.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. Over 15 years engineers to design and make your machines.
