Metal Roof Panel Bend Machine with ISO

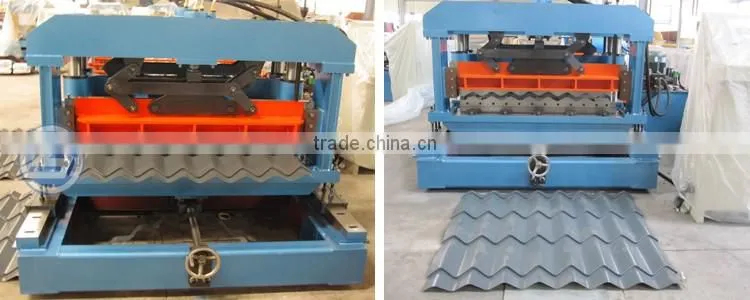

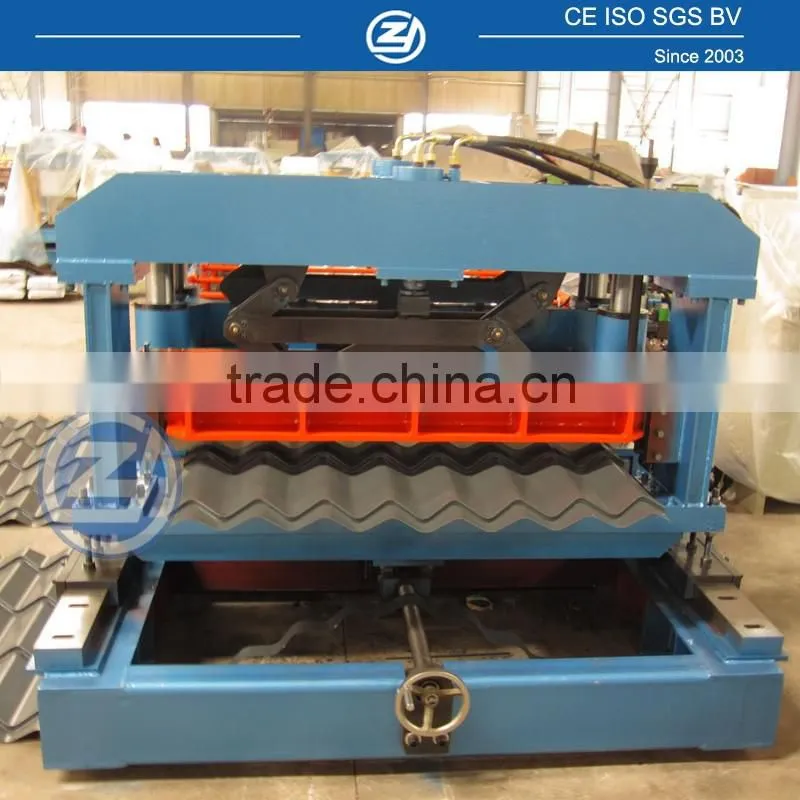

Machine overview
Machine details 1.
72mm diameter solid steel shaft. Roller cover with 0.05mm chrome; Lifetime>10years.
Machine details 2.
Hydraulic hose bear W.P 38mpA / B.P 112MPa.
Machine details 3.
4 emergency switches in front and back of machine.
Wire is Double protected.
Machine details 4
Wire is fixed tidiness
Machine details 5.
Gears with protector
Warnning lables on protector
Keys to fix gears and shafts
1. Technical Parameter:
Item |
Specification |
|
|
Material |
Type |
Pre-painted steel coil & galvanized coils |
Thickness |
0.4-0.6mm |
|
Yield strength |
235Mpa |
|
Roller material |
No.45 forged steel |
|
Forming speed |
About 10m/min |
|
Output speed |
0-3m/min |
|
Speed adjusting mode |
AC Frequency |
|
Roller drive |
Decelerating motor + Chain drive |
|
Cutting mode |
Hydraulic cutting |
|
Cutter material |
Cr12 mould steel |
|
Length measurement |
Encoder |
|
Control mode |
Mitsubishi PLC |
|
Operating mode |
Button + Mitsubishi Touch screen |
|
Main motor |
5.5KW |
|
Hydraulic station motor |
5.5KW |
|
2. Components
Decoiler |
1set |
Feeding & guiding device |
1set |
Main roll forming machine |
1set |
Hydraulic pressing system |
1set |
Hydraulic cutting system |
1set |
Controlling system |
1set |
Run out table |
1set |
About us
We are professional in making roll forming machines since 2003.
Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines to process machine rollers.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. Over 15 years engineers to design and make your machines.
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
