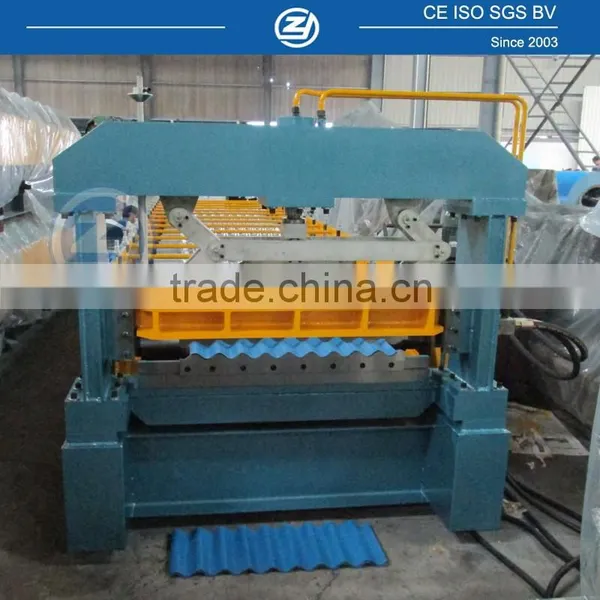

Roof Sheet Forming Machine
Certificate: ISO, CE,
Lifetime services
Control system: Mitsubishi PLC with touch screen.
Product cut-to-length.
Engineer overseas installing and training available
15 years skillful engneers to design and make your machines

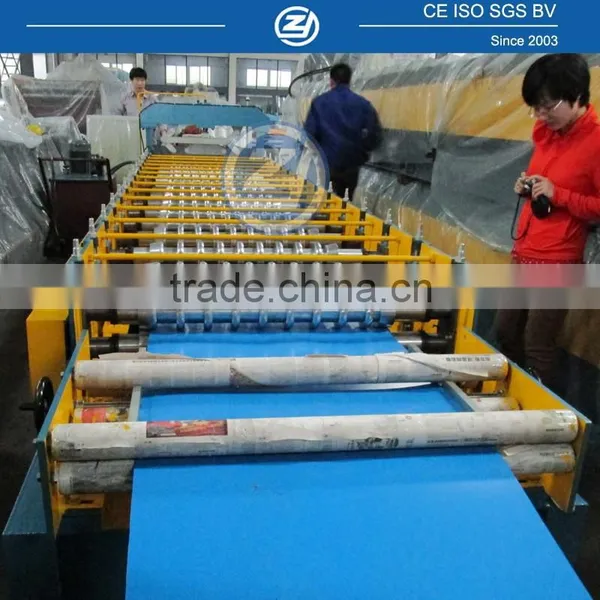

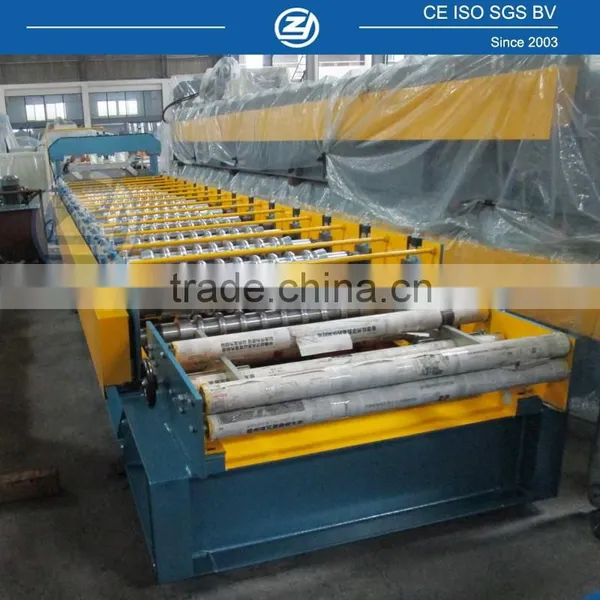

Machine detail show
| |
| Suitable material: glazed/ galvanize/ color coated steel | |
| Steel thickness: 0.3-0.8mm | |
| Steel yield strength: 235-345 Mpa | |
| Machine size: About 8*1.7*1.5m | |
| Machine weight: About 8.5 tons |
|
Manual decoiler Hydraulic uncoiler for option
|
| Loading capacity: 5ton (10ton for option) |
| Coil inner diameters: 508/610mm |
| Max coil width: 1250mm |
| Coil car: For option |
| Auto decoiler motor: 4kw*2 (for 5 ton) / 5.5kw*2 (for 10 ton) |
|
Feeding device Pre-cutter
|
| Level device: yes |
| Film cover device: for option |
| Pre-cutter: for option |
| Cutting blade material: Cr12 mould steel |
| Cutting blade process: heat treatment |

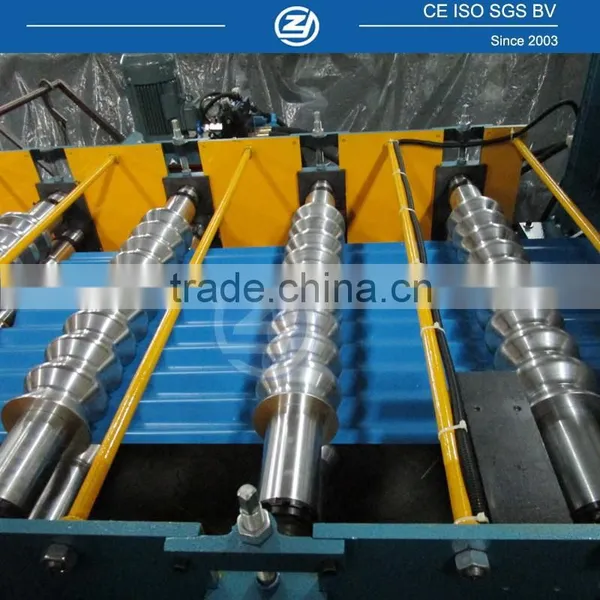

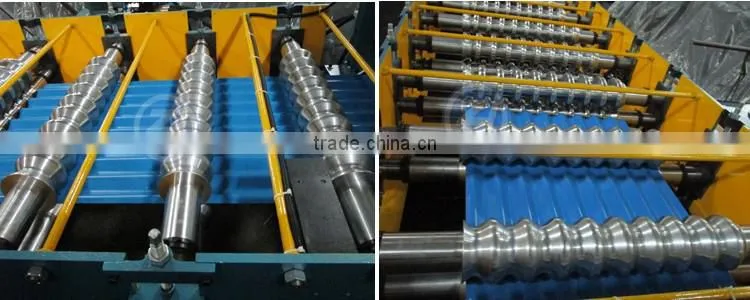

Rollers and shafts
| |
| Roller material: No. 45 forged solid steel; processed by CNC; plated with hard chrome | |
| Shafts material: No. 45 forged solid steel; tooled by grinding machine at least twice | |
| Shafts diameter: 72mm | |
| Transimission: By chain | |
| Main motor: 7.5 kw | |
| Forming speed: 20m/min | |
| Out put speed: 8-10 m/min | |
|

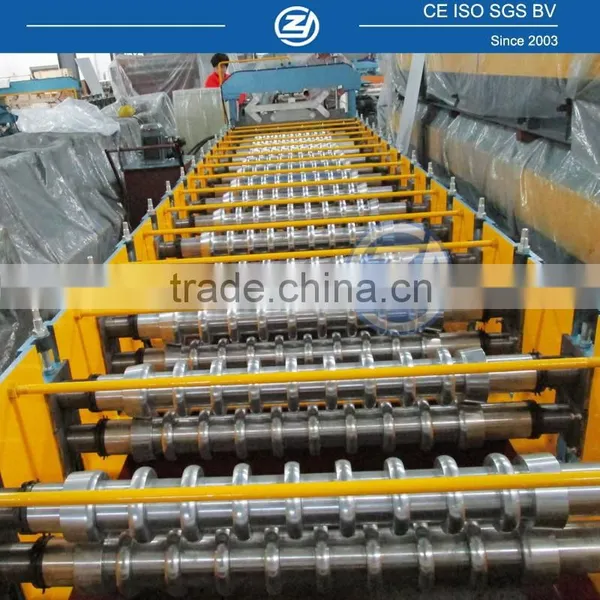

Forming system
|
|

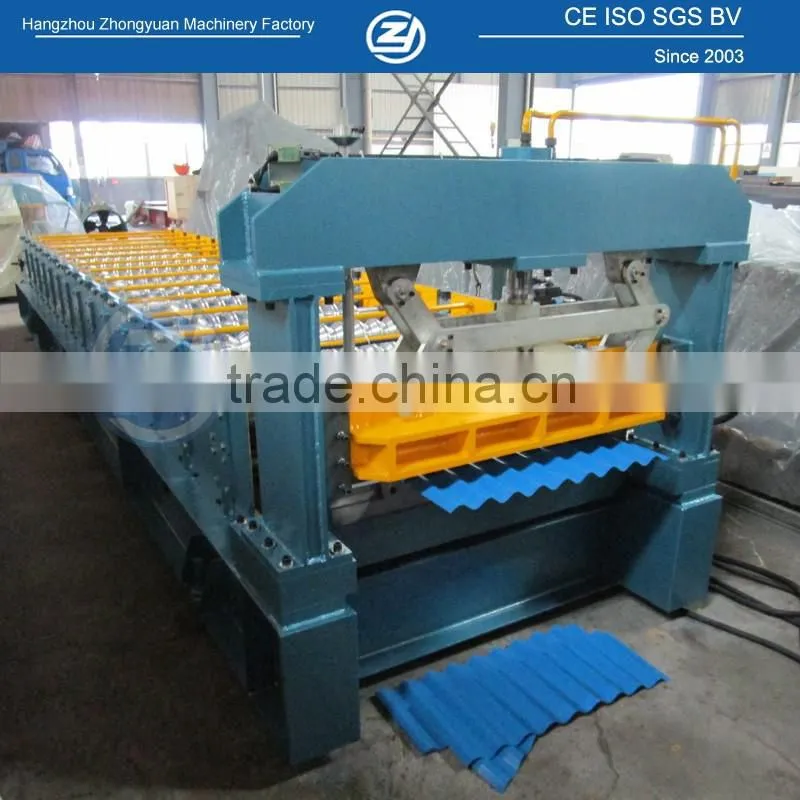

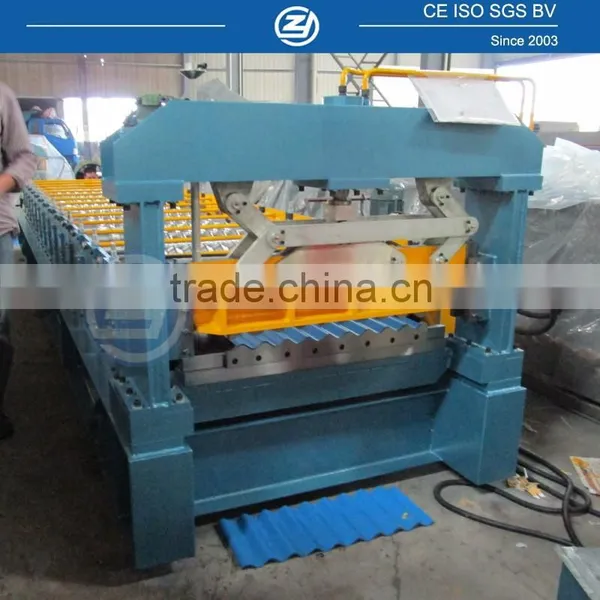

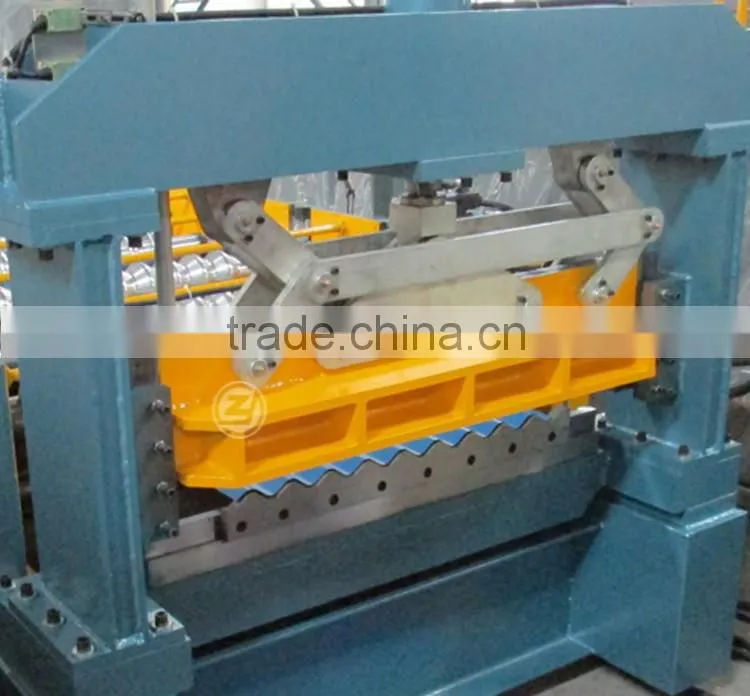

Cutter
| |
| Cutter material: Cr12 mould steel | |
| Cutting treatment: Heat treatment | |
| Cutting type: Auto cut to length | |
| Motor: 2.2kw |
Control system
|
| Converter: Mitsubishi from Japan |
| Touch screen: Mitsubishi from Japan |
| Language: English or as required |
Why choose this machine?
Machine details
4 emergency switches in front and back of machine.
Wire is Double protected.
Machine details
Wire is fixed tidiness
Machine details
Gears with protector
Warning lables on protector
Keys to fix gears and shafts
Machine details

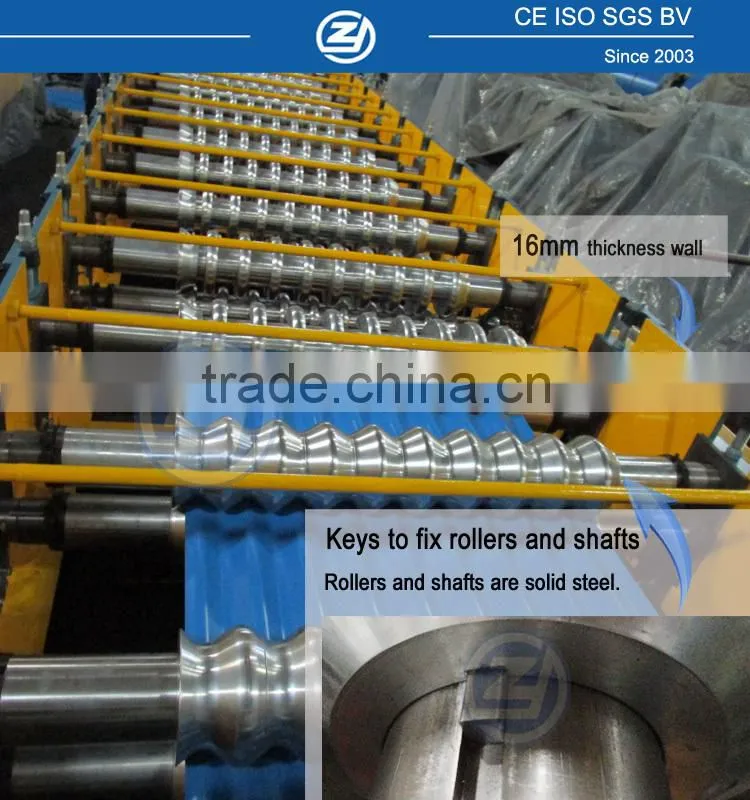

Keys to fix rollers and shafts(72mm)
rollers and shafts are solid steel
16mm thickness wall
1. Main technical parameter:
2. Machine components
|
Decoiler (manual/ hydraulic decoiler for option) |
1set |
| Feeding & guiding device | 1set |
| Pre-cutting device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table (auto. Stacker for option) | 1.5m/ pc, 2 pcs |
3. Machine process flow:
Decoiler -- Feeding & Guiding -- Roll forming-- Hydraulic Cutting - Product to Run Out Table
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have this machine in stock?
A: No, machine is made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
9) How is your cooperate process?
A: Below is the cooperation flow chart
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
