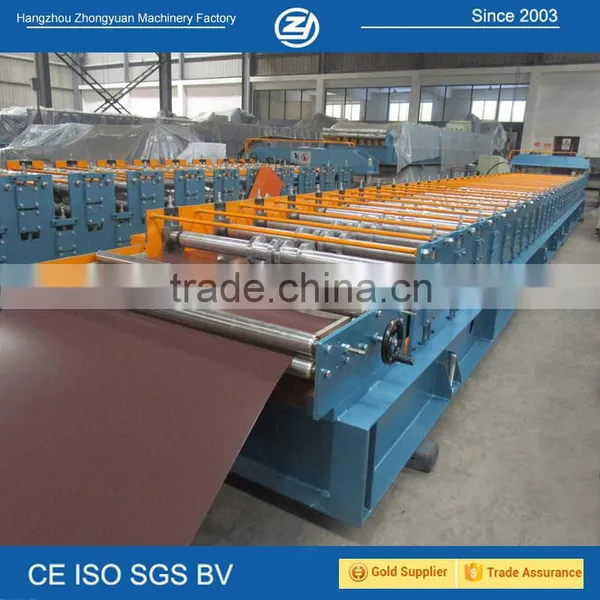

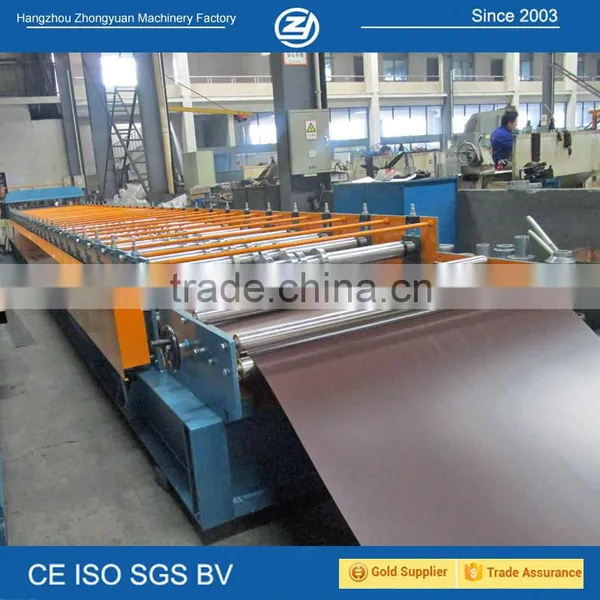

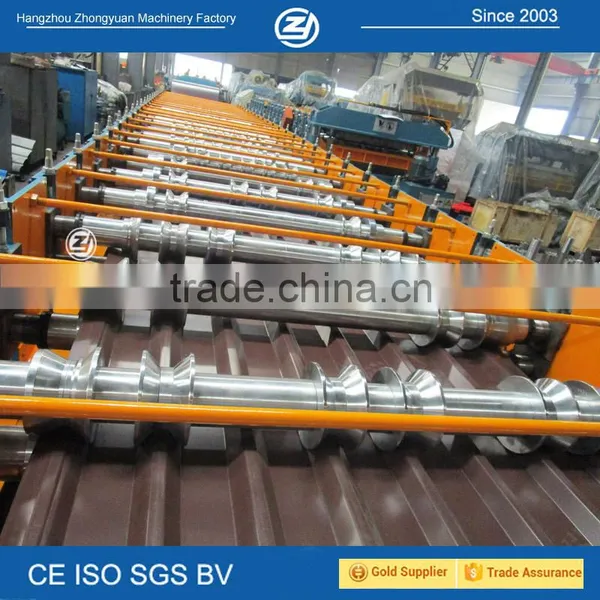

Trapezoidal Roof Panel Roll Forming Machine
Overview of Trapezoidal Roof Panel Roll Forming Machine

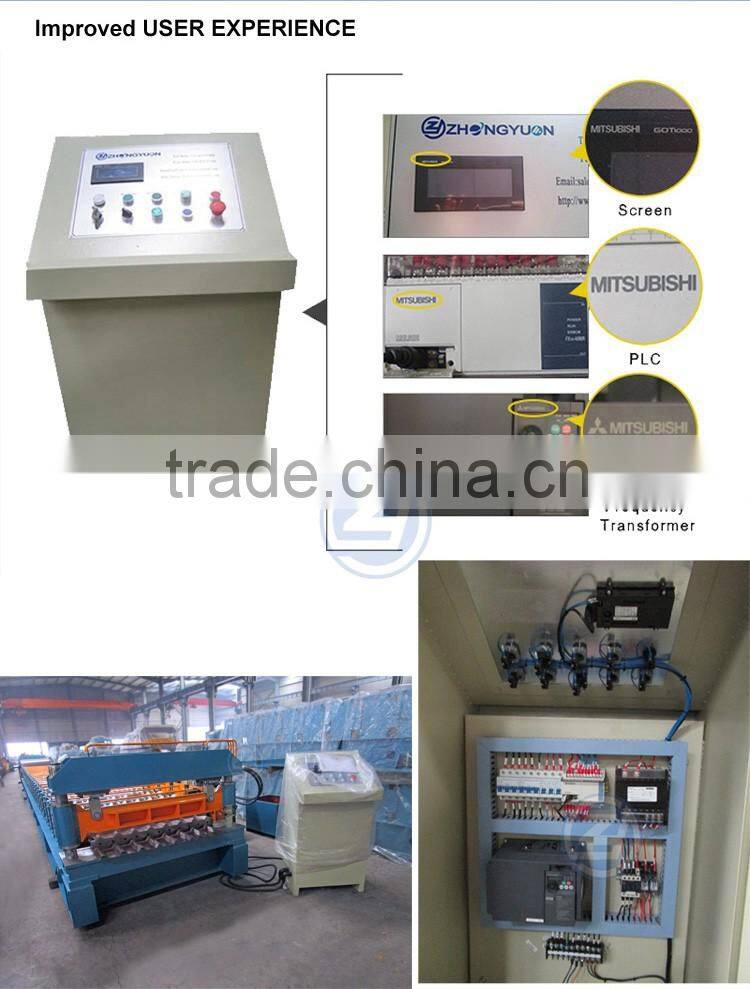

Improved USER EXPERIENCE
We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!
Roof corrugate machine parameter
Why choose this machine?
1. Certificate: ISO 9001, CE,
2. Lifetime services

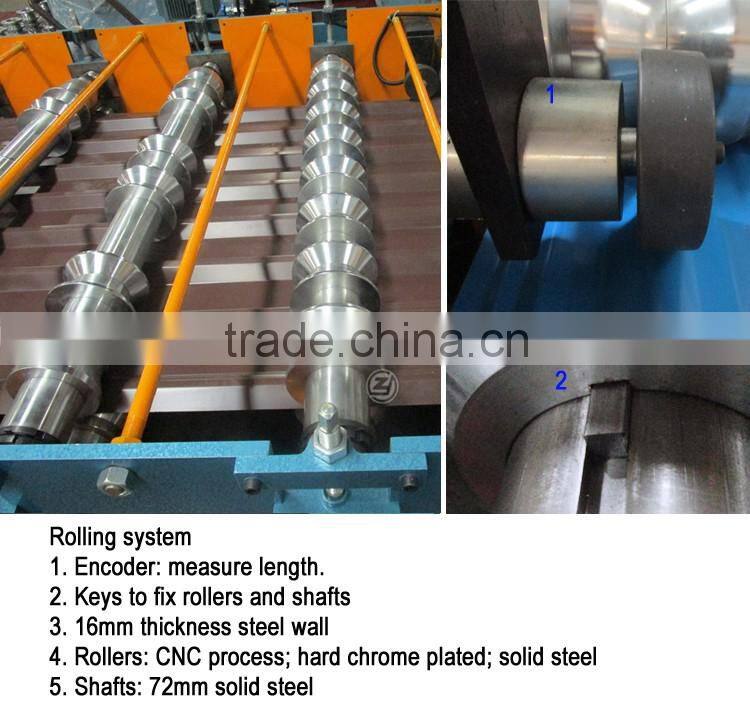

3. 72mm diameter solid steel shaft. Roller cover with 0.05mm chrome; Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
1. Parameters
Item |
Specification |
|
|
Material |
Type |
Pre-painted steel coil & galvanized coils |
Thickness(mm) |
0.3-0.7 |
|
Yield strength(mpa) |
235-345 |
|
Roller material |
No.45 forged steel |
|
Forming speed(m/min) |
About 20 |
|
Output speed(m/min) |
8-10 |
|
Speed adjusting mode |
AC Frequency |
|
Material width |
1200mm |
|
Cutting mode |
Hydraulic cutting |
|
Cutter material |
Cr12 mould steel |
|
Length measurement |
Encoder |
|

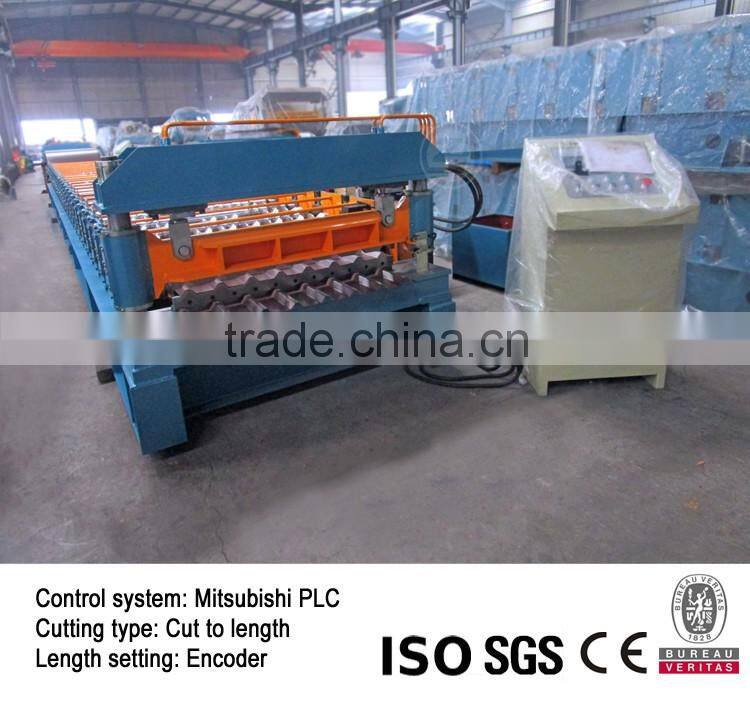

Control mode |
Mitsubishi PLC |
|
Cover width |
1000mm |
|
Main motor power |
7.5KW |
|
Total power |
9.7KW |
|
2. Components
|
Decoiler (manual/ hydraulic decoiler for option) |
1set | |

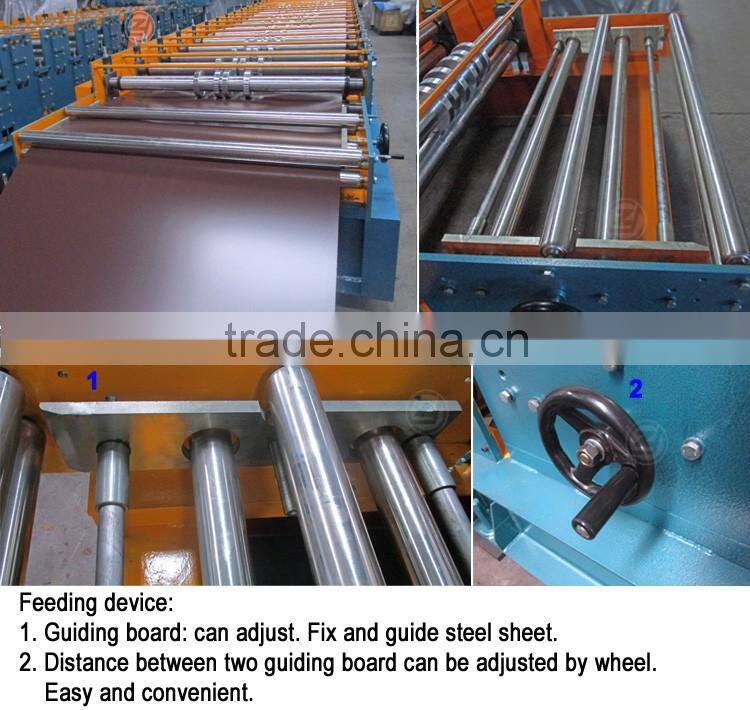

| Feeding & guiding device | 1set | |

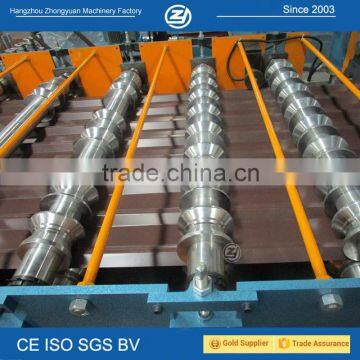

| Main roll forming machine | 1set | |

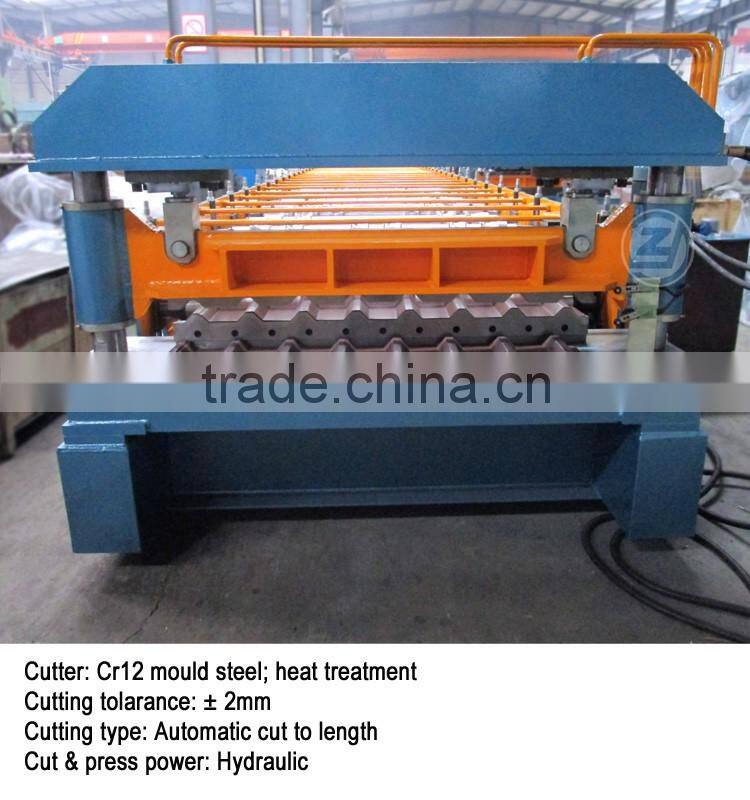

| Hydraulic cutting system | 1set | |
| Controlling system | 1set | |
| Run out table (auto. Stacker for option) | 1.5m/ pc, 2 pcs | |
3. Process flow
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table
Machine details
4 emergency switches in front and back of machine.
Wire is Double protected.
Machine details
Wire is fixed tidiness
Machine details
Gears with protector
Warning lables on protector
Keys to fix gears and shafts
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have this roof corrugate machine in stock?
A: No.machine is made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design support by our 15 year experience technicians FOR FREE!
