Roof Panel Equipment

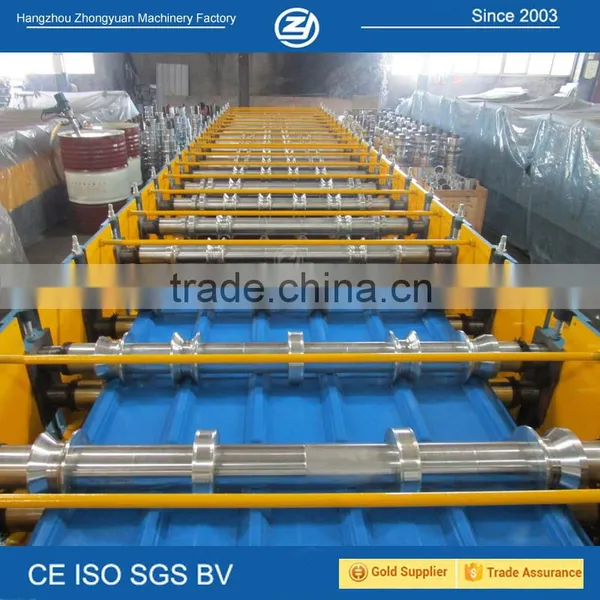

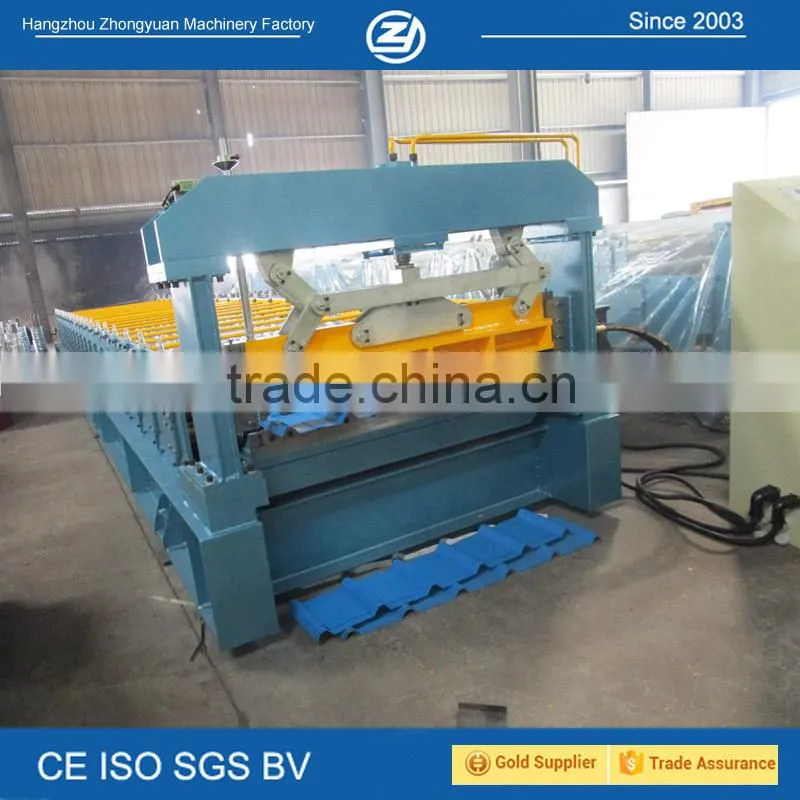

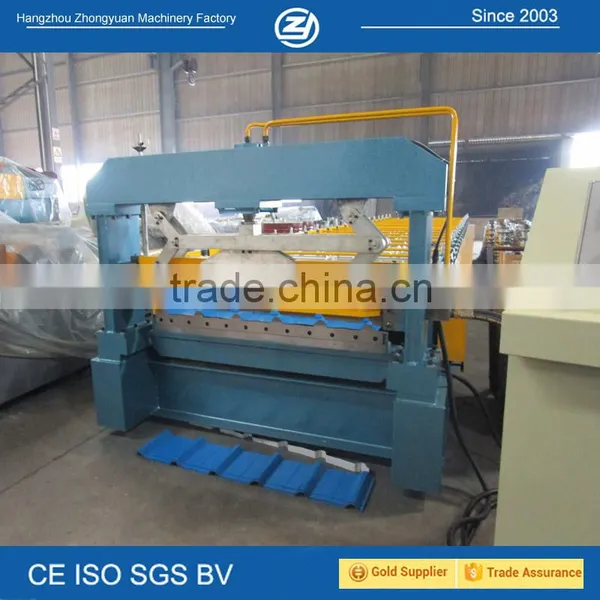

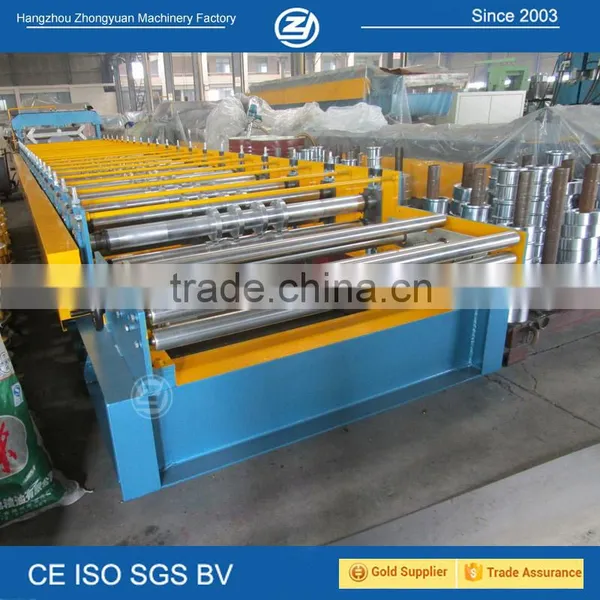

Roof panel roll forming equipment overview
Machine details 1.
Machine details 2.
Hydraulic hose bear W.P 38mpA / B.P 112MPa.
Machine details 3.
4 emergency switches in front and back of machine.
Wire is Double protected.
Machine details 4
Wire is fixed tidiness
Machine details 5.
Gears with protector
Warnning lables on protector
Keys to fix gears and shafts
Machine details 6.

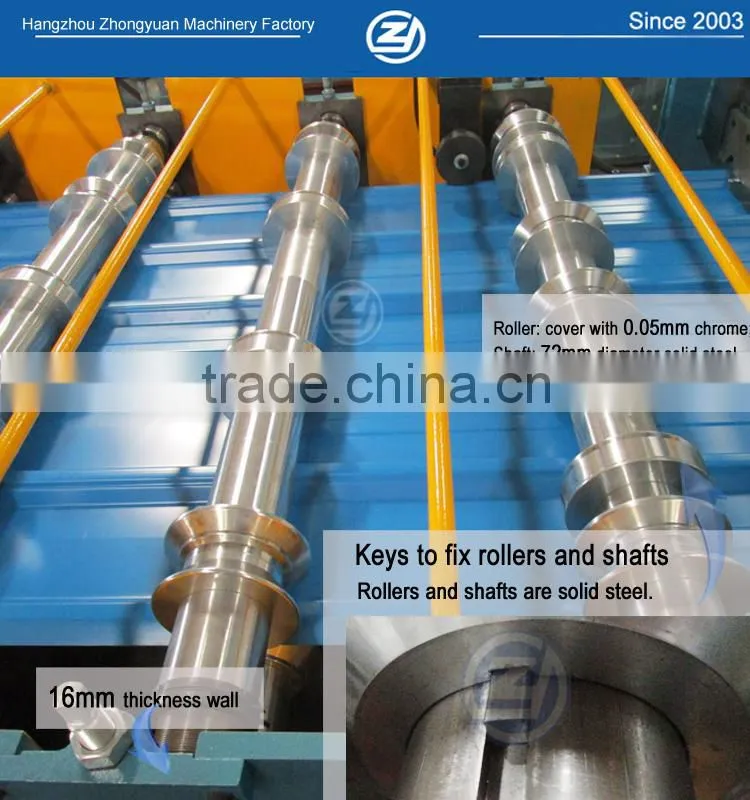

Keys to fix rollers and shafts(72mm)
rollers and shafts are solid steel
16mm thickness wall
Improved USER EXPERIENCE
We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!
Metel roof roll former components:
Roll forming machine consists of uncoiler, coil sheet guiding device, main roll forming system, cutting device, Hydraulic station, PLC control system and support table.
Main technical parameters:
1. Suitable material: color steel sheet or galvanized steel sheet
2.Thickness of raw material: 0.4-0.7mm
3. Yield strength of material: 235Mpa-345Mpa
4. Forming speed: about 15m-20m/min
5. Power Requirement Main motor power: 7.5Kw (Depend on final design)
Hydraulic station power: 2.2Kw (Depend on final design)
6. Uncoilers loading capacity Max. Capacity: 5000kgs (can be increased to be 10T)
7. Controlling system: Mitsubishi PLC & Converter
8. Machines weight: about 8.5000kgs.
9. Machines size: about 9.1m×1.7m× 1.5m (Depend on final design)
Material of Main Equipment
1. Roller Material: High grade No.45 forged steel, with digital-controlled procession, Plated with hard chrome.
2. Active Shaft Material: High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft. Shaft diameter is 72mm.
3. Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China
4. Cutter blade: Cr12 mould steel with quenched treatment
About us
We are professional in making roll forming machines since 2003.
Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines to process machine rollers.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. Over 15 years engineers to design and make your machines.
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have this roof panel equipment in stock?
A: No. machine is made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
