Why choose this c channel machine?
1. Designed by 15 years experienced R&D members with lifetime services.
2. Introduced Mitsubishi PLC with touch screen.
3. Roller cover with 0.05mm chrome, ensure lifetime>10years
4. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
5. Product cut-to-length.
6. 82mm diameter solid steel shaft
7.Technician overseas installing and training available

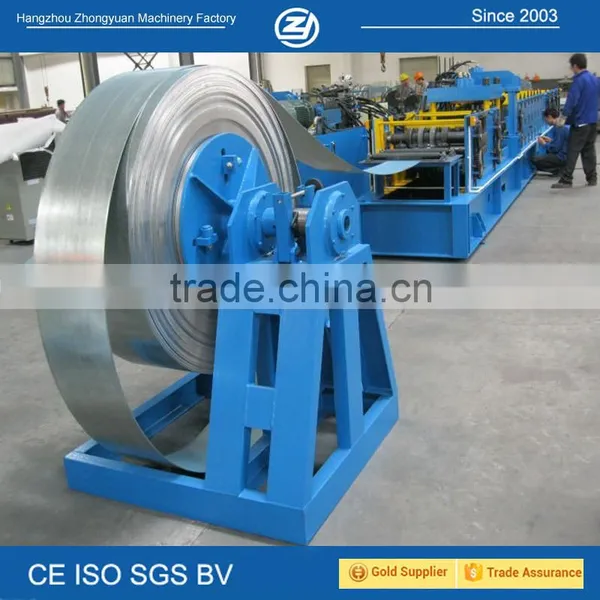

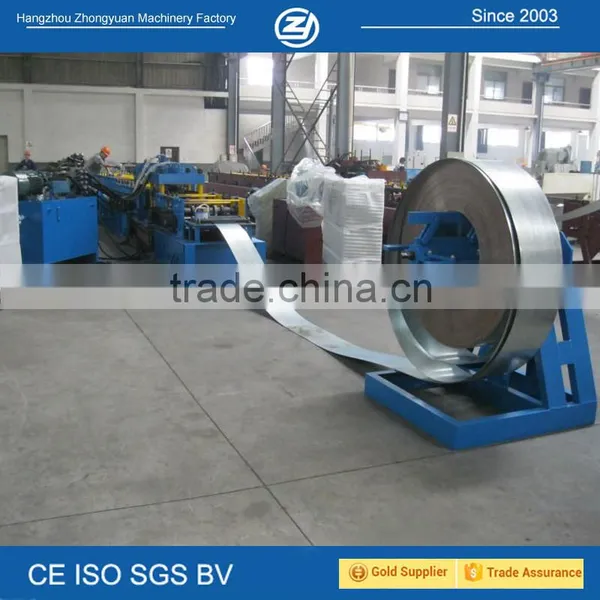

Metal C Channel Making Machine
1) Suitable Coil Thickness: 1.5,2.0 mm
2) Suitable Raw Materials: galvanized steel sheet
3) Yield strength of raw material: 235 Mpa
2. Parameters
| Item | Specification | |
| Material | Type | galvanized steel sheet |
| Thickness(mm) | 1.5, 2.0 | |
| Yield strength(mpa) | 235 -345 | |
| Forming speed(m/min) | About 10-15m/min | |
| Speed adjusting mode | AC Frequency | |
| Roller drive | Decelerating motor + Chain drive | |
| Cutting mode | Hydraulic cutting | |
| Length measurement | Encoder | |
| Control mode | Mitsubishi PLC | |
| Operating mode | Button + Mitsubishi Touch screen | |
| Main motor power(kw) | 15 KW (Depend on final design) | |
| Hydraulic station power | 5.5K W (Depend on final design) | |
| Total power(kw) | 20.5KW | |
| Uncoiler's loading capacity | Max. Capacity: 3000kgs | |
PLC Controller
The PLC controller is the "CPU" of forming machine. Machine excellence performance need the supports of excellence PLC.
We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation; with auto working mode, let your workers free their hands!
Inside of PLC Controller for reference
Rollers and shafts are the critical parts of forming machine. Their process affect machines lifetime and panel profile precision.
82mm solid steel shafts; Cr12 mould steel rollers
What is the main process of our machine rolllers and shafts?
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have this metal C channel making machine in stock?
A: No, machine is made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
9) How is your cooperate process?
A: Below is the cooperation flow chart
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design support by our 15 year experience technicians FOR FREE!
