Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Zhongyuan | Model Number: | ZYYX36-250-1000 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

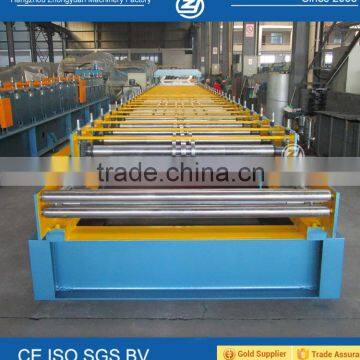

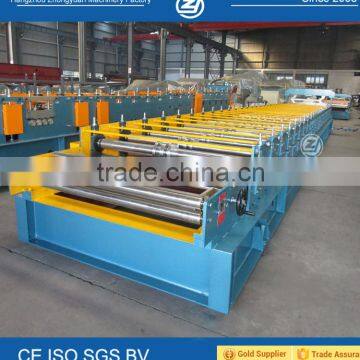

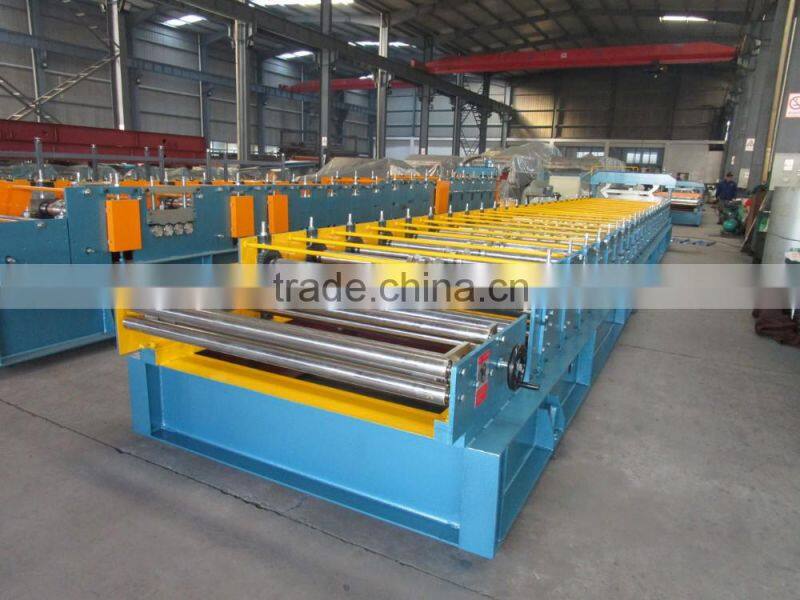

Steel Roll Forming Machine to India
1. Designed by 15 years experienced R&D members with lifetime services.
2. Introduced Mitsubishi PLC with touch screen.
3. Need only one worker (minimum) to operate

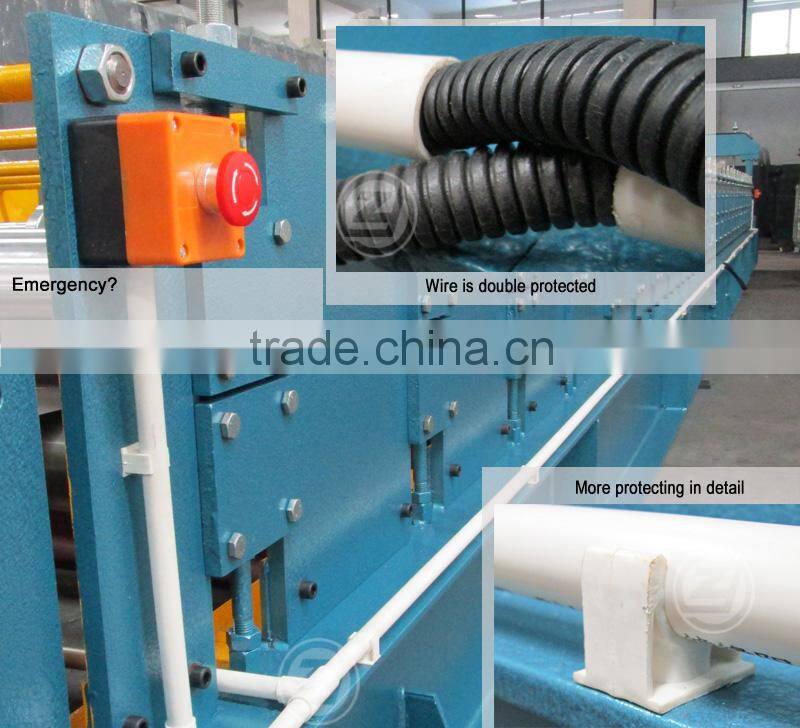

Machine details 3.
4 emergency switches in front and back of machine.
Wire is Double protected.
Machine details 4

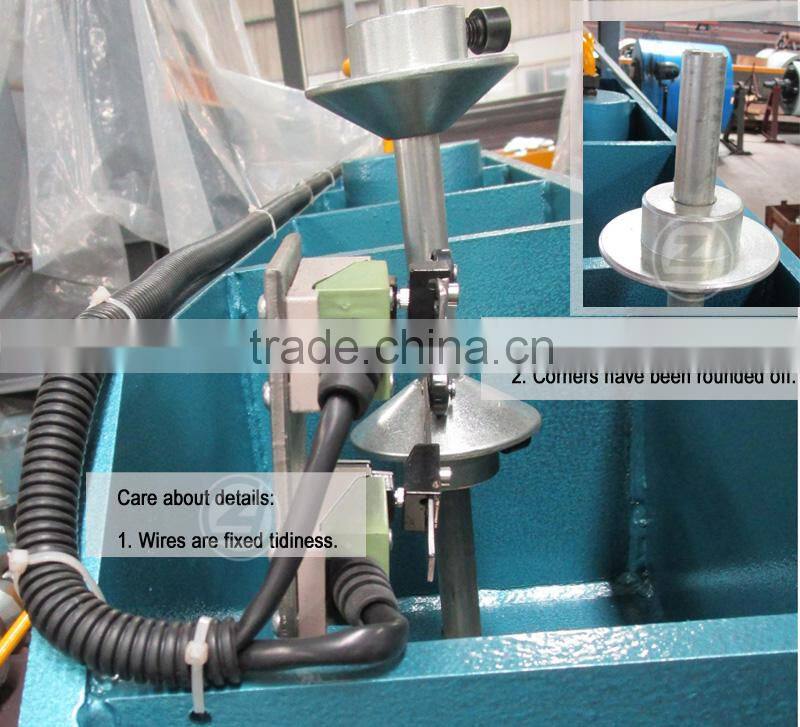

Wire is fixed tidiness

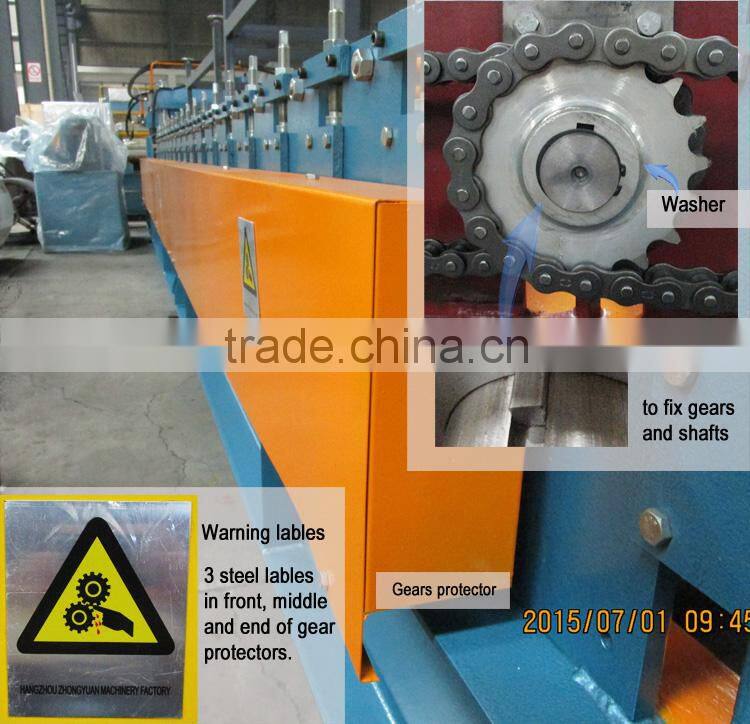

Machine details 5.
Gears with protector
Warning lables on protector
Keys to fix gears and shafts

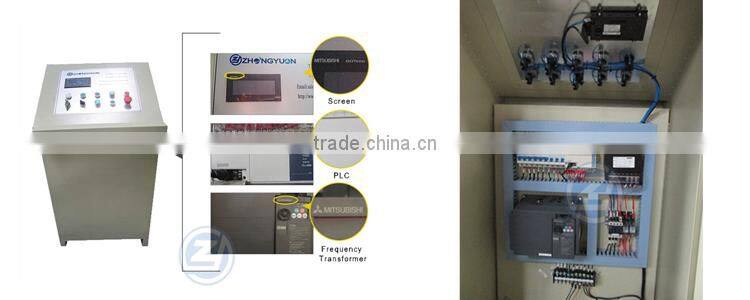

Control system
Converter: Mitsubishi from Japan |
Touch screen: Mitsubishi from Japan |
Language: English or as required |
Pramenters of steel roll forming machine to India
Main Technical Parameters | ||
Material | Type | Pre-painted steel coil & galvanized coils |
Thickness | 0.3-0.7mm | |
Coil width | According to customers requirement | |
Yield strength | 235Mpa | |
Forming speed | 20m/min | |
Output speed | About 10m/min | |
Speed adjusting mode | AC Frequency | |
Roller drive | Decelerating motor + Chain drive | |

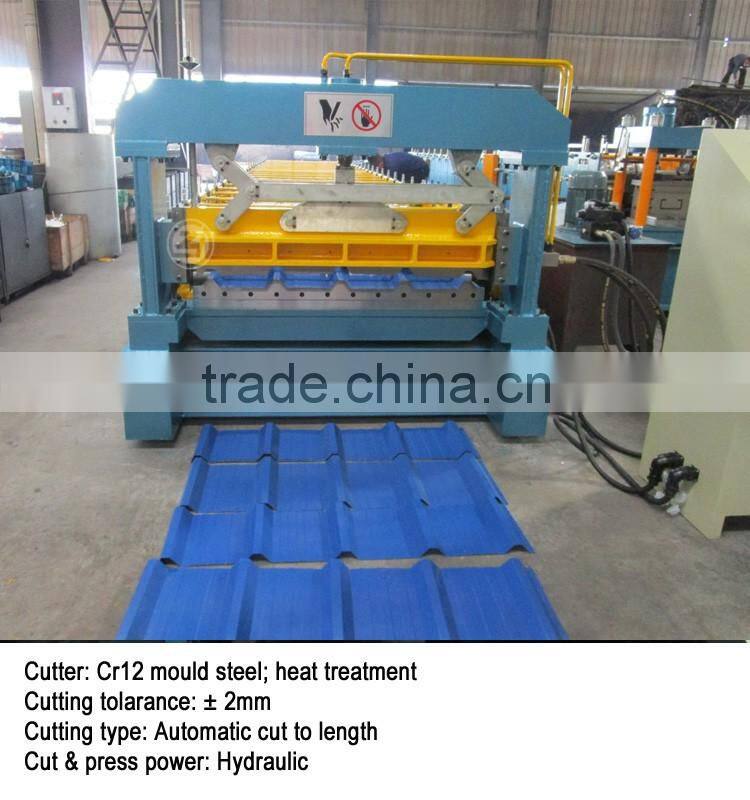

Cutting mode | Hydraulic post-cutting | |

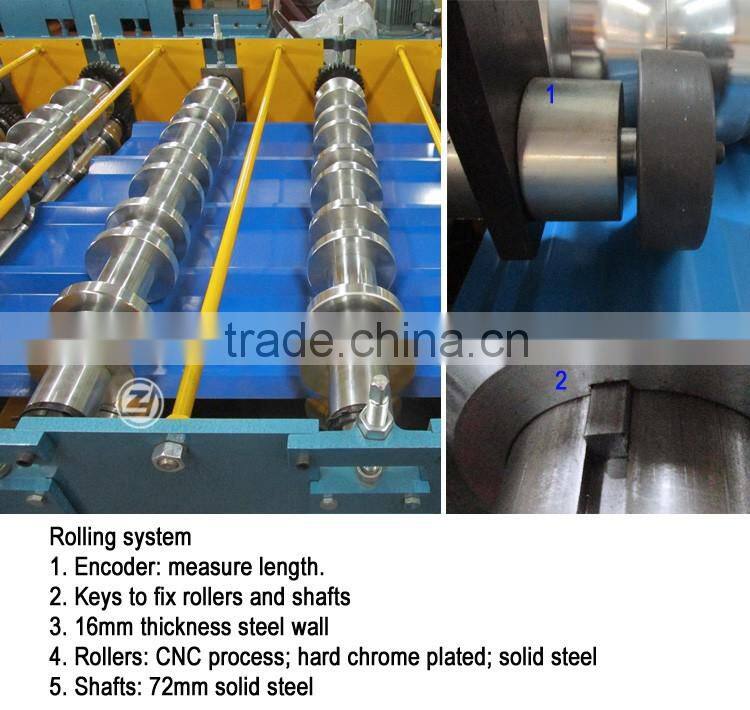

Rollers shafts | Diameter 72mm | |

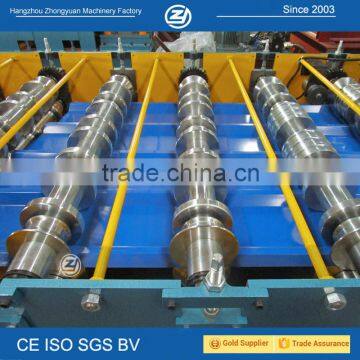

Roller material | No.45 forged steel | |

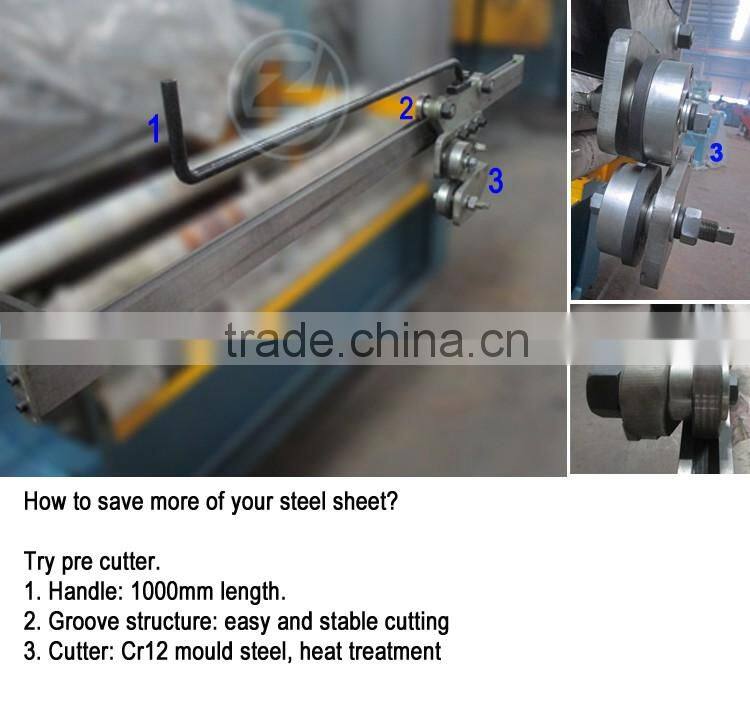

Cutter material | Cr12 mould steel | |
Length measurement | Encoder | |
Control mode | Mitsubishi PLC | |
Operating mode | Button + Mitsubishi Touch screen | |
Main motor power | 7.5KW | |
Hydraulic station motor power | 2.2 KW | |
Main Components | ||
Manual Decoiler | 1set | |

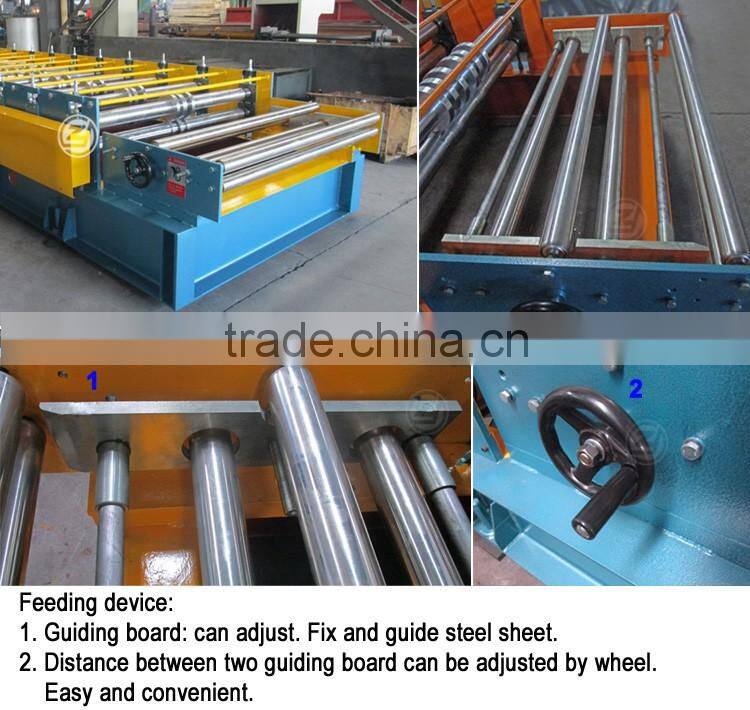

Feeding & guiding device | 1set | |
Main roll forming machine | 1set | |
Hydraulic cutting system | 1set | |
Controlling system | 1set | |
Run out table | 1set (2 pieces) | |
Automatic Decoiler and Stacker | For options | |
Process flow | ||
Decoiling the coils → Guiding coils→ Roll forming→ Measure length and cutting → Finished sheets to the run out table |
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have this corrugated iron sheet making machine in stock?
A: No, machine is made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design support by our 15 year experience technicians FOR FREE!
