Specifications
1.USB Cable 3.02.Data transfer rate up to 4.8Gbps
3.28AWG conductor
4.Rated voltage:30V
5.90% Shielding

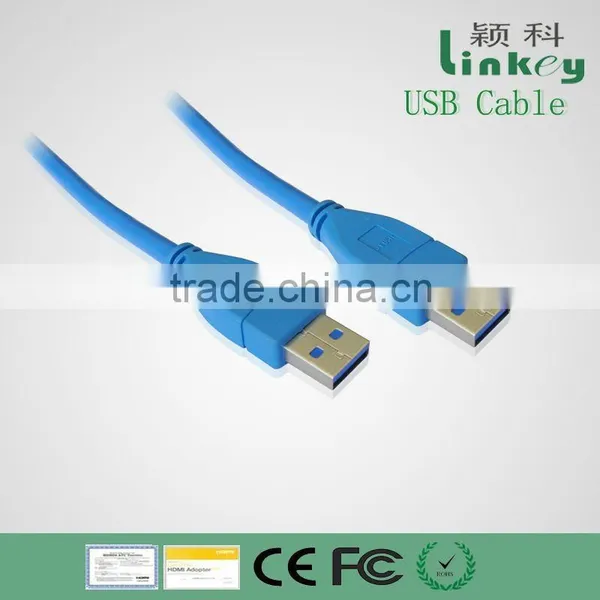

USB CABLE 3.0 AM to AM
Detail products description:
1.USB Cable 3.0
2.Data transfer rate up to 4.8Gbps
3.28AWG conductor
4.Rated voltage:30V
5.90% Shielding
Products features:
1.USB3.0 Cable,Support high-speed transmission up to 4.8Gbps
2.USB2.0/1.1 compatible devices.
3.28AWG/24AWG copper conductor
4.Compatible with USB Rev3.0/2.0/1.1
5.For connecting computer or Notebook to HD-DVD/Big mobiles memory
6.Gold - plated copper contacts minimize data loss
7.Foiled and braided shield complies with fully rated cable specifications
8.Impedance matches twisted pair construction helps to minimize cross talk, super high- speed, error-free transmission
CABLE SPECIFICATION:
UL20276(1P * 28AWG + D + AL + MY) 2C +1 P * 28AWG +2 C * 24AWG + aluminum foil + ground + 3 of copper braided cotton +96 Copper
Specification:
| Product Name: | USB(AM) To USB(AM) Cable |
| Connector: | Gold ,Nickel plated |
| Conductor: | Pure Copper; Tinned Copper |
| Gauge: | 30AWG,28AWG,26AWG optional |
| Jacket color: | Beige,Black,Transparent |
| Certification: | RoHS, FCC, CE |
ELECTRICAL:
| Quality Control:100% Open & Short Test, passed four tests |
| Voltage: DC300V 5M ohm/10ms |
| Insulation Resistance: 10MΩ min |
| Contact Resistance: 2 ohm max |
| Working Temperature: -25C-80C |
PACKING:
| Poly bag with sticker |
| Customized Gift box |
| Blister, bubble or slide blister available |
AFTER-SALE SERVICE:
| Our slogan is "Survive depends on quality,develop based on service." |
| Our promise, so long as product quality has question, upon test and find out if they are our fault, we can exchange or resupply to you for free with my company connection. |
Advantages of USB 3.0 Cable:
1) will be backwards-compatible with USB 2.0
2)The maximum speed of USB 3.0 is 4.8Gbps, USB 3.0 SuperSpeed will be 10 times faster than the 480Mbps limit of the 2.0
3)Uploads and downloads are kept on separate data lanes
4)USB 3.0 will charge more devices, quicker
5)USB 3.0 will be more power efficient
Drawings for USB 3.0:
HOW THE CABLES ARE MADE:
