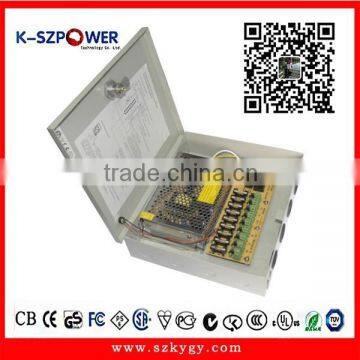

2015 K-74 12V 5A 9CH cctv switching power supply box with Key and CE UL

♦ Technical date

♦ Technical date

1.Input voltage:AC 100-240v           2.Input current: ≤800Ma

3. Frequency:50/60HZ                        4.Efficiency:CEC-V/ERP/MEPS

5.Output voltage:,±5%                  6.Standby Power:≤0.3W

♦Environment:

1.Working temperature:0°C to 40°C       2.Storage temperture:- 20°C to 60

3.Humidity:5% to 95% R.H.

♦Safety standard:ROHS UL.FCC.CEC. CE .GS. ERP. CB .BS1363.SAA.C-TICK. MEPS .3C.KC.PSE

♦Reliable:

1.     MTBF:50000Hours@25°C (MIL-HDBK-217)

♦SPEC:

1.Weight:2100g        2.Size:(L250mm*W215mm*H94mm)

♦Typical parameters:

1.Fuse Type:(PTC –Resetable

2  Fuse  Rating:2A

3.  Feature: General protection: each output has independent PTC fuse and LED indicator,  when problemoccurs, only affect the independent output, other outputs still working.
Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs, the surge protectionwill be hit through to protect the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
4.Application:CCTV Camera, PTZ, IR Illuminator, Video ProcessorAccess Control , etc.

NO   Model NoVoltage(V)   Current(mA)  Ripple&Noise(mv)   (OUTPUTS)

1                         K-12050009CH       12             5000           50                   9 OUTPUTS
