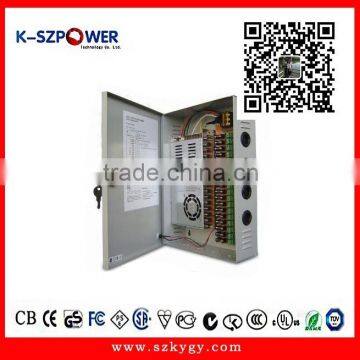

2015 K-82 YGY 12V30A power supply 360w 18 channels for CCTV camera

Technical date()

1.Input voltage():AC 100-240v           2.Input current : 1500Ma

3. Frequency()50/60HZ                        4.Efficiency()CEC-V/ERP/MEPS

5.Output voltage(),5%                  6.Standby Power()0.3W

Environment()

1Working temperature()0C to 40C       2.Storage temperture()- 20C to 60

3Humidity()5% to 95% R.H.

Safety standard()ROHS UL.FCC.CEC. CE .GS. ERP. CB .BS1363.SAA.C-TICK. MEPS .3C.KC.PSE

Reliable()

1.     MTBF50000Hours@25C (MIL-HDBK-217)

SPEC()

1Weight()2800g        2.Size()mm310*215*60

Typical parameters()

1Fuse TypePTC Resetable or Glass fuse

2  Fuse  Rating:2A

3.  Feature: General protection:each output has independent PTC fuse and LED indicator, when problem occurs,only affect the independent output, other outputs still working.
Circuit short protection:when short condition occurs, independent PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close.
High voltage protection:when high voltage occurs, the surge protection will be hit through to protect the connected device.
Over Current protection:when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.

4.Application()CCTV Camera, PTZ, IR Illuminator, Video Processor Access Control ,etc.

NO       Model No    Output Voltage(V)   Current(mA)  Ripple&Noise(mv)   OUTPUTS

1                         K-1203000018CH       12                   300000           50              18 OUTPUTS
