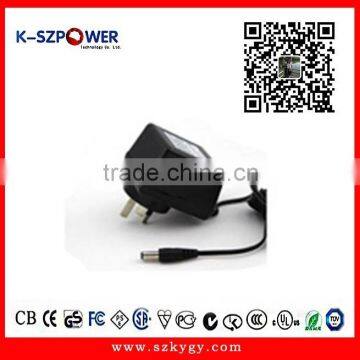

2015 K-73 YGY 6W ac dc switching power supply 12V500ma

DC output voltage: 3 to 24V (AC or DC) (optional)

DC output current: 30 to 1,600mA (maximum)

Output voltage precision: 5%

Ripple and noise: 100mV

Regulation: ±1% line, ±5% load

DC output cord dimensions: 2.1 x 5.5 x 12mm (normal)

Wire length: 1.5m

Details:

6VDC 1A Linear Power Supply, 6V DC 1A Linear power adapter, Class II, LPS, IP20, Universal input, customized design.
P/N:K-061000

MODEl:K-061000
Input: 120VAC 60HZ
Output: 6VDC 1000mA

High-reliability

High-efficiency: consumption, meets US Energy Star, CEC, AS, MEPS, EUP and ERP

Lightweight and convenient plug in

Low-temperature

IP20 rating

Input:

Rated voltage

Japan: 100V AC, 60Hz

North America: 120V AC at 50/60Hz

China and Korea: 220V AC at 50Hz

Europe and Russia: 230 to 240V AC at 50/60Hz

Australia and New Zealand: 240V AC at 50/60Hz

Brazil: 127 or 220V AC


No-load input power: 0.3W at 240V AC

Efficiency: CEC IV, ErP I

Input plug: EU/VDC (EU), US (North America), PSE (Japan), SAA (Australia, NZ), BS (UK, HK), Brazil, South Africa, CCC (China) and EK (Korea)


Output:

DC output voltage: 3 to 24V (AC or DC) (optional)

DC output current: 30 to 1,600mA (maximum)

Output voltage precision: 5%

Ripple and noise: 100mV

Regulation: ±1% line, ±5% load

DC output cord dimensions: 2.1 x 5.5 x 12mm (normal)

Wire length: 1.5m

EN61558-2-6

EN60950:2009, EN60065

PSE IEC60950, EN60065

AS/NZS 60950:2000, AS/NZS60065

CE (low-voltage directive)

UL1310, GB4943-2001

Burn-in: 100% full load, 40°C, 4 hours (minimum)

Leakage current: 0.25mA at 264V AC (maximum)

MTBF: meets MIL-HDBK-217F over 60K hours, full load, 25±°C



Short-circuit

Thermal cutoff capability

Very low-ripple and noise

Very nice regulation

Low-disturbance noise, but more heavy

Larger size than switching power supply

Used for antennas, fans, radios, video, toys, aquariums, desk lamps and LED lamps

Customized requirements are accepted



FCC part 15 class B

EN55022 class B

AS/NZS3548, AS/NZS4251.1 class B

EN55024/A1:2001

IEC61000-4-2, IEC61000-4-3

IEC61000-4-4, IEC61000-4-5

IEC61000-4-6, IEC61000-4-11

GB9254-1998/GB17625.1-2003

CISPR22 class B

CNS13438 class B


NO             Model No    Voltage   Current  Ripple&Noise(mv)   Efficiency115V/230V

1                         K-0500500        5               500              50                  V

2                         K-0500800        5               800              50                  V

3                         K-0501000        5              1000              50                  V

4                         K-0501200        5              1200              50                  V

5                         K-0600500        6               500              50                  V

6                         K-0600800        6               800              50                  V

7                         K-0601000        6              1000              50                  V

8                         K-0750800       7.5              800              50                  V

9                         K-0900500        9               500              50                  V

10                       K-0900600        9               600              50                  V

11                       K-1200500       12               500              50                  V
