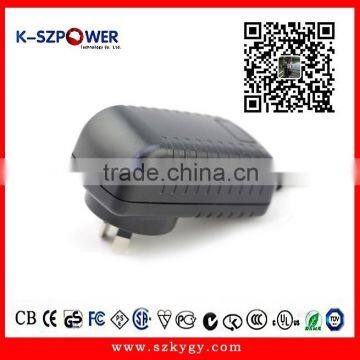

2015 K-69 YGY 12w switching led cctv camera ac dc power supply 12v 1a

Technical date()

1.Input voltage():AC 100-240v           2.Input current : 300Ma

3. Frequency()50/60HZ                        4.Efficiency()CEC-V/ERP/MEPS

5.Output voltage(),5%                  6.Standby Power()0.3W

Environment()

1Working temperature()0C to 40C       2.Storage temperture()- 20C to 60

3Humidity()5% to 95% R.H.

Safety standard()UL.FCC.CEC. CE .GS. ERP. CB .BS1363.SAA.C-TICK. MEPS .3C.KC.PSE

Reliable()

1.     MTBF50000Hours@25C (MIL-HDBK-217)

SPEC()

1Weight()105g/pcs           2.Size()L83mm*W43.5mm*H30.5mm

Typical parameters()

NO       Model No    Voltage(V)   Current(mA)  Ripple&Noise(mv)   Efficiency()115V/230V

1                         K-0502500        5              2500               60                   V

2                         K-0751600        7.5            1200               60                   V

3                         K-0901200        9              1200               90                   V

4                         K-1201000       12              1000              120                  V

5                         K-1900600       19               600              190                  V

6                         K-2400500       24               500              240                  V
