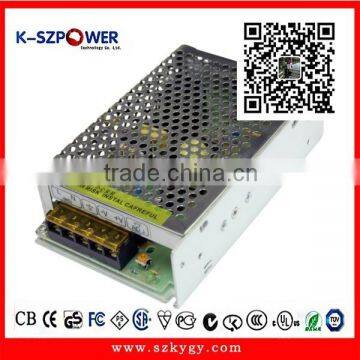

2015 K-89 metal case switching ac dc power single output 12v 5amp power supply

FOB Price

USD $1 - $50 / Unit

100 Units(Min.Order)

Supply Ability 500000 Unit / Units per Month
Port shenzhen&Hongkong&Guangzhou
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	K-YGY
Model Number	K-YGY125000	Output Power	51 - 100W
Output Type	Single	Input Voltage	Other, 100-240Vac, AC 90V~130V/170V~250V
Output Voltage	12vdc	Output Frequency	50/60HZ
Output Current	5a

Product Description

60W Single Output Certified Power Supply

High reliability
Built-in EMI filter
Low output ripple&noise
Protections:Over load/Short circuit
Approvals:CE CCC
2 years warranty
Size:159×98×42mm 365g/pcs

AC input voltage range--------------------------85-264VAC
Input frequency---------------------------------47-63Hz
AC inrush current--------------------------------Cold start,40A/230VAC
DC adjustment range-----------------------------±10% rated output voltage
Line regulation(full load)------------------------≤0.5%
Output over load protection-------110%-150% hiccup mode,auto-recovery
Rise,hold up time--------------------50mS,20mS at full load(typical)
Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature------10~+40℃@100%,+60℃@60% load
Storage temperature------20℃~+85℃,20%~95%RH(non condensing)
Safety standards------Design refer to GB4943,UL60950-1,EN60950-1
EMC standards------- Design refer to GB9254,EN55022 class A
Cooling method---------------------Free air cooling convection

Product model	DC output	Load regul.	R&N	Efficiency
k-60-5	5V,12A	2%	100mV	73%
k-60-12	12V,5A	1%	120mV	78%
k-60-24	24V,2.5A	1%	200mV	82%
