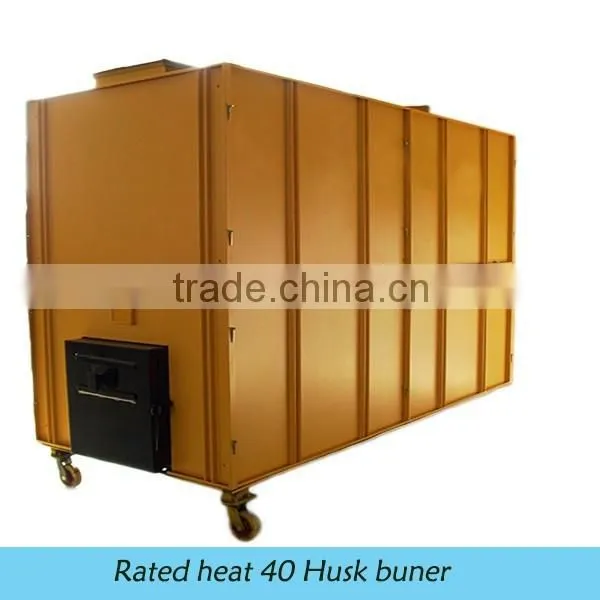

Help CenterGYDL-40 Wood Saw Dust, Coal, Husk Furnace for Grain Dryer
Related Products
-
GYDL-50 Husk BunerUS$ 8,500 - 12,000MOQ: 1 Set -
GYXL-70 Suspension Husk BurnerNegotiableMOQ: 1 Set
-
GYXL130 Husk BurnerNegotiableMOQ: 1 Set
-
High Quality Vertical Model Emery Roller Rice Whitener Rice Mill for SaleUS$ 7,000 - 12,000MOQ: 1 Set
-
Cheap Hot Sale Vertical Rice Mill Rice Whitener for SaleUS$ 7,000 - 12,000MOQ: 1 Set
1, This series of grain dryer furnace adopt rice hull,firewood,straw,anthracite and other biomass energy as fuel which can reduce the drying cost ,It also can save the energy and protect the environment.
2, Heat up quickly and good thermal effects. It adopts indirect heating and automatic temperature control which can prevent excessive dying.
3, Adopt manual and automatic feeding device which is optional according to user's requirement.
| Model Selection Guide | ||||
| Mode | GYDL-20 | GYDL-30 | GYDL-40 | GYDL-50 |
| Rated Heat (Ten thousand Kcal/hour) | 20 | 30 | 40 | 50 |
| Output Air Temperature( ℃) | 60-100 | |||
| Heating Model | Indirect Hot Air Heating, Automatic Temperature Controlling | |||
| Ignition Mode | Manual | |||
| Feeding Mode | Manual / Automatic (Optional) | |||
| Model of Exhaust Fan | 4-72-No 3.2A- | |||
| Output Hot Air (m3/h) | 6700-13353 | 13353-26706 | 26706-40059 | 30711-46067 |
| Applied Fuel; | Rice Hull, Wood, Straw, Anthracite | |||
| Thermal efficiency ( % ) | ≥60 (rice hull) | |||
| Rated Fuel Consumption (kg/h) | 17-25 | 25-35 | 35-45 | 45-55thermal |
| Weight(Kg) | 2800 | 3200 | 3400 | 4000 |
| Dimension(mm) | 2600×1200×1640 | 3100×1400×2300 | 3200×1600×2300 | 3200×1600×2680 |
| Power (Kw) | 1.1 | 2.2 | 2.2 | 2.2 |
| QTY and Model of Matching dryers | 5HGY-10 1 set | 5HGY-10 2set | 5HGY-10 3 set | 5HGY-10 4 set |
| 5HGY-12 1 set | 5HGY-12 2set | 5HGY-12 3 set | 5HGY-12 4set | |
| 5HGY-15H 1 set | 5HGY-15H 2 set | 5HGY-15H 3 set | 5HGY-15H 4 set | |
| Safety Device | Thermo-over Relay, Automatic Constant Temperature Device, Hot Air Temperature Sensor, Overheat Protection Device, Leakage Protection Device. Automatically discharge the smoke, convey the air and control the temperature at the same time. | |||
| 1. All actual data listed will differ from ambient temperature, relative humidity, fuel quality and moisture content | ||||
| 2. All data listed are for reference only. Specification is subject to change without prior notice. | ||||
Quality control:
1. Raw material: Long term cooperated supplier for stable offering raw material, and we also have strict rule for raw material inspection and control before in warehouse
2. We have QC inspect on production line all the time.
3. Spot inspection for finished products before loading.
Trade Terms:
1. Payment term: T/T 30% deposit after order confirmed, the balance paid against copy BL . or L/C at sight
2. Lead time : normally in 4 weeks after deposit received .
3. Shipping port: Shanghai / Qingdao/Tianjin China
4. Discounts : We offer discount for long term cooperated customers
Our services:
1. For all your inquires about us or our products, we will reply you ASAP
2. One year of whole machine spare parts free
3. Lifetime spare parts available;
4. Painting color customized;
5. OEM service offered
6. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
7, Long term support for equipment installation and operation
