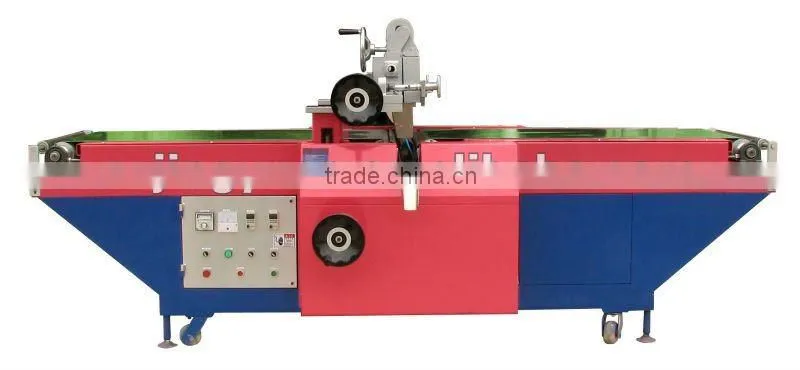

UV Flatbed Liquid Laminating Machine TJ-LM650

Name: UV Flatbed Liquid Laminating Machine TJ-LM650
Brand: Tejia
SKU: 101146317

US$ 1 - 5,000 MOQ: 1 Piece

Key Specifications

Type:

Laminating Machine

Computerized:

Yes

Place of Origin:

Guangdong, China

Shenzhen Jingyuan Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Type Laminating Machine

Computerized Yes

Place of Origin Guangdong, China

Brand Name Tejia

Model Number TJ-LM650

Certification CE

Specifications

1, Our Own brands laminating machine
2,Superior quality:No bubbles,water-proof.
3,Cost-effective
4,Simple operation

UV Flatbed liquid laminating machine

Technical parameters :

Product name: TJ-LM650 UV flatbed ink liquid Laminating machine

Model	Effective working width	Effective working height	Minimum length of processing	feeding speed	rubber roll power	Dimensions	Total power	The weight of the machine
620	620mm	1-80mm	30mm	5-80m/min	0.75kw	3000mm1300mm1400mm	1.5kw	1100kg
920	920mm				0.75kw	3000mm1750mm1400mm	1.5kw	1300kg
1320	1320mm				1.5kw	5000mm2200mm1400mm	3kw	1500kg

Advantages	1,Wide processing thickness. Wide range of applications
	(suitable for flat Furniture, ceramic tiles, marble, wood flooring, a flat-screen doors, aluminum ceiling, organic board)

	2,Good quality of finished products,Good feedback from users.
	(Laminating material surface paint smooth as a mirror)

	3,Perfect Machine combination
	A)This machine is equipped with a UV oil circulation device, UV oil recovery is quick and easy, no waste, and to install UV oil filtration device, can effectively eliminate air bubbles and ink pollutants
	B)Oil pump using imported materials, high-precision assembling, there is no vibration, no noise, no bubbles during operation, thereby reducing rework rate
	C)Conveyor is made of high quality resin, solvent-resistant, easy to clean

	3,Low cost, high efficiency
	Laminating Lower to cost $0.32 per sq.m. , one person can operate, Laminating speed according to the actual needs of customers can reach 100-600 m / h
