Help Center10G DWDM SFP+ 80km Optical Transceivers
Related Products
Specifications
1.DWDM SFP+ 80km Optical Transceivers2.Duplex LC Connector
3.Excellent ESD protection
4.Max link length up to 80Km on SMF
10G DWDM SFP+ 80km Optical Transceivers
Product Features
1.Duplex LC Connector |
2.Support hot-pluggable |
3.Metal with lower EMI |
4.Excellent ESD protection |
5.C-band DWDM 100GHz channel spacing |
6.EML Transmitter and APD Receiver |
7.Max link length up to 80Km on SMF |
8.RoHS Compliant and Lead-Free |
9.Digital diagnostic compatible with SFF-8472 |
10Case Operation Temperature£ºStandard temperature: -5°C~+70°C |
11.Single 3.3V power supply and Low power dissipation |
Applications
1.10GBASE-ZR/ZW |
2.10G Fibre Channel |
Description
DWDM SFP+ 80KM is specifically designed for the high performance integrated duplex |
data transmission over single mode optical fiber. This transceiver module is compliant |
with Enhanced Small Form Factor Pluggable Module SFP+ Multisource Agreement |
(SFF-8431).This transceiver type is specifically optimized for transport of serial data at |
10.3125Gbps |

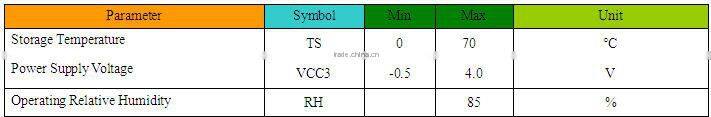

Absolute Maximum Ratings
Recommended Operating Conditions
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Notes |
Power Supply Voltage |
Vcc |
3.13 |
3.30 |
3.47 |
V |
|
Power Supply Current |
Icc |
- |
- |
450 |
mA |
|
Case Operating Temperature |
Top |
-5 |
- |
70 |
°C |
|
Data Rate |
9.953 |
10.3125 |
Gbps |
SR |
||
9/125um G.652 SMF |
Lmax |
- |
- |
80 |
Km |
|
Baud Rate Tolerance |
-100 |
+100 |
ppm |
Performance Specifications - Transmitte(-5ºC<Tc<+70°C; +2.97V<Vcc<+3.63V)
Performance Specifications - Receiver(-5C<Tc<+70°C; +2.97V<Vcc<+3.6V)
SFP+ Transceiver Electrical Pad Layout
Pin Function Definitions

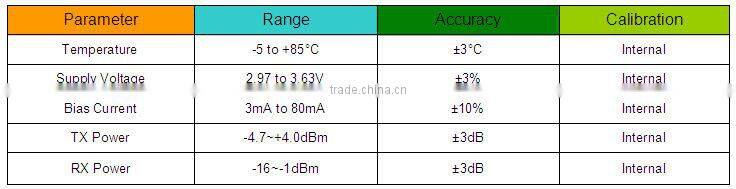

Monitor Specification
The digital diagnostic monitoring interface also defines another 256-byte memory map in EEPROM, which makes use of the 8 bit address 1010001X (A2h). The monitoring specification of this product is described in this table.

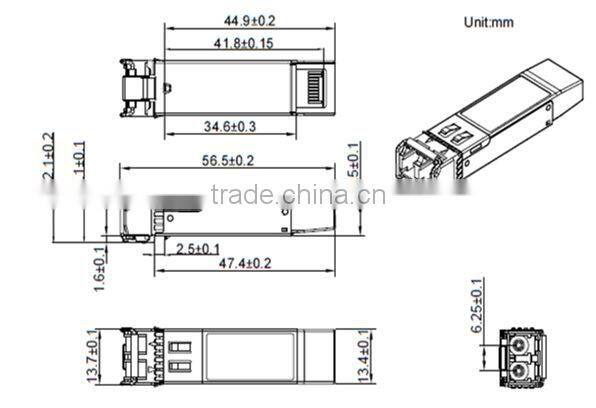

Mechanical Diagram
