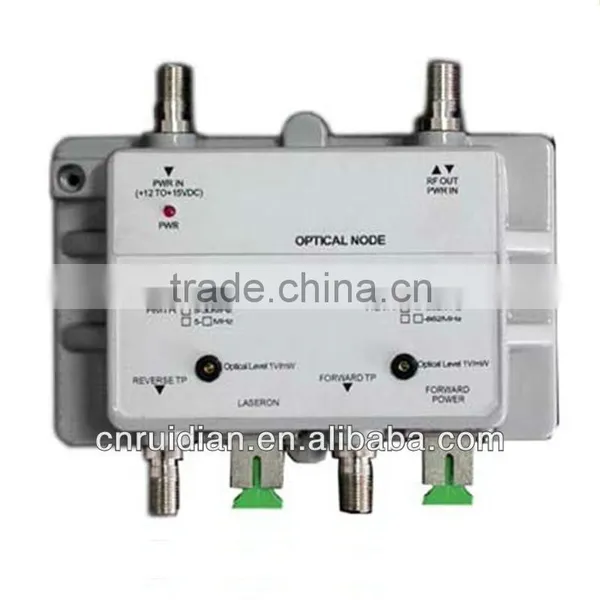

FTTH CATV Optical Receiver Module

Name: FTTH CATV Optical Receiver Module
Brand: Ruidian
SKU: 101133199

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

Ruidian

Model Number:

RDH8622 optical receiver module

Chengdu Ruidian Optical Communication Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name Ruidian

Model Number RDH8622 optical receiver module

Specifications

1.FTTH CATV optical receiver module
2.Small size wall type
3.RF bandwidth 45~862MHz
4.2MW
5.Adopt GaAs

Name of this receiver:FTTH CATV optical receiver module

Description

RDH8622 optical receiver is specialized in response to FTTH - Fiber to the home network of the group structure

introduced specialty products. This product has a high cost-effective, low-distortion, low power, high reliability,

small size, compact structure and the internal circuitry is reasonable, excellent performance.

Products are suitable for schools, hospitals, commercial centers,residential, home users, is the first choice for FTTH

optical networking products.

Technology Parameters

Item	Unit	Parameter
Forward Performance Parameter
Optical Parameter
Receive Optical Power	dBm	-7 ~ +2
Propose Use Range	dBm	-3 ~ +1
Return Loss	dB	> 45
Optical Wavelength	nm	1100 ~ 1600
Connector Type		SC/APC
Fiber Type		Single Mode
Circuit Performance
C/N	dB	≥ 50
C/CTB	dB	≥ 65
C/CSO	dB	≥ 62
RF Parameter
Frequency Range	MHz	45/87 ~ 750/862
Flatness in Band	dB	±0.75
Rated Output Level	dBμV	≥ 85(-2dBm)
Max Output Level	dBμV	≥ 90
Output Return Loss	dB	≥ 14
Output Impedance	Ω	75
Return Transmit Performance Parameter
Optical Parameter
Optical Transmit Wavelength	nm	1310±10
Laser Type		FP Laser
Output Optical Power	mW	0.5 ~ 2
Connector Type		SC/APC
RF Parameter
Frequency Range	MHz	5 ~ 30/65
Flatness in Band	dB	±1.5
Input Level	dBμV	80 ~ 90
Input Return Loss	dB	≥ 16
Output Impedance	Ω	75
