Specifications
1.CATV Optical Mini Receiver2.Small size wall type
3.RF bandwidth 45~862MHz
4.1MW
5.Adopt GaAs
Name of this product:CATV Optical Mini Receiver with output power 1MW
Description
RDH8622 optical receiver is specialized in response to FTTH - Fiber to the home network of the group structure
introduced specialty products. This product has a high cost-effective, low-distortion, low power, high reliability,
small size, compact structure and the internal circuitry is reasonable, excellent performance.
Products are suitable for schools, hospitals, commercial centers,residential, home users, is the first choice for FTTH
optical networking products.
Technology Parameters
Item |
Unit |
Parameter |
Forward Performance Parameter | ||
Optical Parameter | ||
Receive Optical Power |
dBm |
-7 ~ +2 |
Propose Use Range |
dBm |
-3 ~ +1 |
Return Loss |
dB |
> 45 |
Optical Wavelength |
nm |
1100 ~ 1600 |
Connector Type |
|
SC/APC |
Fiber Type |
|
Single Mode |
Circuit Performance | ||
C/N |
dB |
≥ 50 |
C/CTB |
dB |
≥ 65 |
C/CSO |
dB |
≥ 62 |
RF Parameter | ||
Frequency Range |
MHz |
45/87 ~ 750/862 |
Flatness in Band |
dB |
±0.75 |
Rated Output Level |
dBμV |
≥ 85(-2dBm) |
Max Output Level |
dBμV |
≥ 90 |
Output Return Loss |
dB |
≥ 14 |
Output Impedance |
Ω |
75 |
Return Transmit Performance Parameter | ||
Optical Parameter | ||
Optical Transmit Wavelength |
nm |
1310±10 |
Laser Type |
|
FP Laser |
Output Optical Power |
mW |
0.5 ~ 2 |
Connector Type |
|
SC/APC |
RF Parameter | ||
Frequency Range |
MHz |
5 ~ 30/65 |
Flatness in Band |
dB |
±1.5 |
Input Level |
dBμV |
80 ~ 90 |
Input Return Loss |
dB |
≥ 16 |
Output Impedance |
Ω |
75 |

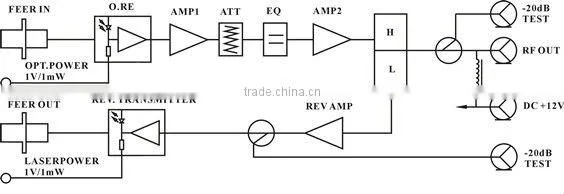

Principle drawing

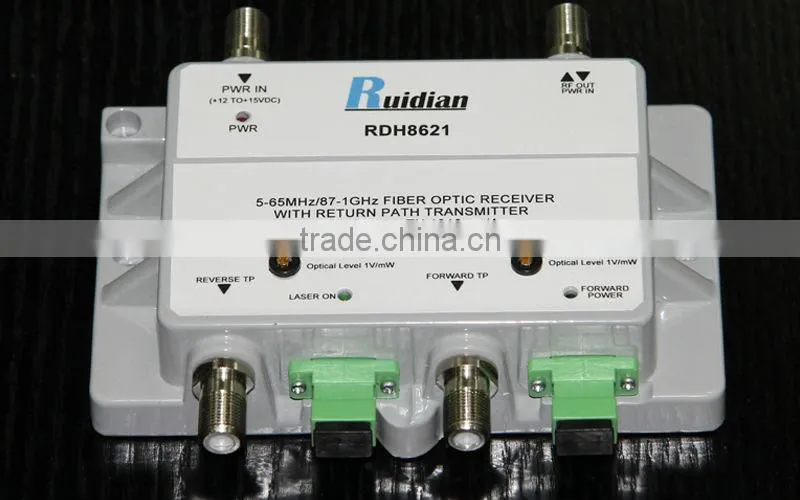

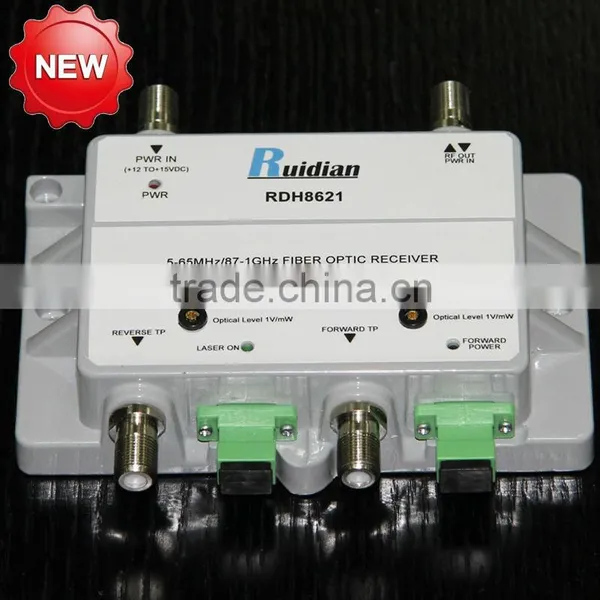

Product show
We are manufacturer of all CATV optical equipments such as FTTH optical receivers, Optical transmitters, Optical amplifier-EDFA , SAT-IF optical transmitters and receivers, Optic Transceiver Module and Optical Fiber Test instruments.
If you need optical equipments,please contact with me without hesitation!
