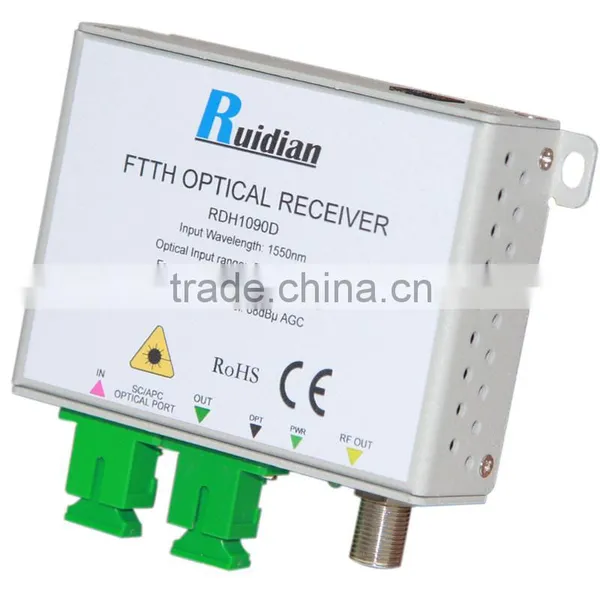

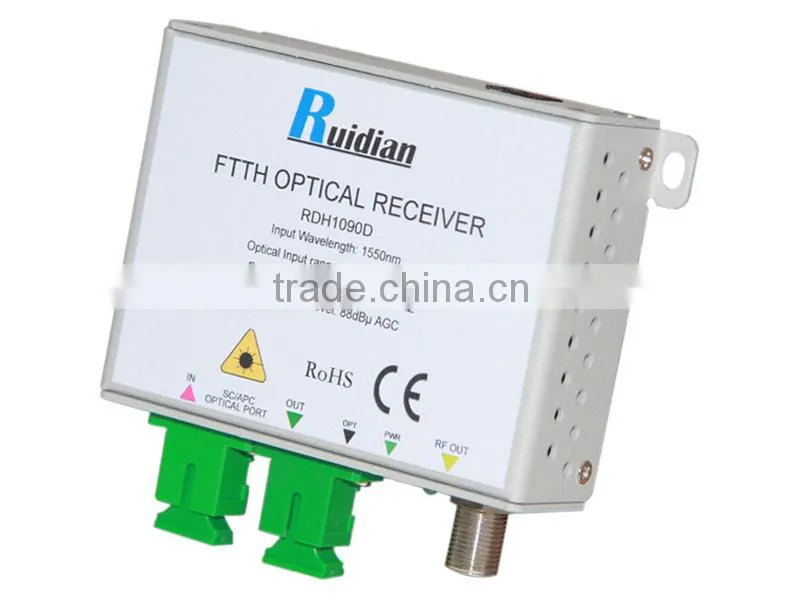

Name of this product: WDM optical receiver
The RDH1090D FTTH 1 Ways output CATV AGC receiver with work bandwidth 45-1000MHz, AGC function, output level Vo=88dBµV±1dB(Pin=-7~+1dBm), applies to xPON system, it is a low power consume, high performance ONU for RFTV broadcast network. RDH1090D optical receiver adopt high sensitivity optical receiving tube and Ruidian specialized low noise match circuit, 3.5%modulate full channel transmit power receiving and the CNR can reach high index 46dB. RDH1090R optical receiver has three types according to different functions.
RDH1090R optical receiver is standard type, RDH1090F optical receiver is build-in filter,
RDH1090D optical receiver is build in WDM widely used in PON systems. Customer could choose the suitable model according to their systems application.
|
RF Typical Performance |
||||||
Parameter |
Units |
Min Typical Max Supplement |
||||
Frequency |
MHz |
45 |
1000 |
|||
Flatness |
dB |
±0.75 |
||||
AGC |
dB |
±1 |
Pin:-7~+1dBm |
|||
Port |
1 |
|||||
RF port |
F-female |
|||||
Output level |
dBµv |
87 |
88 |
89 |
Pin:-7~+1dBm |
|
Return loss |
dB |
-16 |
||||
Output Impedance |
Ω |
75 |
||||
CNR |
dB |
46 |
||||
CSO |
dB |
66 |
||||
CTB |
dB |
68 |
||||
Optical Typical Performance |
||||||
Parameter |
Units |
Min Typical Max Supplement |
||||
Wavelength |
nm |
1540 |
1550 |
1560 |
Pass wavelength |
|
Responsivity |
A/W |
≥0.9 |
1310~1490nm |
|||
Return loss |
dB |
≥55 |
||||
Receiving power |
dBm |
-7 |
+1 |
|||
Optical connector |
SC/APC |
SC/APC or LC/APC |
||||
General feature |
||||||
Parameter |
Units |
Min Typical Max Supplement |
||||
Power supply |
V |
11 |
12 |
13 |
||
Power consume |
W |
3 |
||||
Work temp |
°C |
-20 |
+55 |
|||
Storage temp |
°C |
-40 |
+85 |
|||
Size |
cm |
10*8*2.4 |
W×D×H |
|||
Key Features |
Optical CATV home receiver |
Ultra low noise technology |
Very low distortion |
Wide range of optical input power |
Single-mode fiber high return loss |
F-female 75 ohm RF output |
Main application |
CATV HFC networks |
FTTH FTTP networks |
xPON system |
