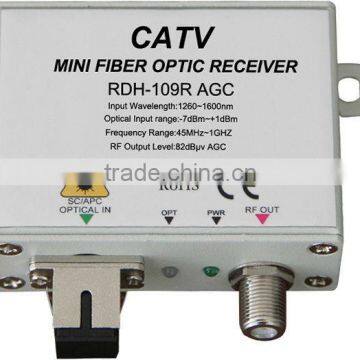

Ruidian CATV FTTH Mini Optical Node

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shanghai/Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	Ruidian
Model Number	RDH-108F CATV FTTH mini optical node

Product Description

Specifications

1.CATV FTTH mini optical node
2.Small size wall type
3.With AGC function
4.Bandwidth:45~1000MHz
5.build in filter

Name of this product: CATV FTTH mini optical node build-in filter

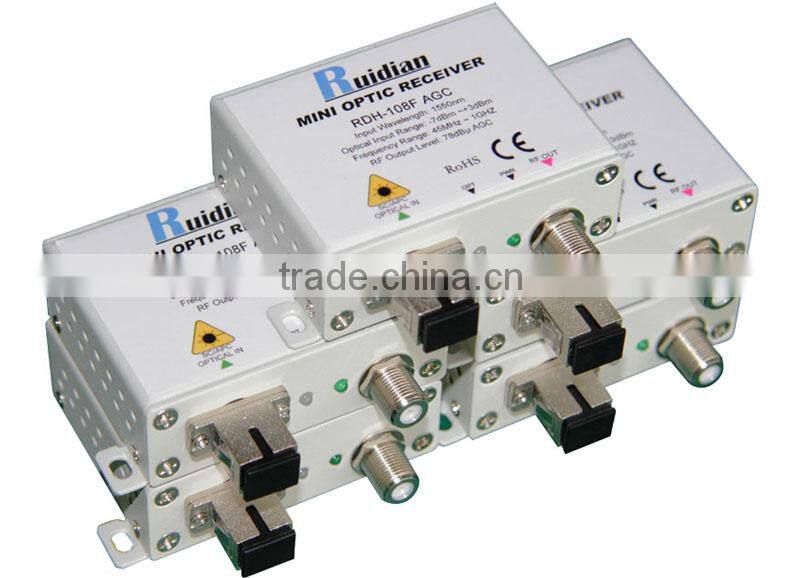

The RDH-108F FTTH 1 Way output CATV AGC receiver with work bandwidth 45-1000MHz, AGC function, output level Vo=76dBµV±1dB(Pin=-7~+1dBm), applies to FTTH system, it is a low power consume, high performance ONU for RFTV broadcast network. RDH-108F adopt high sensitivity optical receiving tube and Ruidian specialized low noise match circuit, 3.5%modulate full channel transmit power receiving and the CNR can reach high index 46dB. RDH-108R has two types according to different functions. RDH-108R is standard type, RDH-108F is build-in filter, RFTV operating in 1550nm. Customer could choose the suitable model according to their systems application.

RF Typical Performance
Parameter	Units	Min Typical Max Supplement
Frequency	MHz	45		1000
Flatness	dB		±0.75
AGC	dB		±1		Pin:-7~+1dBm
Port			1
RF port			F-female
Output level	dBµv	75	76	77	Pin:-7~+1dBm
Return loss	dB		-16
Output Impedance	Ω		75
CNR	dB	46
CSO	dB	65
CTB	dB	67
Optical Typical Performance
Parameter	Units	Min Typical Max Supplement
Wavelength	nm	1540	1550	1560
Responsivity	A/W		≥0.9
Return loss	dB		≥55
Receiving power	dBm	-7		+1
Optical connector			SC/APC		SC/APC or FC/APC
General feature
Parameter	Units	Min Typical Max Supplement
Power supply	V	11	12	13
Power consume	W		2
Work temp	°C	-20		+55
Storage temp	°C	-40		+85
Size	cm		872.4		W×D×H

Key Features

Optical CATV home receiver

Ultra low noise technology

Very low distortion

Wide range of optical input power

Single-mode fiber high return loss

F-female 75 ohm RF output

Main application

CATV HFC networks

FTTH FTTP networks

We are manufacturer of all CATV optical equipments such as FTTH optical receivers, Optical transmitters, Optical amplifier-EDFA , SAT-IF optical transmitters and receivers, Optic Transceiver Module and Optical Fiber Test instruments.

If you need optical receiver(optical node),please contact with me without hesitation!
