1.2.5G 1310nm 40Km SFP Transceiver2.1310 DFB laser transmitter
3.Duplex LC connector
4.Up to 40km on 9/125um SMF
2.5G 1310nm 40Km SFP Transceiver
Product Features
1.Duplex LC connector
2.Hot-pluggable SFP footprint
3.1310nm DFB laser transmitter
4.RoHS compliant and Lead Free
5.Up to 40km on 9/125um SMF
6.Metal enclosure for lower EMI
7.Single 3.3V power supply
8.Low power dissipation <600mW
9.Commercial operating temperature range: 0°C to 70°C
Applications
1.SONET OC-48 / SDH STM-16
2.Gigabit Ethernet / Fiber Channel
General
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 2.488Gbps/2.125Gbps and 40km transmission distance with SMF. They are RoHS compliant and lead-free

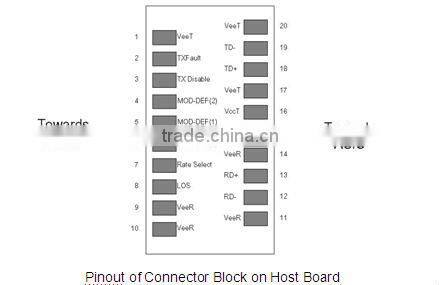

Pin descriptions
Pin | Symbol | Name/Description | Ref. |
1 | VeeT | Transmitter Ground (Common with Receiver Ground) | 1 |
2 | TX Fault | Transmitter Fault | |
3 | TX Disable | Transmitter Disable. Laser output disabled on high or open. | 2 |
4 | MOD_DEF(2) | Module Definition 2. Data line for Serial ID. | 3 |
5 | MOD_DEF(1) | Module Definition 1. Clock line for Serial ID. | 3 |
6 | MOD_DEF(0) | Module Definition 0. Grounded within the module. | 3 |
7 | Rate Select | No connection required | |
8 | LOS | Loss of Signal indication. Logic 0 indicates normal operation. | 4 |
9 | VeeR | Receiver Ground (Common with Transmitter Ground) | 1 |
10 | VeeR | Receiver Ground (Common with Transmitter Ground) | 1 |
11 | VeeR | Receiver Ground (Common with Transmitter Ground) | 1 |
12 | RD- | Receiver Inverted DATA out. AC Coupled | |
13 | RD+ | Receiver Non-inverted DATA out. AC Coupled | |
14 | VeeR | Receiver Ground (Common with Transmitter Ground) | 1 |
15 | VccR | Receiver Power Supply | |
16 | VccT | Transmitter Power Supply | |
17 | VeeT | Transmitter Ground (Common with Receiver Ground) | 1 |
18 | TD+ | Transmitter Non-Inverted DATA in. AC Coupled. | |
19 | TD- | Transmitter Inverted DATA in. AC Coupled. | |
20 | VeeT | Transmitter Ground (Common with Receiver Ground) | 1 |
Notes
1. Circuit ground is internally isolated from chassis ground.
2. Laser output disabled on TX Disable >2.0V or open, enabled on TX Disable<0.8V.
3. Should be pulled up with 4.7k - 10kohms on host board to a voltage between 2.0V and 3.6V.
MOD_DEF(0) pulls line low to indicate module is plugged in.
4. LOS is LVTTL output. Should be pulled up with 4.7k ~10kohms on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.

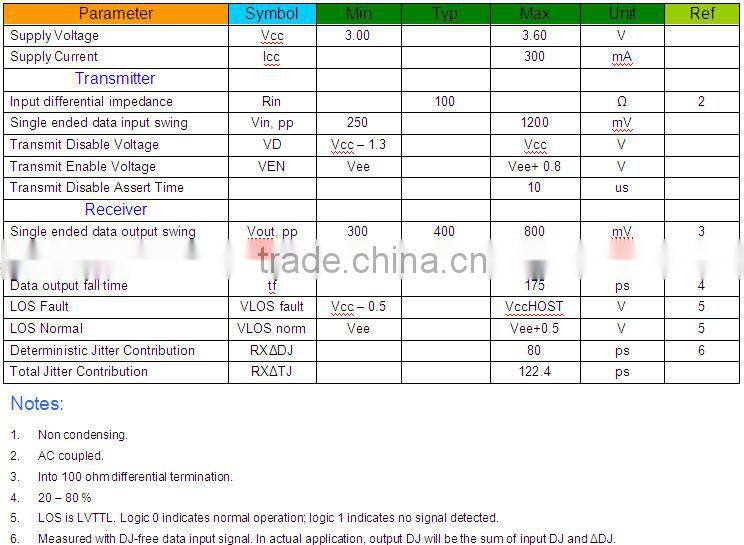

Electrical characteristics (TOP=25°C,Vcc=3.3Volts)

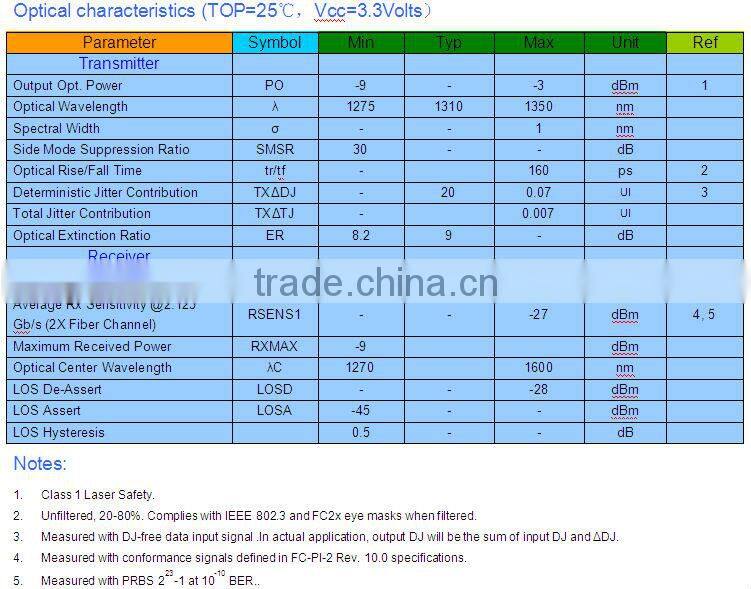

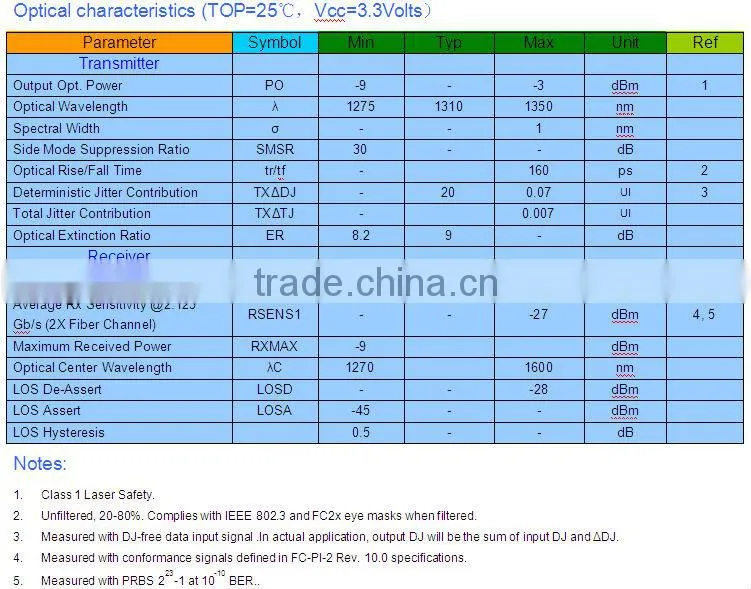

Optical characteristics (TOP=25°C,Vcc=3.3Volts)

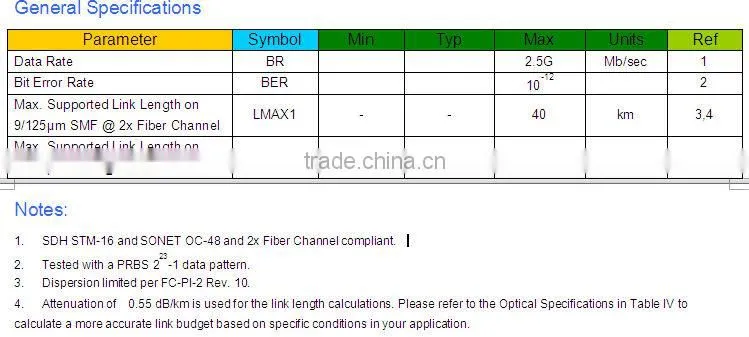

General Specifications
Environmental Specifications
Commercial Temperature BIDI SFP transceivers have an operating temperature range from 0°C to +70°C case temperature.

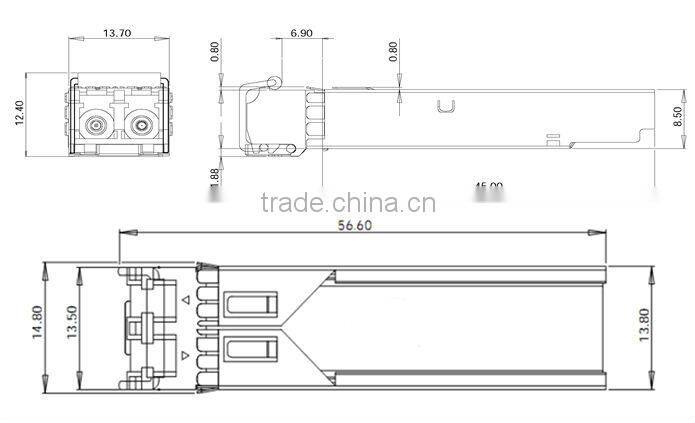

Mechanical Specifications
Small Form Factor Pluggable (SFP) transceivers are compatible with the dimensions defined by the SFP Multi-Sourcing Agreement (MSA).

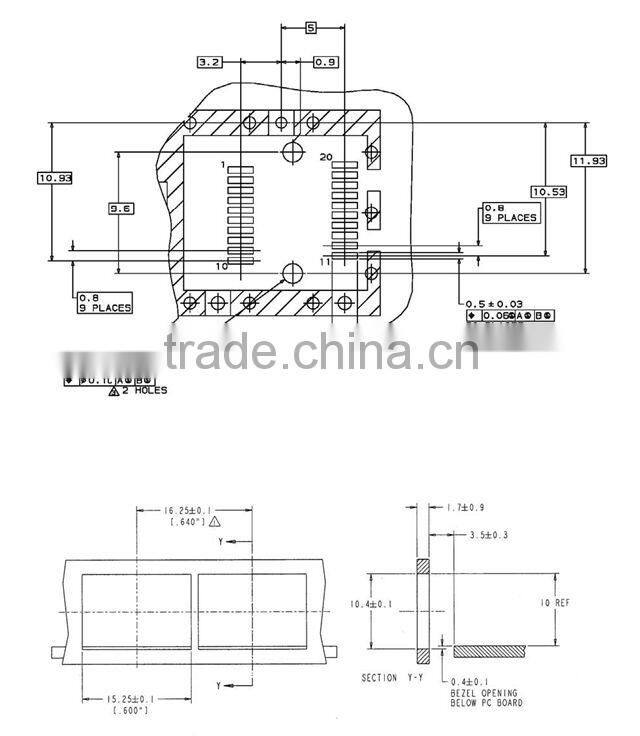

PCB Layout and Bezel Recommendations
