Help CenterManufacturer 700MHz-2700MHz High Gain 4g Modem External Lte Panel Antenna
Related Products
-
Indoor Long Range Omni External 4G Lte Antenna AntennaUS$ 4.5 - 6MOQ: 100 Pieces -
Waterproof High Gain Wide Band Outdoor Long Range 4G Lte External Panel AntennaUS$ 5 - 11MOQ: 100 Pieces
-
Broadband 7dBi External GSM 3G 4G Lte Antenna With SMA(M) Connector for 4g Huawei Modem or RouterUS$ 1 - 2MOQ: 100 Pieces
-
High Gain Outdoor MIMO 4G Lte AntennaUS$ 3.8 - 5.6MOQ: 100 Pieces
-
New Design External GSM/3g/4g Lte Antenna With SMA MaleUS$ 1 - 3MOQ: 100 Pieces
Digital car tv antenna
Technical details
Product Name |
GSM/3G/4G LTEAntenna |
Model |
BIO-G503 |
|
Frequency Range |
698-960MHz |
Gain |
15dbI |
Impedance |
50 Ohm |
Polarization |
Linear Vertical |
Cable |
RG-174/*1.5C-2V |
Connector |
SMA(M) |
Size |
146*146**20mm |
Product
Product
Product
Product
Product
Product
Product’s featureso
4G Antenna (BIO-G503) |
|
The 4G Whizz 4G Antenna is a desk or window mounted 4G antenna using the rubber suction cup or can be wall mounted using the wall mounting hole at the rear of the antenna.
The 4G Whizz is a MiMo (Multiple In Multiple Out) 4G Antenna designed to provide reliable 4G connection for a wide range of 4G devices. This means that it has two connectors so can connect to the Main and Aux antenna ports of 4G routers that support MiMo antenna connection.
This 4G antenna is supplied with 2m long cable with SMA/M connectors making it easy to connect to the majority of routers that use this proper type of screw connector for their antennas. For other manufacturers that use the more flimsy push in type connectors (TS9 and CRC9), then the 4G Whizz antenna is also supplied with SMA to TS9 adapter and also SMA to CRC9 adapter.
The 4G Whizz 4G Antenna has a peak Gain of 15dBi and when combined with the cross-polarized dual antennas inside the antenna housing with 45 degree angle between them, this makes it the ideal antenna to provide a reliable, high speed 4G connection.
The 4GWhizz is an Omni Directional antenna so it can be positioned anywhere and does not require pointing to a particular cell site. |
Baiao
Certification - Quality & Reliability

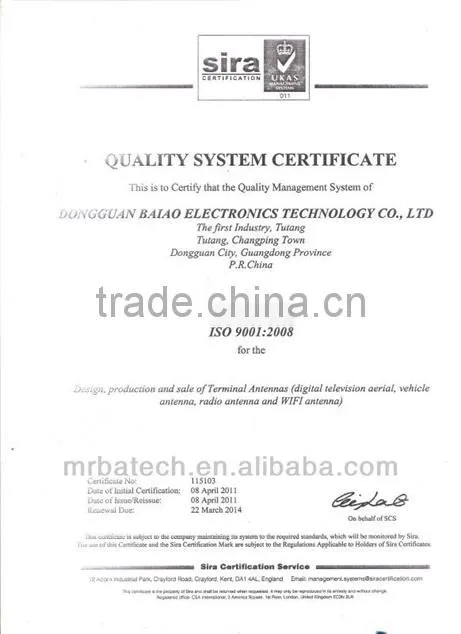

ISO9001:2008
Our produce process conform to ISO 9001:2008 international quality system certifications.
Quality Control personnel check the quality at every stage of production,
from the incoming raw materials to the finished product.
ROHS
The CB/DVB/DVB-T2/WIFI/GSM Antenna that our company develops,
all matches the EU ROHS standard through strict quality control.
Baiao
Customized Service
OEM & ODM …
Baiao creates multiple solutions to fit orders against customer’s samples specifying design,
specifications and packaging requirement.
Baiao solutions compete successfully with more expensive antenna systems and open up new market opportunities
where antenna has previously been cost prohibitive.
Baiao
Responsible

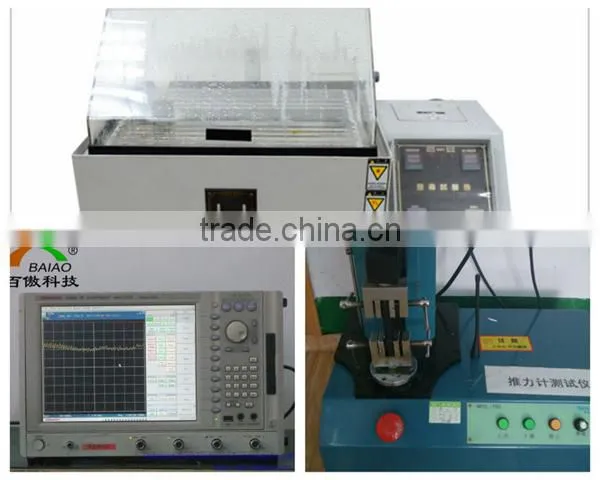

QC /R&D equipment
Quality Control personnel check the quality at every stage of production,
from the raw materials run into the finished product.
QC team: 10 -19 staff
R & D team: 10 -19 staff

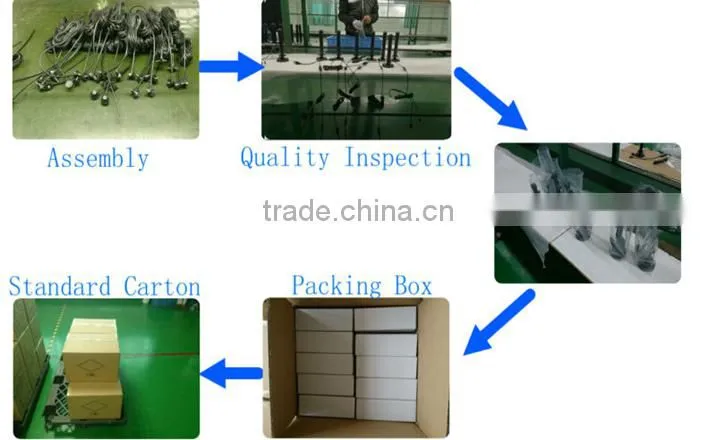

Packing Procedure
Baiao
Service
Technical support
For any technical question,
our engineer team will analysis as well as feedback the optimum solution.
Professional consultation
Complying with your requirement,
we will reply your inquiry & question at our earliest manner.
We shall be pleased to put forward the available reference opinion for the target marketing.
Support for the supply chain planning
Baiao Ltd to co-ordinate with your supply chain system,
Which includes Supply Chain Management (SCM) /
Collaborative Planning Forecasting and replenishment (CPFR) / Inventory control.
