chocolate machine
- Shanghai or Ningbo China
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Newtang | |
| Model Number | NTM-QMJ | Type | Other, chocolate machine | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

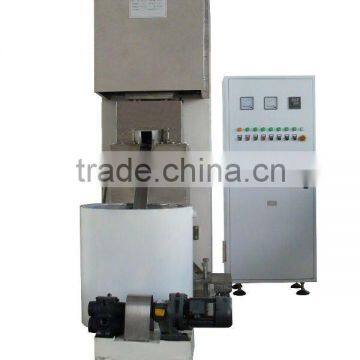

chocolate ball milling
This machine is used for fine grinding the chocolate paste material.It is a special machine for fine milling chocolate mass and its admixture. Through the impact and friction between the material and the steel balls inside the vertical cylinder, the mass is fine milled into the required fineness.
The body is Q235 carbon steel with paint,tank is stainless steel 304.The impellers and balls are Gcr15 bearing steel after heat treatment,the balls are 5mm,it is about 180kg balls in each machine.The shaft is 40Cr.
The power of gear motor is 15kw and heater of hot water is 6kw.
Technical Data:
Model NTM-QMJ250
Main motor 15kw
Spindle Speed 250-500rpm
Grinding Medium 180kg(weight of balls)
Average Process Ability 150-250L/hour
Cooled Water: 1500kg/h
Temperature: 15-20°C
Outside Dimension: 1240x1250x2250mm
Weight of machine 2000kgs
