Chocolate Enrobing Line

Chocolate Enrobing Line photo-1
US$ 20,000 - 50,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Newtang
Model Number:
NTM-TYJ
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Newtang
Model Number NTM-TYJ
Type Other, chocolate machine
After-sales Service Provided Engineers available to service machinery overseas

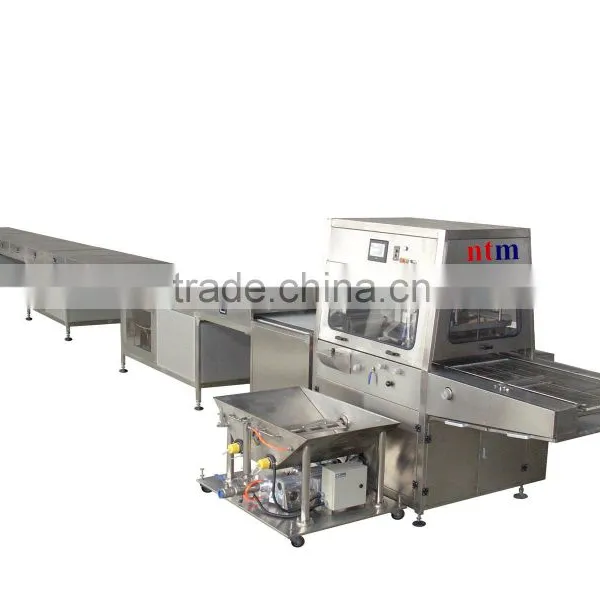

Chocolate Enrobing Line

This chocolate enrobing line is primarily used to coat chocolate on various food, such as biscuit, wafers, cake and snacks etc. It can coat bottom of products, whole of products, it can also be equipped with decorator.

The material of the conveyor belt is food grade PU. The frames, insulation plates, mesh belt and other parts which come into contact with products are manufactured in Stainless Steel 304.There are Siemens PLC and touch screen to control the whole line. The inner layer of the jacket tank (hopper) under the enrober is manufactured in Stainless Steel 304, the jacket tank can be pulled out to clean.

Main motors with gearboxes are SEW brand( motor and gearbox for conveyor belt of cooling tunnel, motor and gearbox for mesh belt, motor and gearbox for chocolate feeding pump under the enrober, other motors are Chinese brands). We use SMC cylinders to make sure the conveyor belt will move straightly. Compressors are Copeland brands (factory in China). Under the enrober, there is a SJB30Y chocolate feeding pump (SS304 head) to feed chocolate mass back to chocolate storage tank.



We have CE Certificate for our Chocolate Erobing Line.

Technical Data:



Model

Mesh belt width (mm)

Temperature of cooling tunnel

Speed

(m/min)

Power

(kw)

Weight

(kg)

Dimension

(m/min)

TYJ400

350

0-10 °C

0~7

9.17

2000

L*940*1800

TYJ600

550

0-10 °C

0~7

9.17

2300

L*940*1800

TYJ800

750

0-10 °C

0~7

9.17

2800

L*1400*1800

TYJ1000

950

0-10 °C

0~7

12

3600

L*1650*1800

TYJ1200

1150

0-10 °C

0~7

12.5

4000

L*1850*1800
