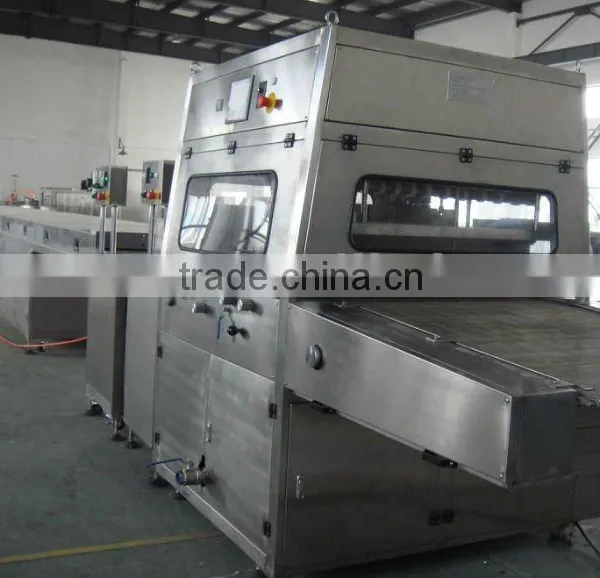

Chocolate Enrobing Machine

chocolate enrobing machine

This machine is a special equipment for coating assorted chocolate.It can coat on the surface of all kinds of foods,such as candy,cake and biscuit ,etc. with thick chocolate liquid,creates many kinds of chocolate products with various flavors.

Option 1:

The material of the convey belt is PU. The speed controller is inverter.The interface with chocolate material are made of stainless still SS304,the heat preservation board are fiber.

Option 2:

The material of the convey belt is PU. The speed controller is inverter.All are made of stainless still SS304 except the standard parts. Simens PLC with touch screen.

Technical Data:

Model                                                                TYJ1000I (stainless steel)

Mesh Belt Width                                            1000mm

Mesh Belt Speed                                           0-8m/min

Conveyor Belt Width                                    1000mm

Convey Belt Speed                                        0-8m/min

Tunnel Working Temperature                    0-10°C

Length of cooling tunnel                              26.9m

Power                                                              12kw(except 3units 8HP compressors)

Weight                                                             4000kg

Dimension                                                      29250*1650*1800
