US$ 50,000 - 120,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
NTM
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Zhejiang, China
Brand Name NTM
Model Number NTM-203
Application Candy
Voltage any voltage
Power(W) 32kw
Weight 8000kg
Dimension(L*W*H) 22.4*2.7*2.6
Certification CE
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

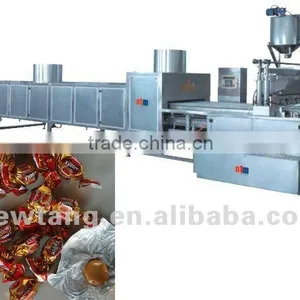

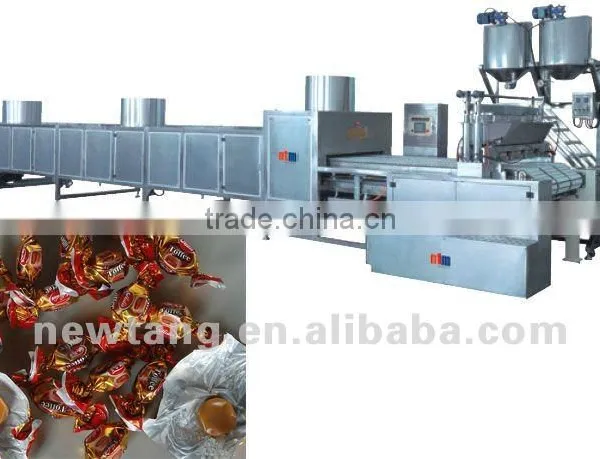

NTM-203 is the perfect toffee depositing machine. It can make one color of  pure toffee, double color toffee, centre filling toffee and striped toffee. Different capacity/output machine is available.



We also have servo motors toffee depositing machines, it will fill  precisely and easy operation.





Technical Data

Model

NTM-203-1

NTM-203-2

NTM-203-3

NTM-203-4

Capacity

150KGS/HR

300KGS/HR

450KGS/HR

600KGS/HR

Max weight/grain

7G

7G

7G

7G

Speed

60N/MIN

60N/MIN

60N/MIN

60N/MIN

Steam consumption   (kg/h)

250

250

500

500

Steam pressure       (Mpa)

0.2-0.6

0.2-0.6

0.2-0.6

0.2-0.6

Conditions needed for cooling system



1.Room temperature(°C)

22-25

22-25

22-25

22-25

2. Humidity (%)

55

55

55

55

List of main equipments:

The whole line includes two parts, the kitchen equipment and toffee depositing equipment.

LIST OF MAIN EQUIPMENTS

1     DISSOLVING COOKER(SUS304) 1 pcs

2     SYRUP PUMP(SUS304) 1pcs

3     TOFFEE BATCH COOKER 1pcs

4     STORAGE TANKS WITH MIXERS(SUS304) 1pcs

5     PIPE AND ACCESSARY(SUS304) 1 sets

6     ELECTRIC PANELS(SCHNEIDER BRAND) 1 sets

7     DEPOSITING MACHINE(SUS304 SHELL) 1pc

8     PLC CONTROL SYSTEM(SIEMENS BRAND) 1pc

9     DOUBLE COLORS HOPPERS,DISTRIBUTING,1 UNIT PIPE AND ACCESSARY SUS304 1set

10   SILICON MOULD 1 SET

11 ELECTRIC COMPONENTS ARE SCHNEIDER BRAND. 1set
