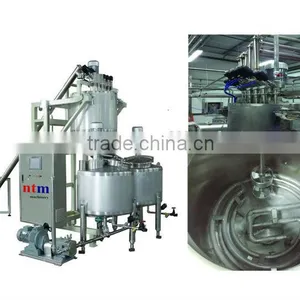

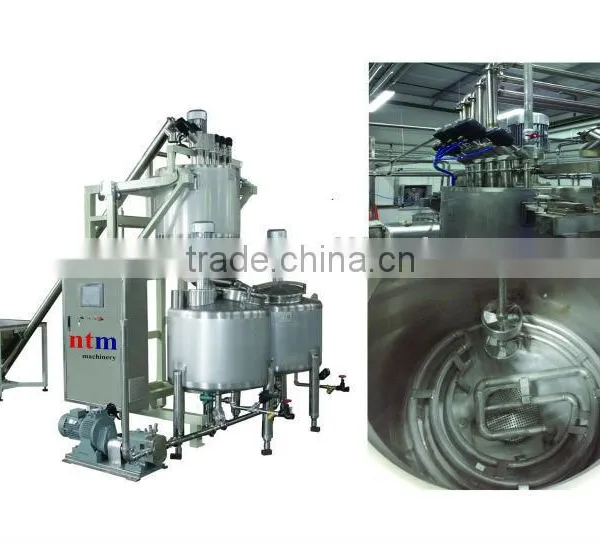

This automatic batching system is a weighing and mixing plant, electronically controlled with a micro processor, for the preparation of a pre-heated slurry necessary for the production of gums and jelly. The jacketed weighing vessel is mounted in a frame on a 3 point load cell assembly. The lower holding vessel has a heating coil within it to keep the premix at the correct temperature. The system is available in a sophisticated version with PLC control system and operating screen or a dedicated batch weighing controller (economy execution). The system can be used in conjunction with a thermal oil heat exchanger system to guarantee the correct premix temperature with a minimal temperature difference between premix and heating medium.
Technical Data
| Model NO. | NTM-ZPX-11 | NTM-ZPX-12 |
| Capacity(Kg/h) | 600~750 | 1200~1500 |
| Power(Kw) | 14.7 | 17.7 |
| Compressed air comsumption(m3/min) | 0.4 | 0.5 |
| Steam consumption (kg/h) | 100 | 200 |
| Steam pressure (Bar) | 8 | 8 |
| Mixing tank(L) | 280 | 280 |
| Dissolving tank(L) | 320 | 320+320 |
| Size of machine(mm) | 2100*1400*3060 | 2100*1800*3060 |
| Weight of machine(Kg) | 1000 | 1300 |
