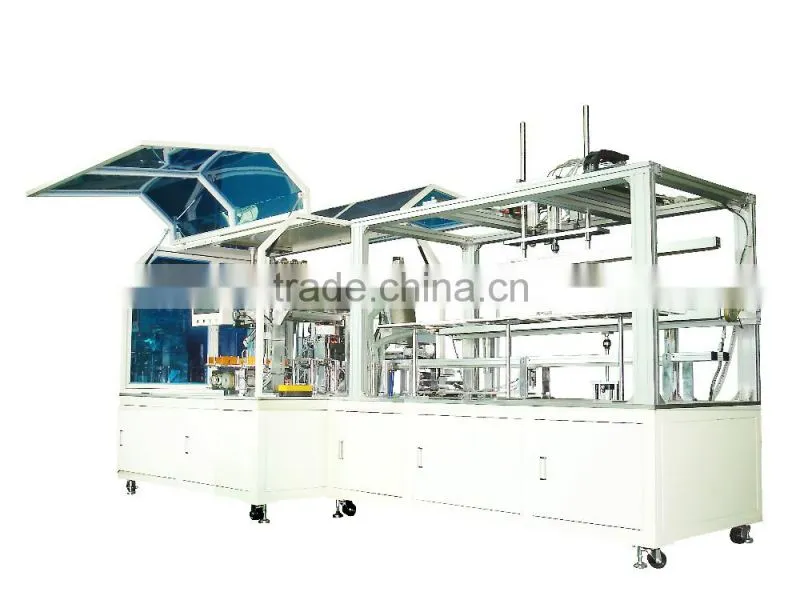

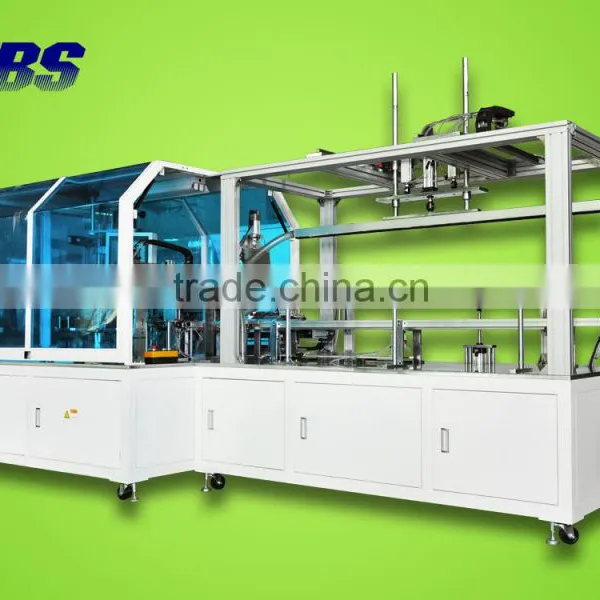

New Design HBS-SF600A Solar Tabber Stringer for 3BB and 4BB
Main technical parameters
NO. | Items | Parameters | Remarks |
1 | Name | solar battery cells automatic tabber stringer |
|
2 | Model | HBS-SF600A |
|
3 | Welding Speed | About 450~600Pics/Hour |
|
4 | Battery cells dimension | 30~125*125mm;30~156*156mm |
|
5 | Maximum length of battery string | 1950mm |
|
6 | Interval between battery cells | 0.8-2.5mm(adjustable) |
|
7 | Debris rate | ≤3‰ |
|
8 | Qualified rate | ≥98% |
|
9 | Welding stings quantity | single string |
|
10 | Welding way | Infrared heating welding |
|
11 | Welding Temperature | Normal temperature~400℃ (Adjustable) |
|
12 | Lamp working life | ≥3000 Hours |
|
13 | Operation Interface | PLC Touch-screen |
|
14 | Language | Chinese or English(switchable) |
|
15 | Power requirements | 50-60Hz/AC380V |
|
16 | Peak power | 12Kw |
17 | Rated power | 10kw |
|
18 | Air requirements | 0.4-0.8Mpa clean and dry air |
|
19 | Gas consumption | About 200Litres/Hour |
|
20 | Machine dimension | L3900*W1500*H1800(mm) |
|
21 | Machine weight | About 2.5 tons |

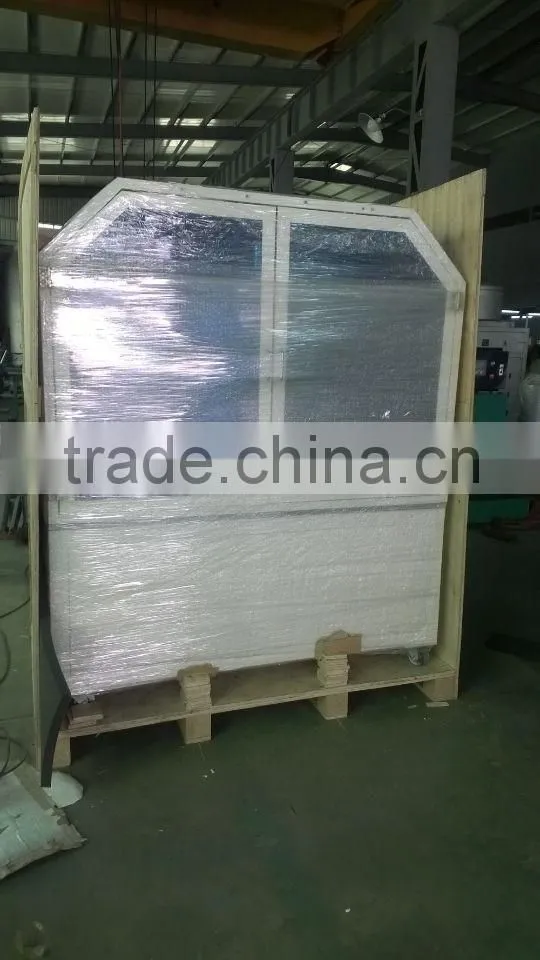

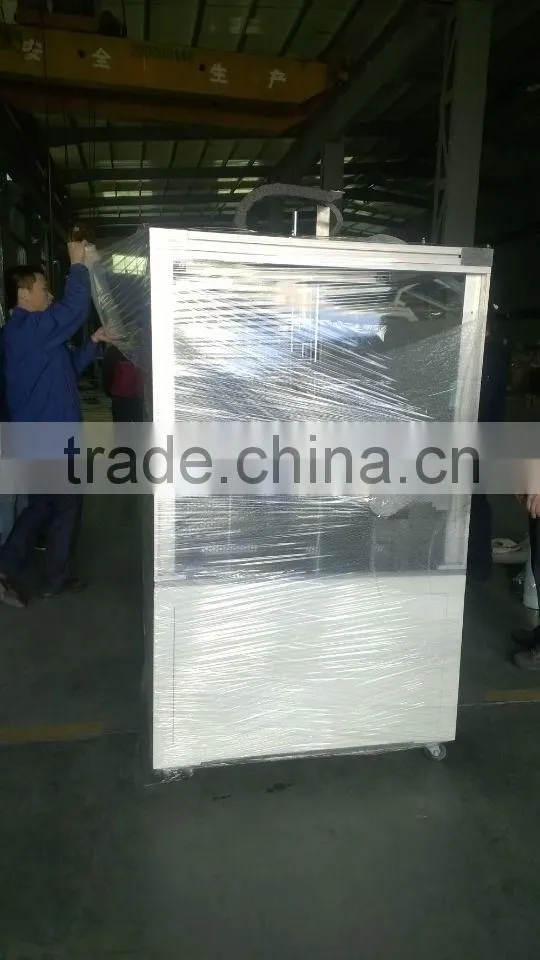

Package and shipping

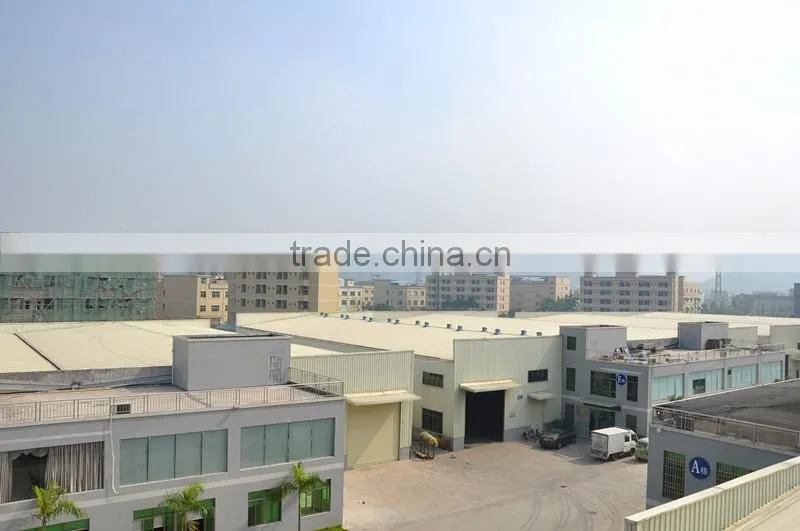

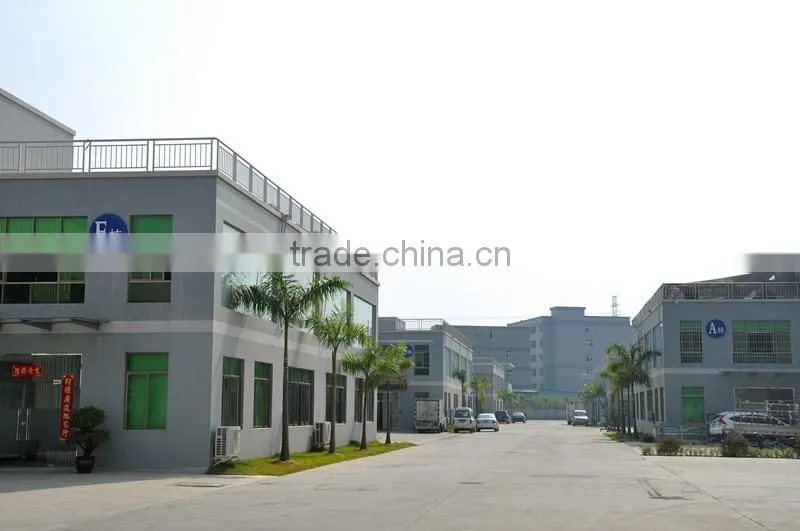

Welcome to our factory and expect our cooperation
HBS Automatic Device & Technology Co.,Ltd is a new high-tech enterprise which devotes to researching and developing automatic devices and PV modules assembly-line products in the solar industry. It covers research and development,design,manufacture,sales and service,and has high-quality R & D team.
Our company,based on the idea of helping the solar module production enterprises to save labor costs,increase productivity and improve stability,focus on R&D innovation,safety and efficient production,precision strict test to ensure availability and stability of the machine.
Now our main products include:solar battery cells automatic tabber stringer,solar backing cells(EVA/TPT)automatic cutting machine,solar backing manually cutting machine and so on.
As a new energy,automation of the solar industry is bound to become an inevitable development trend! We would like to create a better future with you.
