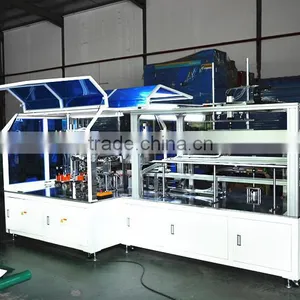

New Design HBS Gig Size Solar Tabber Stringer for 3BB and 4BB
Main technical parameters
NO. |
Items |
Parameters |
Remarks |
1 |
Name |
solar battery cells automatic tabber stringer |
|
2 |
Model |
HBS-SF600A |
|
3 |
Welding Speed |
About 450~600Pics/Hour |
|
4 |
Battery cells dimension |
30~125*125mm;30~156*156mm |
|
5 |
Maximum length of battery string |
1950mm |
|
6 |
Interval between battery cells |
0.8-2.5mm(adjustable) |
|
7 |
Debris rate |
≤3‰ |
|
8 |
Qualified rate |
≥98% |
|
9 |
Welding stings quantity |
single string |
|
10 |
Welding way |
Infrared heating welding |
|
11 |
Welding Temperature |
Normal temperature~400℃ (Adjustable) |
|
12 |
Lamp working life |
≥3000 Hours |
|
13 |
Operation Interface |
PLC Touch-screen |
|
14 |
Language |
Chinese or English(switchable) |
|
15 |
Power requirements |
50-60Hz/AC380V |
|
16 |
Peak power |
12Kw |
17 |
Rated power |
10kw |
|
18 |
Air requirements |
0.4-0.8Mpa clean and dry air |
|
19 |
Gas consumption |
About 200Litres/Hour |
|
20 |
Machine dimension |
L3900*W1500*H1800(mm) |
|
21 |
Machine weight |
About 2.5 tons |
Package and shipping
Welcome to our factory and expect our cooperation
HBS Automatic Device & Technology Co.,Ltd is a new high-tech enterprise which devotes to researching and developing automatic devices and PV modules assembly-line products in the solar industry. It covers research and development,design,manufacture,sales and service,and has high-quality R & D team.
Our company,based on the idea of helping the solar module production enterprises to save labor costs,increase productivity and improve stability,focus on R&D innovation,safety and efficient production,precision strict test to ensure availability and stability of the machine.
Now our main products include:solar battery cells automatic tabber stringer,solar backing cells(EVA/TPT)automatic cutting machine,solar backing manually cutting machine and so on.
As a new energy,automation of the solar industry is bound to become an inevitable development trend! We would like to create a better future with you.
