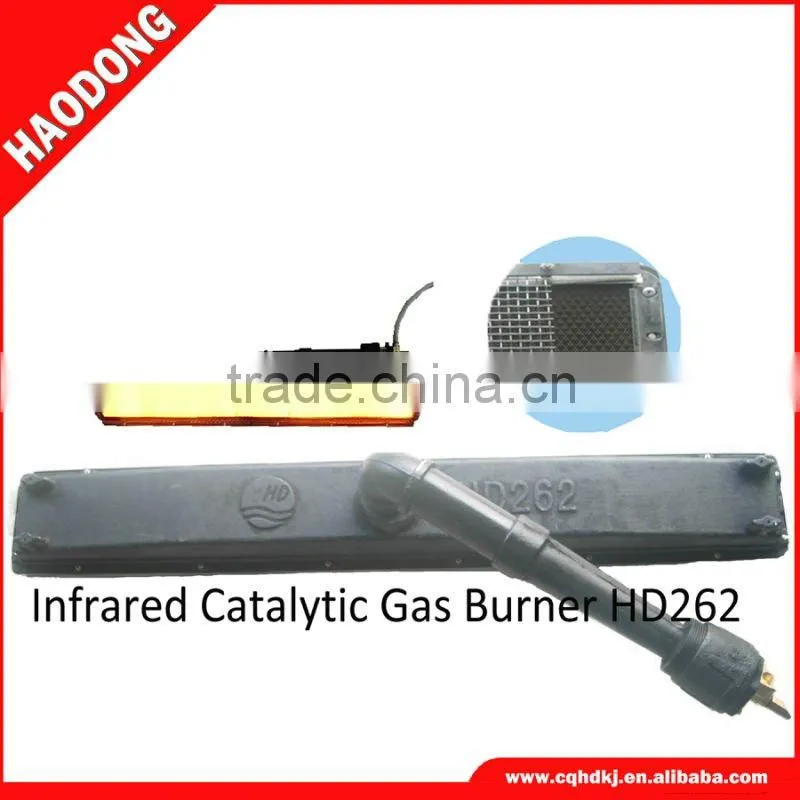

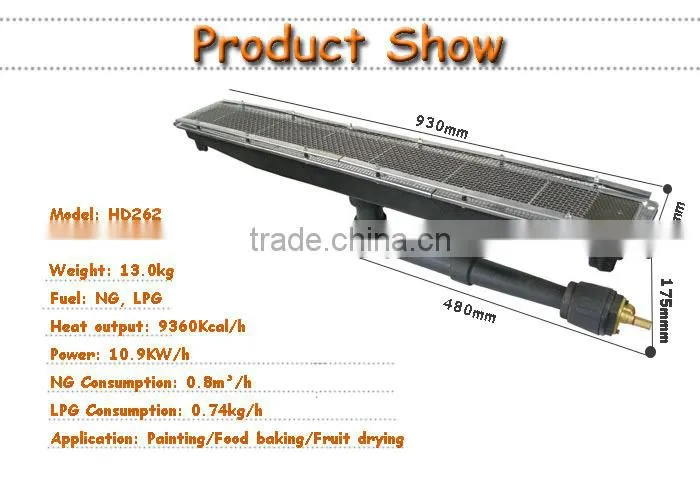

infrared gas road asphalt machine heater parts HD262
Model |
Length (mm) |
Width (mm) |
Hight(mm) |
Weight (kg) |
Consumption |
Heat Output |
Inlet Port (Inch) |
||
NG |
LPG |
||||||||
m3/h |
kg/h |
KW/h |
Kcal/h |
3/8 |
|||||
HD262 |
930 |
130 |
175 |
13.0 |
0.80 |
0.74 |
10.09 |
9360 |
|
Other models infrared gas road asphalt heater for choosing :
| MODEL | Dimension | Weight | Gas Type | Heat Output | Consumption | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
| HD61 | 423*80*94 | 3.8 | NG/LPG | 2.4 | 2030 | 0.18 | 0.18 |
| HD82 | 219*164*108 | 4.8 | NG/LPG | 3.1 | 2700 | 0.24 | 0.24 |
| HD101 | 690*80*115 | 6.9 | NG/LPG | 3.9 | 3380 | 0.3 | 0.29 |
| HD162 | 570*130*175 | 8 | NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD242 | 840*130*175 | 11.7 | NG/LPG | 9.4 | 8120 | 0.75 | 0.71 |
| HD262 | 930*130*175 | 13 | NG/LPG | 10.9 | 9360 | 0.8 | 0.82 |
Material Descriptions of infrared gas road asphalt heater
Shell:gray cast iron
Upper cover:stamped stainless iron
Burning net:Fe-Cr-Al material
Nozzle:brass
Core components:cordierite honeycomb burner plates with rare-earth catalyst-coated
The Technical datas of infrared gas road asphalt heater
Table 1:The use of technical parameters
Items |
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG) |
Light-off temperature |
≥350 |
complete combustion temperature |
≤380 |
|
Heat source temperature
|
around 850 |
Baking temperature range |
30---850 |
Wavelength range |
1.9µm--15µm |
|
Furnance pressure
|
2000pa(NG)/2800pa(LPG) |
Table 2:
Comparison table for different kinds of fuels and heater's energy consumption
|
Furnace type Parameters |
Electronic cooker |
Oil furnace | Coal-fired furnace | Infrared heater | Infrared catalytic heater |
|
Energy requirement |
10,000Kcal |
10,000Kcal |
10,000Kcal |
10,000Kcal |
10,000Kcal |
|
Temperature |
180 |
180 |
180 |
180 |
180 |
| Energy consumption |
Electricity(15 kW/h) |
Electricity (1Kw/h)+ diesel (2Kg) |
Coal (10Kg) |
LPG(1.0Kg) | LPG(0.9Kg) |
|
Marketing price |
RMB12 |
RMB7 |
RMB2.3 |
RMB3 |
RMB2.7 |
|
Heating time |
20 minutes | 40 minutes | 90 minutes | 6-10 minutes |
5-8 minutes |
Advantages of infrared gas road asphalt heater :
- Energy saving: conversion rate≥90%
- Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
- Whole combustion: 95% of energy released in the form of infrared ray; heating the objects directly
- Long useful time: above 11000hr
- Easily installed
Applied Range fo infrared gas road asphalt heater :
Drying industry: Vegetable & fruit drying line,Tea crank up line, herb drying line,deactivation of enzymes
Food Industry: Rice Biscuit assembly line, grilled chicken, egg roll, roasting shredded squid oven etc.
Painting Industry: Powered painting assembly line, warm-up, preliminary treatment of heating, desiccating wood, galvanization drying assembly line, phosphatization drying assembly line
Fiber industry: Carpet latex dryer, dyeing dryer, printing dryer, textile dryer, latex gloves drying line.
Glass and ceramics industry: Enamel firing dryer, glass oven, heat-setting machine, mould drying, fritting.
Paper industry: All kinds of paper dry lines and auxiliary drying heat wall
Farming and animal husbandry: Heating of barton, heating of crops, grain dryer.
