Home > Products > Room Gas Heater > infrared ceramic natural gas burner for boilers (HD101)

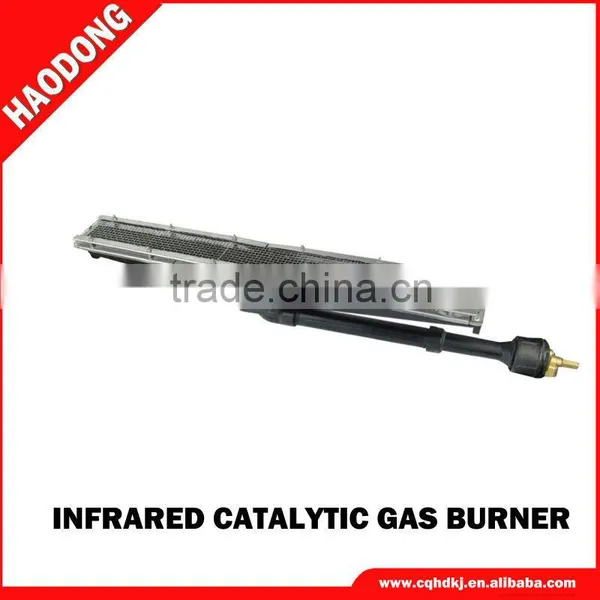

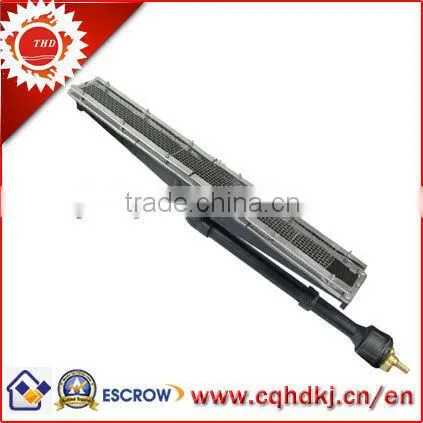

infrared ceramic natural gas burner for boilers (HD101)
- 3000 Piece / Pieces per Month
- Chongqing China
- T/T Credit Card
Product Details
Condition: | New | Type: | Other, industrial oven, powder coating oven, painting oven, catalytic infrared gas burner | Usage: | Other, drying, curing, surface painting, heat treatment |
Place of Origin: | Chongqing, China | Brand Name: | HD | Model Number: | HD101 |
Voltage: | 110/220VAC | Power(W): | 3.9KW/h | Dimension(L*W*H): | 690*80*115mm |
Weight: | 7.4KG | Certification: | TUV | Warranty: | 1 year |
After-sales Service Provided: | No overseas service provided |
Product Description
About us:
~Haodong technology now is the first and only company who apply rare-earth catalytic combustion technology on infrared burner!!
It make a whole combustion and save 10%-20% energy than non-catalytic IR heater. At the same time,it can prolong the use life of ceramic plate.
Now we mainly manufacture industrial oven burners, powder coating oven burner, bbq burners, infrared heaters.
infrared ceramic natural gas burner for boilers (HD101)
Model | Length (mm) | Width (mm) | Hight(mm) | Weight (kg) | Consumption | Heat Output | Inlet Port (Inch) | ||
NG | LPG | ||||||||
m3/h | kg/h | KW/h | Kcal/h | 3/8 | |||||
HD101 | 690 | 80 | 115 | 6.9 | 0.30 | 0.28 | 3.9 | 3380 |
Other models for choosing :
Material Description:
Shell:gray cast iron
Upper cover:stamped stainless iron
Burning net:Fe-Cr-Al material
Nozzle:brass
Core components:cordierite honeycomb burner plates with rare-earth catalyst-coated
Advantages:
- Energy saving: conversion rate≥90%, save 20% energy
- Environmental friendly: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
- High efficiency: it can come to working condition in 8seconds.
- Long life-span: ≥11000h
- Installed in all direction
the most big Advantages: Energy-saving and High Efficiency!!
Comparison table for all kinds of energy consumption
Furnace type Parameters | Electronic | Oil furnace | Coal-fired furnace | Infrared catalytic heaters |
Energy requirement
| 10,000Kcal | 10,000Kcal | 10,000Kcal | 10,000Kcal |
Temperature | 180 | 180 | 180 | 180 |
Energy consumption |
Electricity(15 kW/h)
| Electricity (1Kw/h)+ diesel (2Kg) |
Coal (10Kg)
| LPG(0.9Kg) |
Heating time | 20 minutes | 40 minutes | 90 minutes | 5-8 minutes |
Applied Range :
Heating Industry: workshop heater, sports hall heater, home heater, patio heater, greenhouse heater etc.
Food Industry: Rice Biscuit assembly line, grilled chicken, biscuit, egg roll, roasting shredded squid oven, oven for roast duck, smokeless oven, middle eastern oven, baking, etc.
Painting Industry: Liquefied or powered painting assembly line, warm-up, preliminary treatment of heating, desiccating wood, galvanization drying assembly line, phosphatization drying assembly line
Fiber industry: Carpet latex dryer, dyeing dryer, printing dryer, textile dryer, industrial clothes dryer, latex gloves drying assembly line
Glass and ceramics industry: Enamel firing dryer, glass oven, heat-setting machine, mould drying, fritting, parching
Paper industry: All kinds of paper dry lines and auxiliary drying heat wall
Farming and animal husbandry: Heating of barton, heating of crops, grain dryer
We also supply igniter, ignition pin, solenoid valve.
If any need, welcome to contact us freely!!
Factory & Packing Photoes:
If any need, pls contact us freely,then we will offer the best service for you!!
Whatsapp:+86 138835146358
Trade manager:cn1500440252
