Energy saving powder coating oven CATALYTIC infrared burner parts HD242
Link of TUV report:
http://cqhdkj.en.china.cn/company_profile/capability_assessment.html
Why do you choose Energy saving powder coating oven CATALYTIC infrared burner parts HD242???
1. Save above 20% energy than common gas buners
2. Zero harmful emmision
3. Pre-mixed, naturally aspirted burner, no need of air blower, air fan or fire chamber
4. Installed in all direction of an oven
5. Completed thermostat controlling system!
Now we have following sizes for different sizes oven:
| MODEL | Dimension | Weight | Gas Type | Heat Output | Consumption | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
| FY41 | 280*80*70 | 3.1 | NG/LPG | 2.1 | 1800 | 0.17 | 0.16 |
| HD61 | 423*80*94 | 3.8 | NG/LPG | 2.4 | 2030 | 0.18 | 0.18 |
| HD81 | 555*80*115 | 5.8 | NG/LPG | 3.1 | 2700 | 0.24 | 0.24 |
| HD82 | 219*164*108 | 4.8 | NG/LPG | 3.1 | 2700 | 0.24 | 0.24 |
| HD101 | 690*80*115 | 6.9 | NG/LPG | 3.9 | 3380 | 0.3 | 0.29 |
| HD162 | 570*130*175 | 8 | NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD242 | 840*130*175 | 11.7 | NG/LPG | 9.4 | 8120 | 0.75 | 0.71 |
| HD262 | 930*130*175 | 13 | NG/LPG | 10.9 | 9360 | 0.8 | 0.82 |

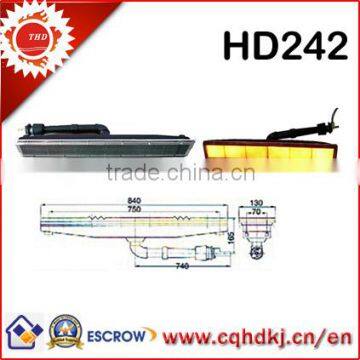

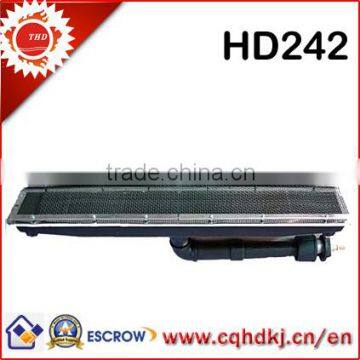

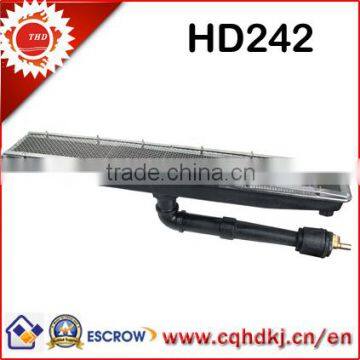

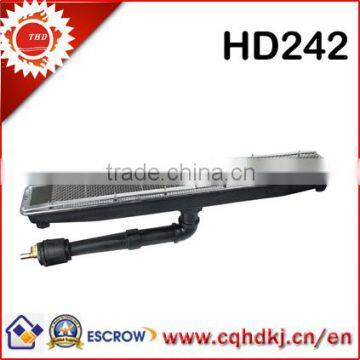

Photos of Energy saving powder coating oven CATALYTIC infrared burner parts HD242:
Material of Energy saving powder coating oven CATALYTIC infrared burner parts HD242:
1. Shell: Cast Iron
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron
Use scope of Energy saving powder coating oven CATALYTIC infrared burner parts HD242:
Used in all kinds of industrial oven,industrial dryer
Now the most widely applications:
1. powder coating curing oven
2.food baking oven
3.glove dipping drying oven
4. Welding preheating
5. Boiler

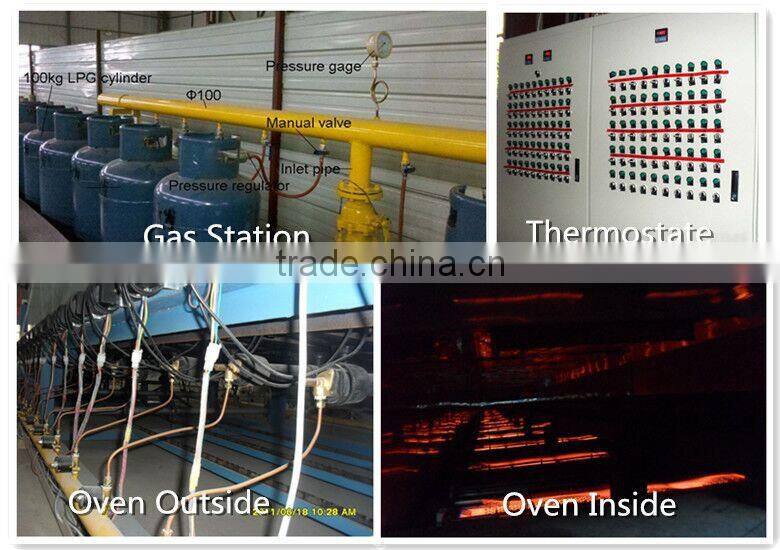

Common system for Energy saving powder coating oven CATALYTIC infrared burner parts HD242:
We have three accessoreis for this burners:
They are mainly used to realize auto igntion,help to keep stable temprature and protect from gas leakage.
For the whole system, it manly has following three parts:
1.Pressure regulator and gauge—they are used to reach a working pressure at 3000~5000pa for our burners.
2.Electric cabinet( thermostat)—to control burners and temperatures of oven
3.Burners and three accessories—every burner need three accessories, electric pulse igniter, ignition pin and solenoid valve. They are mainly used to realize auto-ignition, help to keep stable temperature and protect from gas leakage.
|
Please contact me online, or just send me a message. we will repons e to you in 2 hours on working days. |
