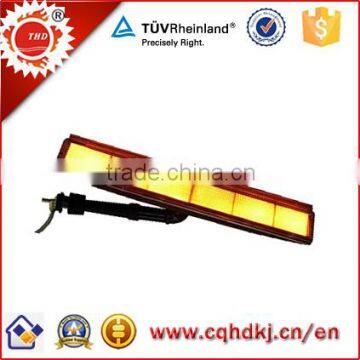

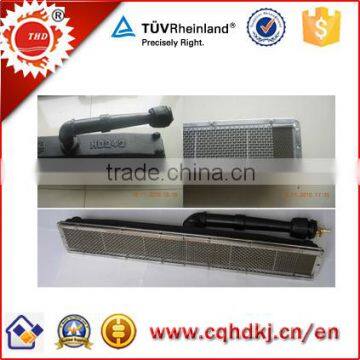

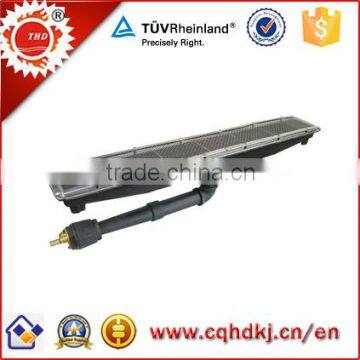

Product Name: industrial ceramic infrared gas burner for drying HD242
About us:
Chongqing Haodong Technology Factory produce bbq gas grill burner, gas burner, infrared burner, gas heater, poultry heater, gas brooder, pizza oven burner, industrial oven heater, fruit dryer etc.
Now we are the first and only company who apply rare-earth catalytic combustion technology on infrared burner & heater, this kind of technology could save 10~20% energy than non-catalytic infrared heater.
And we have TUV Certificate, pls. click following link to check:
http://cqhdkj.en.china.cn/company_profile/capability_assessment.html

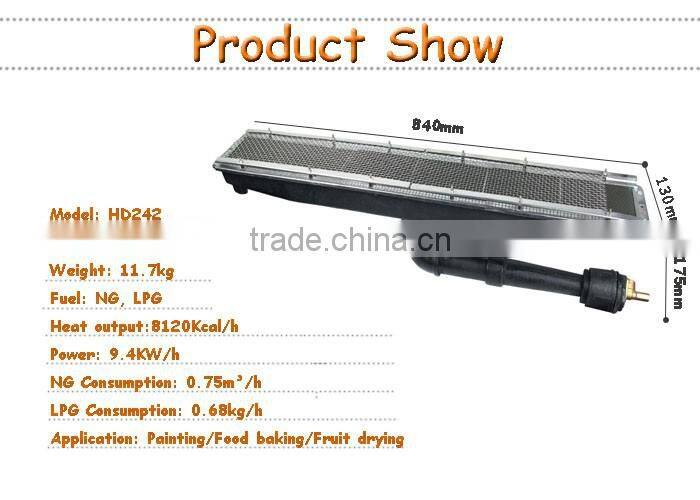

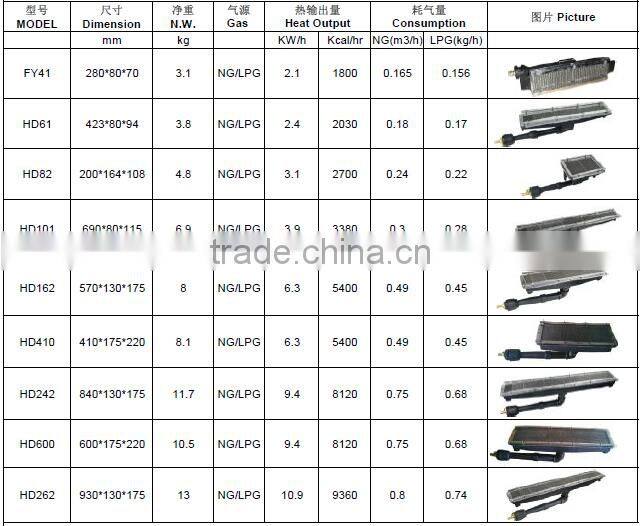

Models and specification of industrial infrared gas burner for drying:
The compare of ceramic plate.
The use of technical parameters
|
Items
|
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
Light-off temperature |
≤350 |
complete combustion temperature |
≤380 |
|
Heat source temperature
|
around 850 |
Baking temperature range |
30---550 |
Wavelength range |
1.9m--15m |
|
Furnance pressure natural |
gas 150mmAq;liquefied petroleum gas 280mmAq
|
Comparison table for all kinds of energy consumption
|
Furnace type
Parameters |
Electronic cooker
|
Oil furnace |
Coal-fired furnace
|
Infrared catalytic heaters |
|
Energy requirement
|
10,000Kcal |
10,000Kcal |
10,000Kcal |
10,000Kcal |
Temperature |
180 |
180 |
180 |
180 |
|
Energy consumption
|
Electricity(15 kW/h)
|
Electricity (1Kw/h)+ diesel (2Kg) |
Coal (10Kg)
|
LPG(0.9Kg) |
|
Heating time
|
20 minutes
|
40 minutes |
90 minutes |
5-8 minutes |

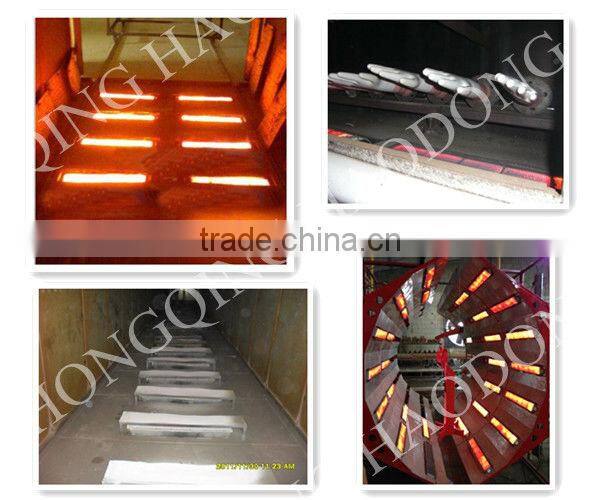

Application of industrial ceramic infrared gas burner for drying
Please contact me online, or just send me a message.
