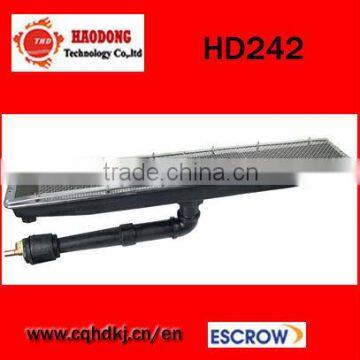

Product Name: Powder coating Natural gas/ LPG infrared direct drying heater
-Now Haodong Technology is the first and only manufacture in China who apply rare-earth catalytic combustion technology in infrared burner&heater
1. industrial infrared direct gas heater
MODEL |
Dimension |
Weight |
GasType |
Heat Output |
Consumption |
||
mm |
kg |
KW/h |
Kcal/hr |
NG(m3/h) |
LPG(kg/h) |
||
HD61 |
423*80*94 |
3.8 |
NG/LPG |
2.4 |
2030 |
0.18 |
0.18 |
HD82 |
219*164*108 |
4.8 |
NG/LPG |
3.1 |
2700 |
0.24 |
0.24 |
HD101 |
690*80*115 |
6.9 |
NG/LPG |
3.9 |
3380 |
0.3 |
0.29 |
HD162 |
570*130*175 |
8 |
NG/LPG |
6.3 |
5400 |
0.49 |
0.47 |
HD242 |
840*130*175 |
11.7 |
NG/LPG |
9.4 |
8120 |
0.75 |
0.71 |
HD262 |
930*130*175 |
13 |
NG/LPG |
10.9 |
9360 |
0.8 |
0.82 |

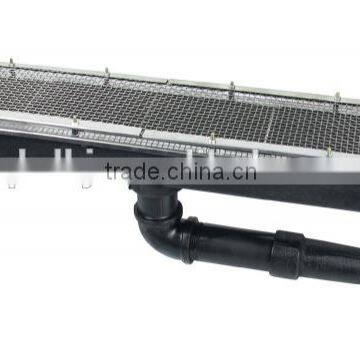

Infrared Gas Burner Material:
1. Shell: Cast Iron
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron
Ceramic infrared Gas Burner Advantages :
1.Save above 30% energy than electric
2.High efficient: preheating up time can be reduced to under 30min
3.Eco-friendly :CO≤80ppm;NOx≤10ppm;CHx≤50ppm
4.Naturally aspirated burner,no need of accessories equipment,like air blower,fire chamber...
Infrared Gas Burner Applied Range :
Infrared catalytic gas burner is good choice industrial drying,baking or curing oven,especially in tunnel&converyor oven,saving production&equirpment cost,demand of space is small and easy to control......It martched with auto-igntion,safe controller and keep stable temperature.Now is already widely used industrial drying,especially in metal curing & food baking.......
Application photos of curing oven
We mainly do bbq gas grill burner, gas burner, infrared burner, gas heater, heating panel, poultry heater, gas brooder, pizza oven burner, industrial oven heater, fruit dryer etc.
Chongqing Haodong Technology Factory is special on gas infrared catalytic burner. There is a layer of catalytic( Oxygen Storage Materials ) on Haodong burner ceramic, which will reduce 25% gas consumption.
Just sending us an inquiry, then we will take care of all the rest.
