Place of Origin Chongqing, China
Brand Name THD
Model Number HD262
Type Gas Burner

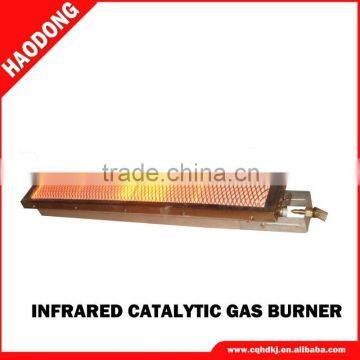

Product Name: New type Infrared Ceramic Gas burners



Infrared gas burner is a direct way to radiant the object, which is very effeient comapred the air heating.

There are main 2 types of infrared gas burner. One type is for BBQ,roaster,spit machine use. The other is industral use.

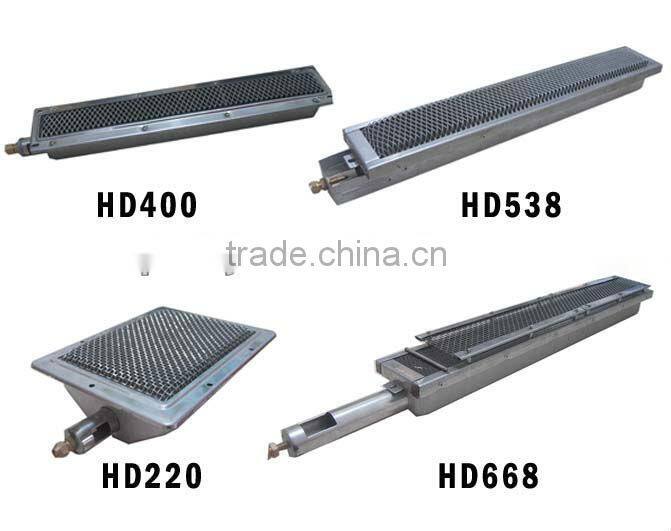

1. BBQ series ceramic Infrared gas burners

MODEL

Dimension

Weight

Gas Type

Heat Output

Power


mm

kg



BTU/h

Kcal/hr

Kw

HD220

220*170*60

0.9

NG/LPG

10000



2.94

HD400

400*80*60

0.7

NG/LPG

9030

2300

2.72

HD538

538*85*65

1.4

NG/LPG

13500

3400

3.9

HD668

668*85*65

1.7

NG/LPG

166000

4180

4.8

 Infrared gas burner material:

1. Shell:aluminum foil board





2. Radiant part: catalytic cordierite ceramic honeycomb plates

3. Nozzle: brass

4. Up cover: stamped stainless iron

5.Screen: heat resistant alloy

    High transaction Catalytic Ceramic Infrared Gas Burner



Application

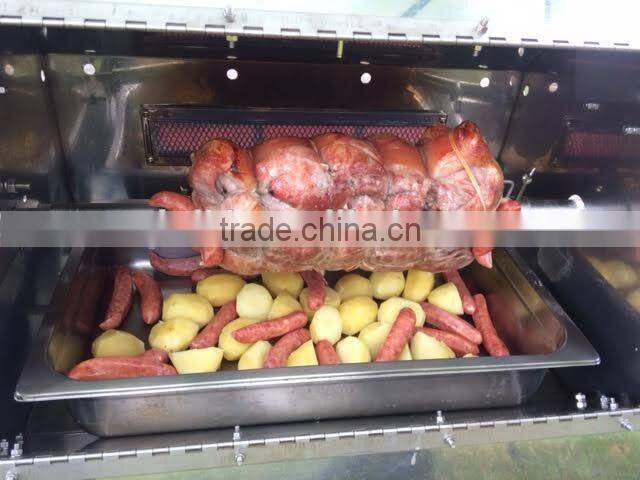

 This infrared gas burner series is specially make for bbq, commercial grill , roaster,spit  shawarma, salamander and so on.



 High transaction Catalytic Ceramic Infrared Gas BurnerHigh transaction Catalytic Ceramic Infrared Gas Burner

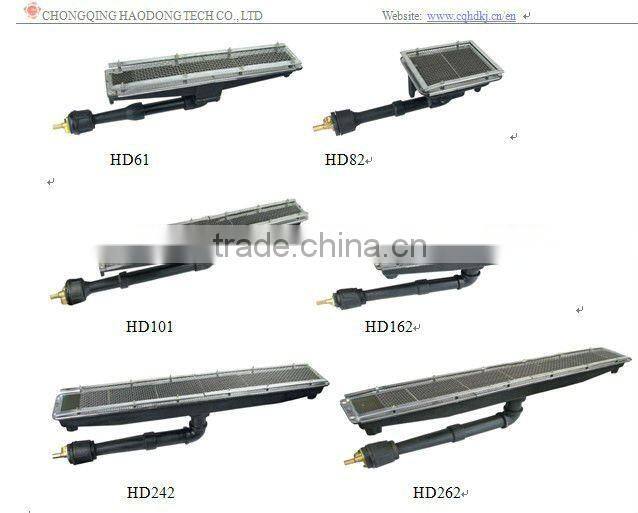

2. industrial infrared gas burners

MODEL

 Dimension

Weight

GasType

Heat Output

Consumption


mm

kg



KW/h

Kcal/hr

NG(m3/h)

LPG(kg/h)

HD61

423*80*94

3.8

NG/LPG

2.4

2030

0.18

0.18

HD82

219*164*108

4.8

NG/LPG

3.1

2700

0.24

0.24

HD101

690*80*115

6.9

NG/LPG

3.9

3380

0.3

0.29

HD162

570*130*175

8

NG/LPG

6.3

5400

0.49

0.47

HD242

840*130*175

11.7

NG/LPG

9.4

8120

0.75

0.71

HD262

930*130*175

13

NG/LPG

10.9

9360

0.8

0.82



Infrared Gas Burner Material:

1. Shell: Cast Iron

 2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated

 3. Nozzle: brass

 4. Up cover: stamped stainless iron

 High transaction Catalytic Ceramic Infrared Gas Burner







HD Ceramic infrared Gas Burner Advantages :

1.Save above 30% energy than electric

2.High efficient: preheating up time can be reduced to under 30min

3.Eco-friendly :CO≤80ppm;NOx≤10ppm;CHx≤50ppm

4.Naturally aspirated burner,no need of accessories equipment,like air blower,fire chamber...



Infrared Gas Burner Applied Range :

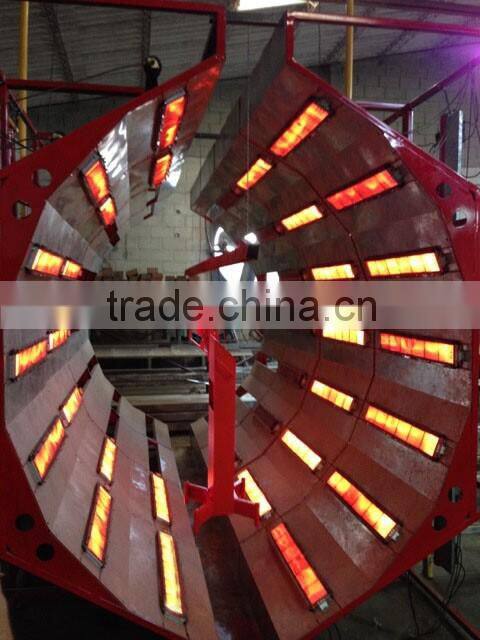

Infrared catalytic gas burner is  good choice industrial drying,baking or curing oven,especially in tunnel&converyor oven,saving production&equirpment cost,demand of space is small and easy to control......It martched with auto-igntion,safe controller and keep stable temperature.Now is already widely used industrial drying.

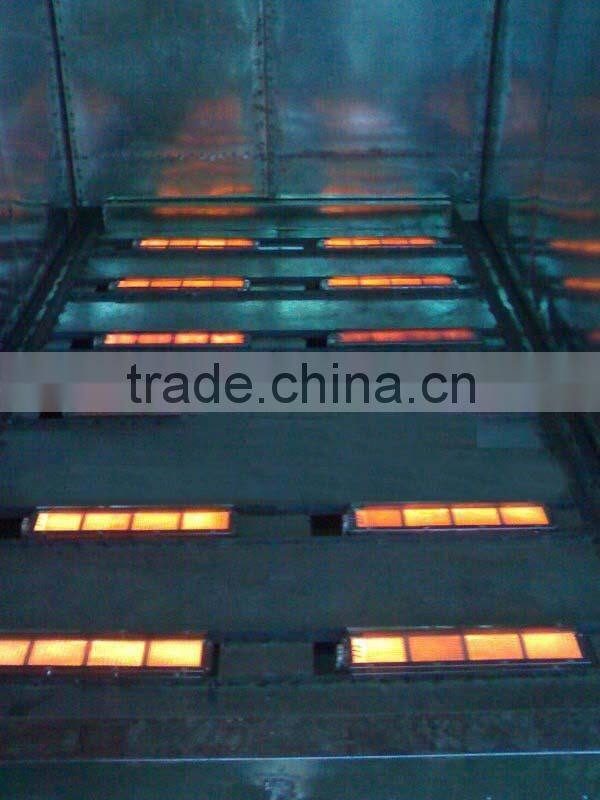

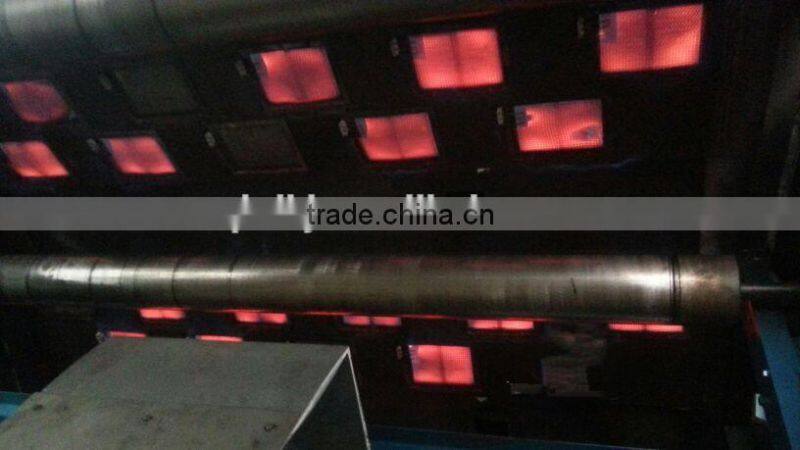

using ceramic infrared burner in the oven





High transaction Catalytic Ceramic Infrared Gas BurnerHigh transaction Catalytic Ceramic Infrared Gas BurnerHigh transaction Catalytic Ceramic Infrared Gas Burner

High transaction Catalytic Ceramic Infrared Gas Burner



Company Information



High transaction Catalytic Ceramic Infrared Gas Burner

We mainly do bbq gas grill burner, gas burner, infrared burner, gas heater, heating panel, poultry heater, gas brooder, pizza oven burner, industrial oven heater, fruit dryer etc.

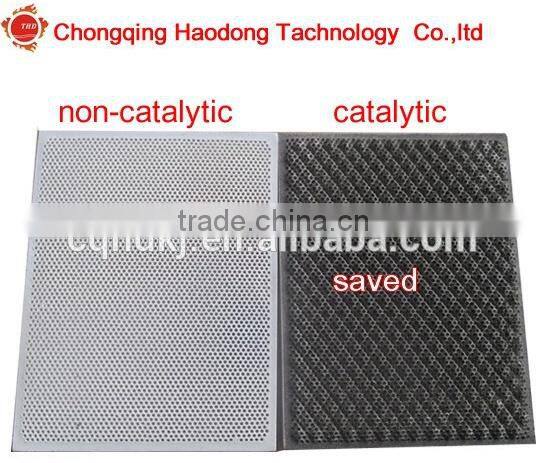

Chongqing Haodong Technology Factory  is special on gas infrared catalytic burner. There is a layer of catalytic( Oxygen Storage Materials ) on Haodong burner ceramic, which will reduce 25% gas consumption.

High transaction Catalytic Ceramic Infrared Gas Burner

 High transaction Catalytic Ceramic Infrared Gas Burner
