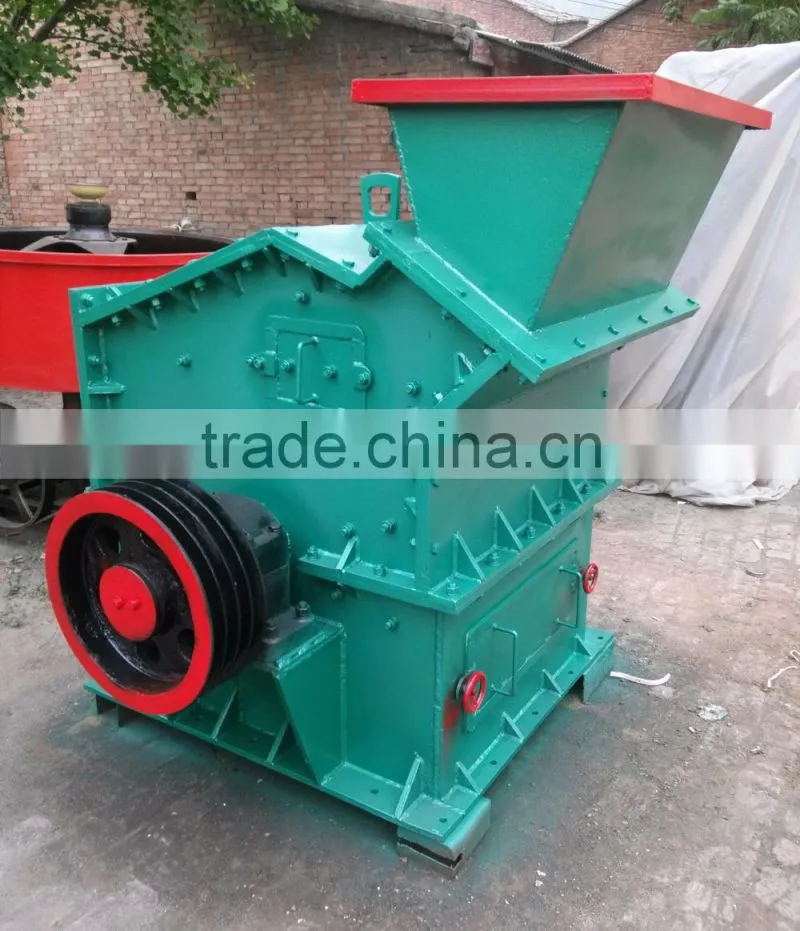

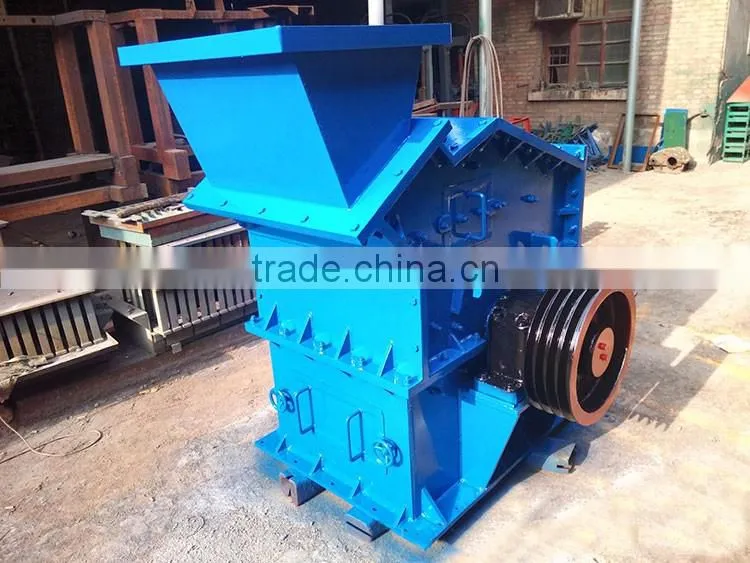

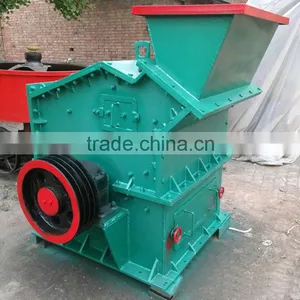

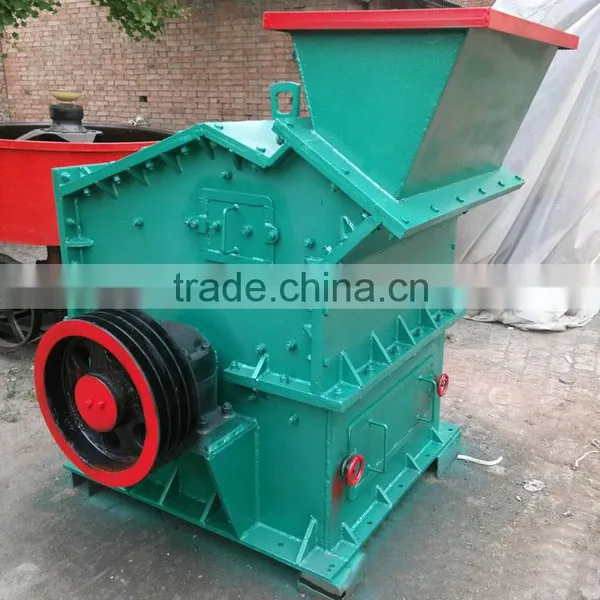

Help CenterRock Fine Crushing Machine for Sand Production Line Supplier's Choice
Related Products
-
Best Selling Stainless Steel Herb Crushing EquipmentUS$ 2,000 - 5,000MOQ: 1 Set -
Heavy Metal Crushing Machine, Metal Products CrusherUS$ 5,000 - 10,000MOQ: 1 Set
-
Dry Powder Ball Pressing Machine, High Strength Charcoal Briquetting MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
Plastic Extruder, Plastic Extruding Machine, Plastic Remodeling MachineUS$ 800 - 3,000MOQ: 1 Set
-
Brick Stacker Crane, Brick Palletizer, Palletizing Machine for Cement BlockUS$ 2,000 - 6,000MOQ: 1 Set
Brief Introduction:
Impact crusher is used for coarse crushing, intermediate crushing and fining the fragile material of medium hardness, such as limestone, concrete, coal, quartz, dolomite, plaster and chemical raw materials, the compressive strength is below 250MPa. This machine is widely applied in mining, metallurgy, construction, highway, railroad, and chemistry industries. In the stone production line, Impact crusher is mainly used for fine crushing, and cooperates with jaw crusher.
When the crusher works, the motor drives the rotor to rotate with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet.

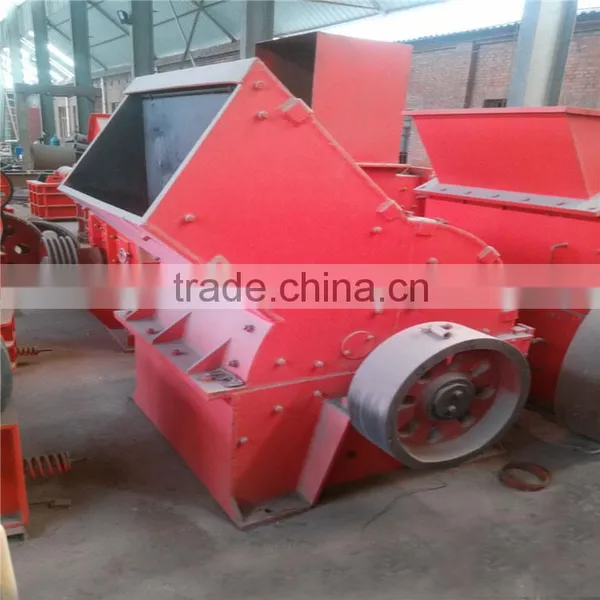

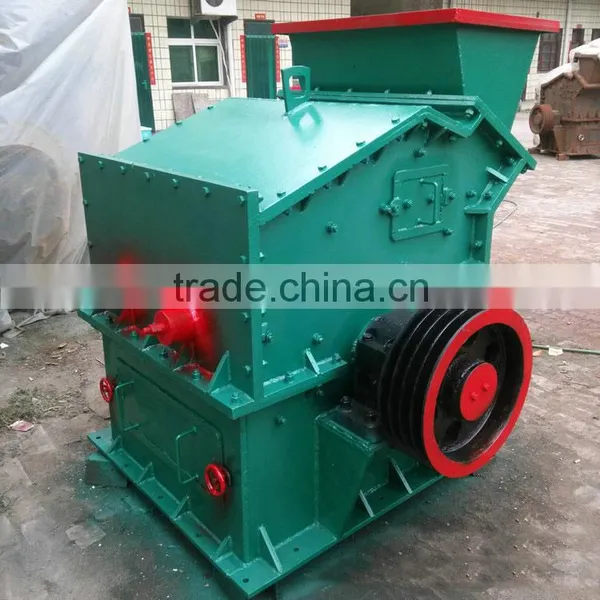

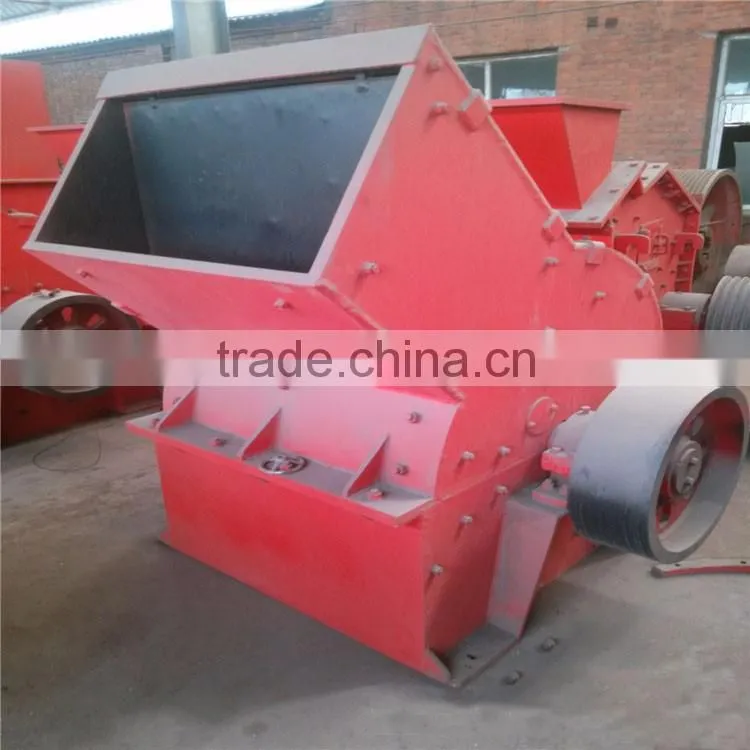

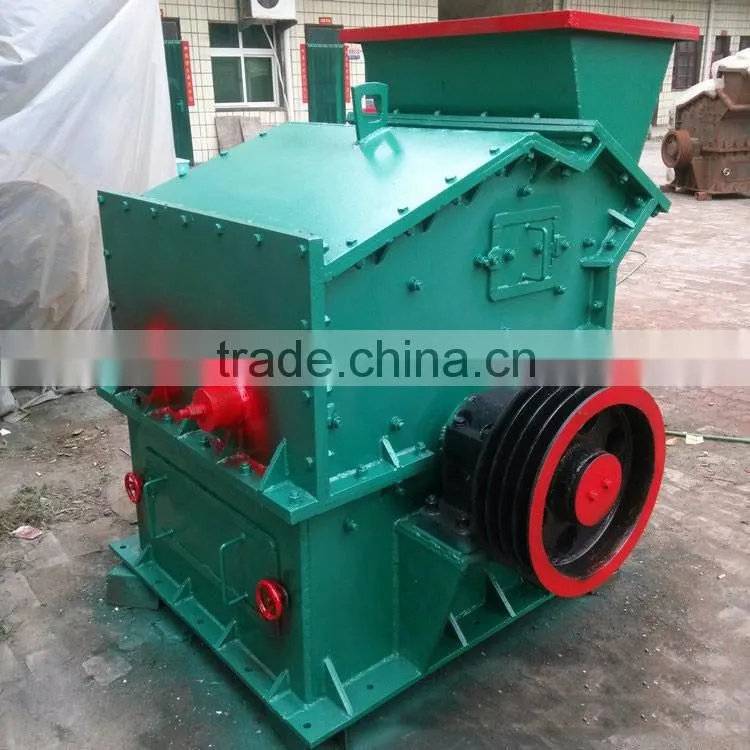

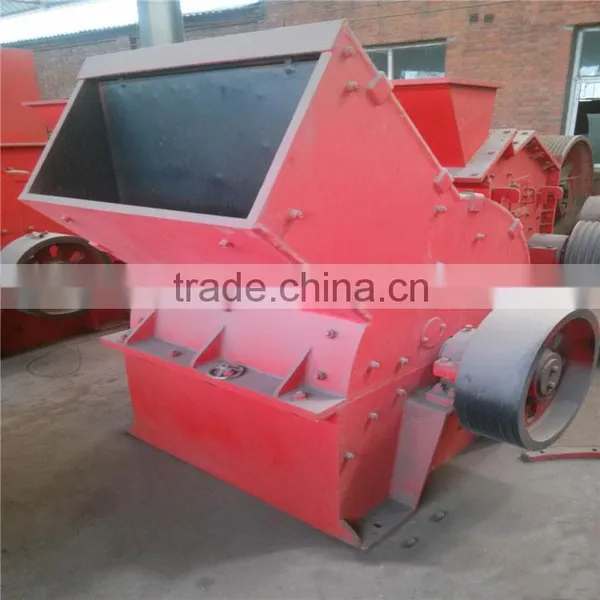

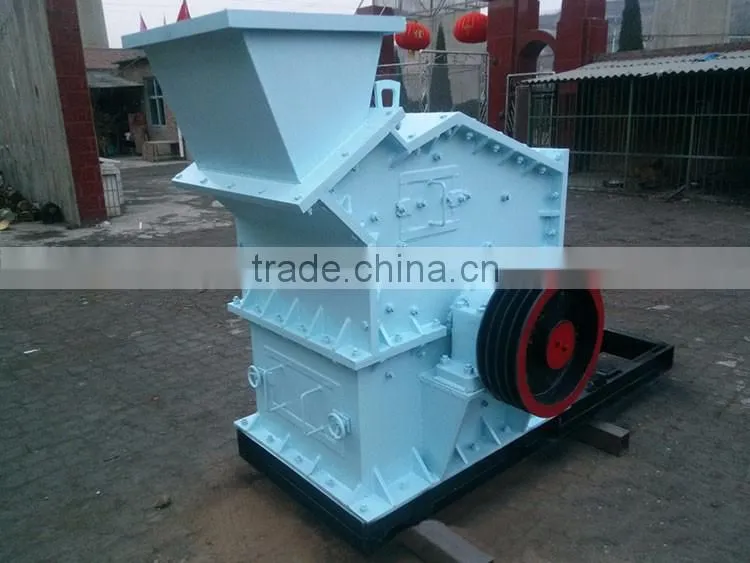

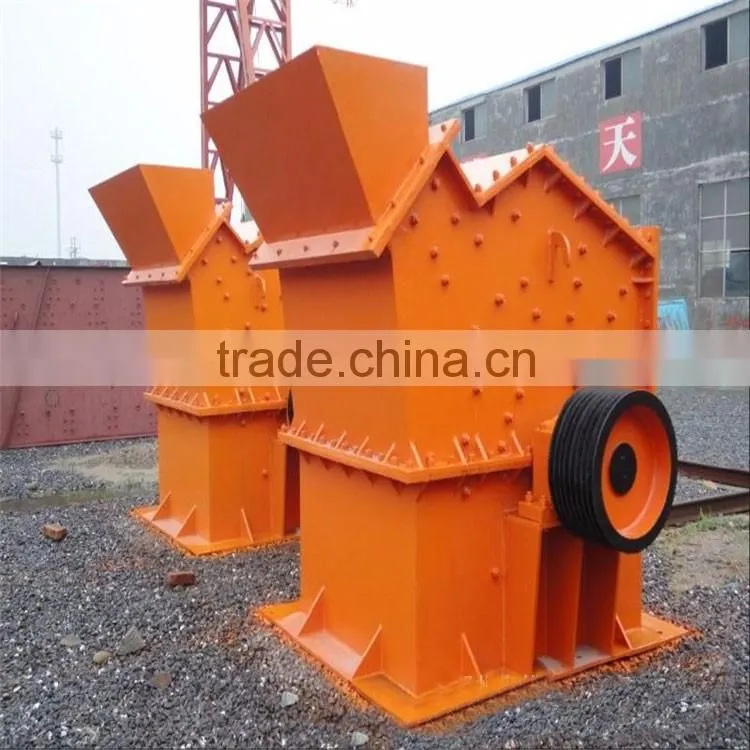

Details:
Parameters:
SXJ fine crusher |
roller sizeø×(mm) |
roller sizeø×(mm) |
roller sizeø×(mm) |
roller sizeø×(mm) |
roller sizeø×(mm) |
roller sizeø×(mm) |
roller sizeø×(mm) |
roller sizeø×(mm) |
roller sizeø×(mm) |
Mode |
800×400 |
800×600 |
800×800 |
1010×1010 |
1200 |
1200 |
1400 |
1600 |
1800 |
Feed inlet size(mm) |
400×185 |
500×250 |
550×330 |
1000×350 |
1200 |
1200 |
1500 |
1600 |
1800 |
Max.feed size(mm) |
<120 |
<180 |
<180 |
<180 |
<180 |
<180 |
<190 |
<190 |
<190 |
Particle size(mm) |
<5 |
<5 |
<5 |
<5 |
<5 |
<5 |
<5 |
<5 |
<5 |
Cement clinker(T/H) |
20-30 |
35-40 |
35-45 |
45-55 |
80-110 |
100-110 |
100-150 |
170-210 |
250-270 |
Limestone(T/H) |
35-45 |
45-55 |
55-65 |
65-75 |
50-100 |
90-100 |
100-150 |
190-250 |
280-310 |
Rated power (KW) |
37-45 |
45-55 |
45-55 |
55-75 |
100-110 |
100-132 |
160 |
250 |
315 |
Company Profile:
Zhengzhou Weier Mechanical Equipment Co., Ltd. is located in Zhengzhou and is specialized in manufacturing various kind of machineries for families and industries. With an experienced and professional team, we have exported our products to many countries and regions all over the world.
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products enjoy a good reputation among our customers.
Workshop:
Packing and Shipping:
Why Choose Us:
1. The supermarket air curtain display case is an important composition of your store. It's performance directly decide the benefits of the whole store. At Weier we understand this and our solid solution ensures that your store always runs perfectly!
2. We are staffed 24 hours a day, 365 days of the year. When you need assistance our staff is always ready to deliver friendly and helpful responses as quickly as possible. Any support request submitted is guaranteed to receive a swift response.
3. Our products are all self-developed and innovated, ensuring optimum performance. OEM and other customized modifies are availble for our clients.
4. At this exact moment we already export our products to over 23 contries all over the world. Thousands of our clients and partners give us excellent feedbacks.
5. CE Certification and many other qualifications are obtained.
Contact Us:
With years of exporting experience, we will be the best choice for your future cooperation, please feel free to send your message by pressing "SEND" button below.
