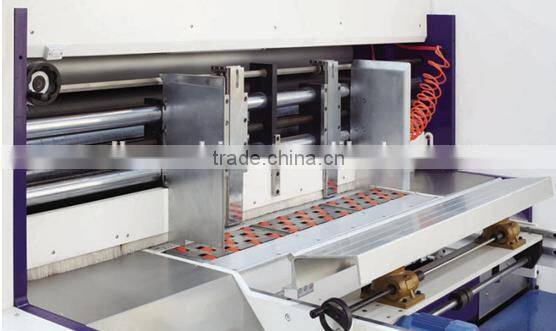

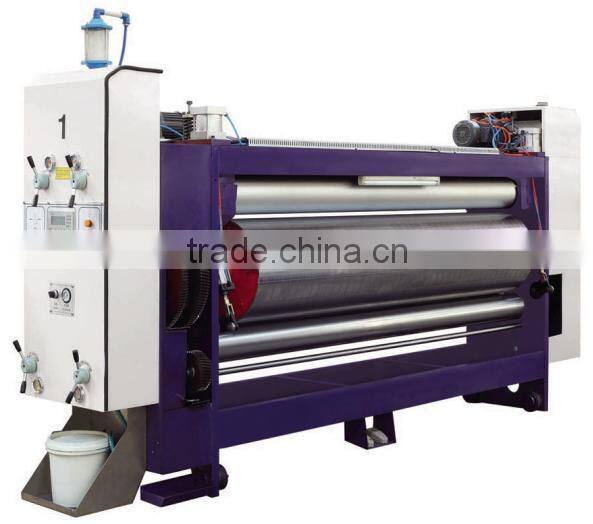

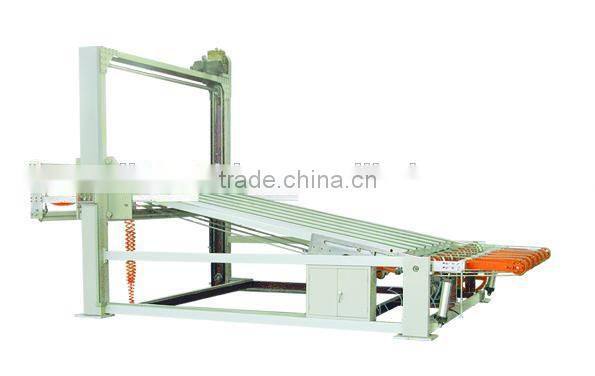

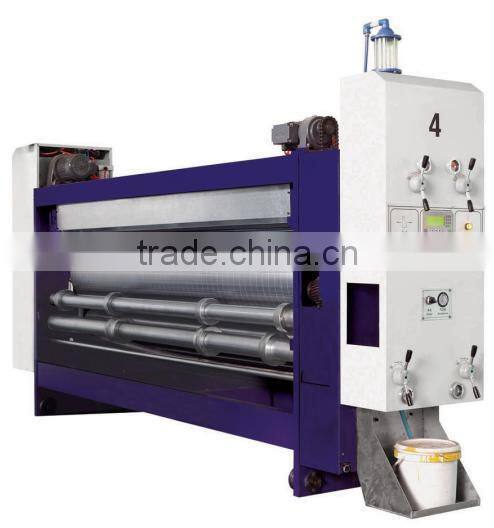

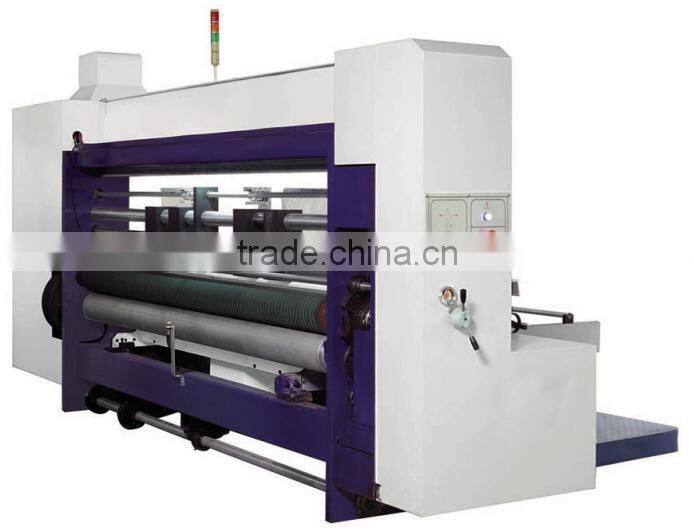

Machine for Making Boxed Cardboard|Cardboard Cutting Machine
Main Motor:Main motor adopts frequency conversion motor
Bearings:nsk
Electrical Parts
Units adopt independent control unit, safe and reliable
Relay, lights, buttons, contactor, air switch adopt Schneider etc. good famous brand, to ensure reliable
Adjust frequency converter adopt Delta (main motor frequency conversion adjustment, suction feeding frequency adjustment)
PLC controller adopt Taiwan Delta
Rotary encoder adopt the Japan OMRON
Touch screen adopt Delta (Taiwan)
Rubber roller, Guangdong made.
Main Driving Gear
High precision bevel gear, adopt 20CrMnTi quality steel, carburizing quenching, fine grinded gear, transmission gear of high strength, good wear resistance, low noise, longtime ensure the machine rotation precision
Lubrication adopt closed type spray lubrication system, to ensure transmission accuracy and use-life
Gears adopt keyless connection, so the gear up tight lock, to ensure that the registration accuracy
Main Technical Parameters
WEL1425 Automatic Printing Slotting Die-cutting Machine (Lead-edge Feeding) | ||
Max Machine Speed (pcs/min) | 120 | |
Economic Working Speed (pcs/min) | 80--100 | |
Max Feeding Size (mm) | 1450×2400 | |
Max Printing Size (mm) | 1450×2200 | |
Skip-feeding Size (mm) | 1600×2400 | |
Min Feeding Height (mm) | 450(Low-speed, full-printing) | |
Max Slotting Depth (mm) | 380 | |
Standard Plate Thickness (mm) | 7.2 | |
Suitable Cardboard Thickness (mm) | 2 - 12 | |
Min Slotting Distance (mm) | Positive Knife | 130×130×130×130 |
Negative Knife | 260×80×260×80 | |
Main Motor Power (kw) | 22 - 30 | |
Total Power (kw) | 48(Depends on Units) | |
Overall Dimensions (mm) L*W*H | 12000×4500×1600 | |
Quality Guarantee Terms:
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
