Home > Products > Paper Product Making Machinery > Cake Paper Tray Forming Machine|Paper Cake Tray Making Machine
Cake Paper Tray Forming Machine|Paper Cake Tray Making Machine
- Qingdao Port/Shanghai Port
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Product Type | Paper Cup Machine | |
| Processing Type | Paper Folding Machine | Place of Origin | Henan, China | |
| Brand Name | Weier | Model Number | WE | |
| Voltage | 220V/380V, 220V 50Hz,3 kw or 380V 50HZ, 3kw | Power(W) | 3000W | |
| Dimension(L*W*H) | 1500*900*1900mm | Weight | 500kg, 500 KG | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

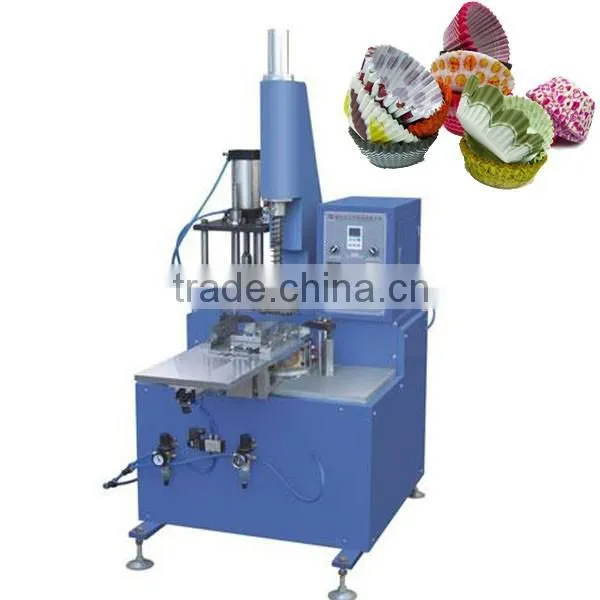

Paper Cake Tray Form Machine
Introduction:
Semi-automatic paper cake tray machine is designed on the BJ-CTA full automatic paper cake tray machine against the market requirement. In paper cake tray forming machine, separate and feed tens paper to the in-put(Entrance) by hand, the machine auto transfer to the mold, push to the mold and form the shape by heating.
The difference between BJ-CTA and BJ-CTB paper cake tray machine is the separated paper process feeding process. BJ-VTB semi automatic machine feed by hand.
Technical Parameters:
Paper size | Against customer requirement (mold exchangeable) |
Raw material | 15-150gsm anti-oil paper(greaseproof paper), aluminium foil paper or other |
Speed | 20-30beat/minute, 25-35pcs/beat, it is decided by paper thickness |
Total power | 220V 50Hz, 3kw or 380V 50Hz, 3kw |
Weight | 500kg |
Packing size | 1500*900*1900mm |
Air supply | Air pressure 0.6Mpa, air out-put:0.6m3/minute Need to buy an air compression |
Quality Guarantee Terms:
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
