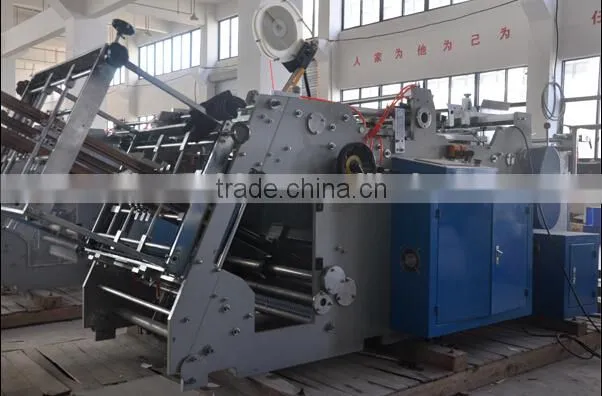

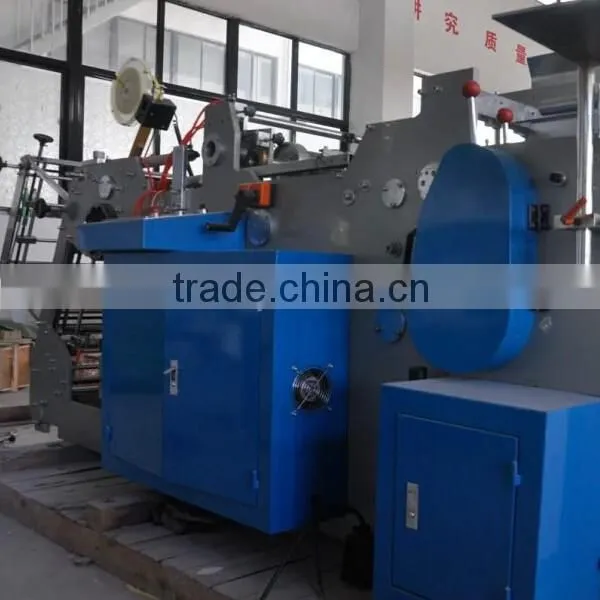

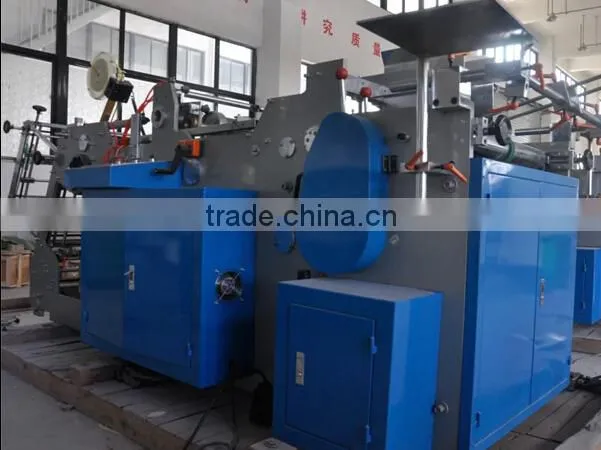

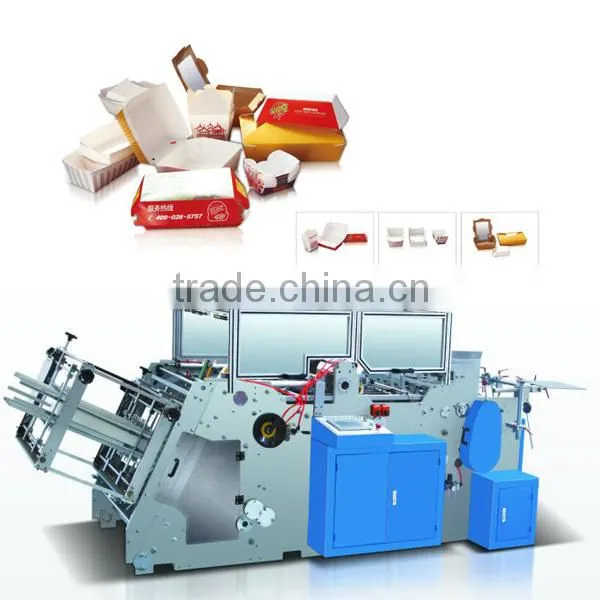

Disposable Carton Box Glue Machine
Introduction:
- 1. Electrical components we use international famous brands such as Japan Omron, french Schneider, Germany Siemens, delta etc import parts. And we use PLC programmable control and touch screen interface.
- 2. Device for feeding Water-based adhesive(glue) high efficiency and high precision to feeding glue and the sealing edge of the carton can be adjusted its device design reasonable, compact form and running steadily, easy and convenience to clean.
- 3. Finished Carton outing device, Full automatic carton outing device(feeding, collection, stacking), and fixing with counting, convenient for packing and save of labors.
- 4. Photoelectric failture-detecting system is available, if there is no papers or paper feeding blocking, the machine will stop automatically by itself, so, it can reduce the cost consume, and increase more safety performance.
Feature:

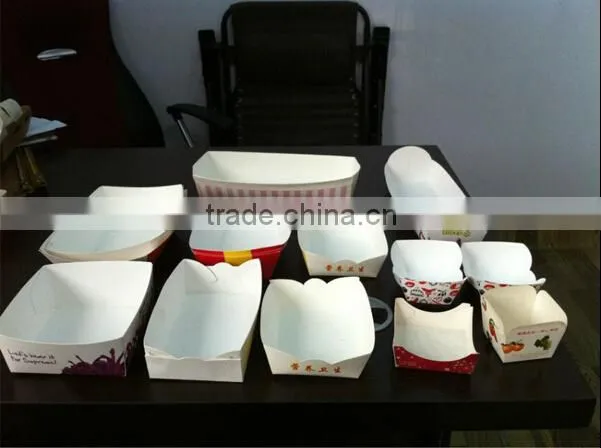

Full automatic carton erecting forming machine is an ideal equipment to produce paper box such as hamburger box, chips box. Fried chicken box, kids meal box, etc.
With firm structure, high quality, low noise and high efficiency.
With paper feeding unit, adjusted unit, glue unit, forming unit, finished products collecting unit and also counting unit.
Work principle:
The feeder transmits the pre-printed and cut cardboard from the paper shelf to the convey chains and send it to the shaping mold, during the procedure, the cardboard has been glued and you can adjust the position of the gluing, the volume of gluing can be measured while in progress without stopping. After being glued, the cardboard will be conveyed to be shaped and collected to be auto calculated as the preconcert quantity and auto mark without stopping production.
Technical Parameters:
Produce speed | 60-160pcs/min(different paper box shapes, the speed is different) |
Raw material | 200-600g/m2 cardboard/ivory paper/corrugated paper thickness:1.5mm |
Total power | 380V, 50Hz, 4.5kw |
Carton size | Carton length:L:100-450mm degree:5-40 Carton width:B:100-580mm sealing height:H:15-200mm |
Packing size | 3600*1400*1700mm |
Weight | 2300kgs |
Quality Guarantee Terms:
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
