Full Automatic Paper Plate Making Machine
- 100 Set / Sets per Month
- Qingdao Port/Tianjin Port
- T/T Credit Card PayPal
- Automatic paper recycling machine for produce craft paper from www.frdpapermachine.com
- A4 copy paper manufacturing machine for sale
- 1575 mm high quality kraft paper manufacturing machine for sale
- CE 3200mm corrugated paper machine,carton recycled paper making machine
- 787mm toilet paper making machine for small toilet paper machine
- Whole Paper Making Production Line/Paper Making Machine/Pulp Making Machine
Product Details
Condition: | New | Product Type: | Paper Plate Machine | Processing Type: | Paper Folding Machine |
Place of Origin: | Henan, China | Brand Name: | Weier | Model Number: | 400P |
Voltage: | 220V/380V | Power(W): | 3kw | Dimension(L*W*H): | 1600*1500*1700mm |
Weight: | 600kg | Certification: | CE | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Full Automatic Paper Plate Making Machine
Introduction:

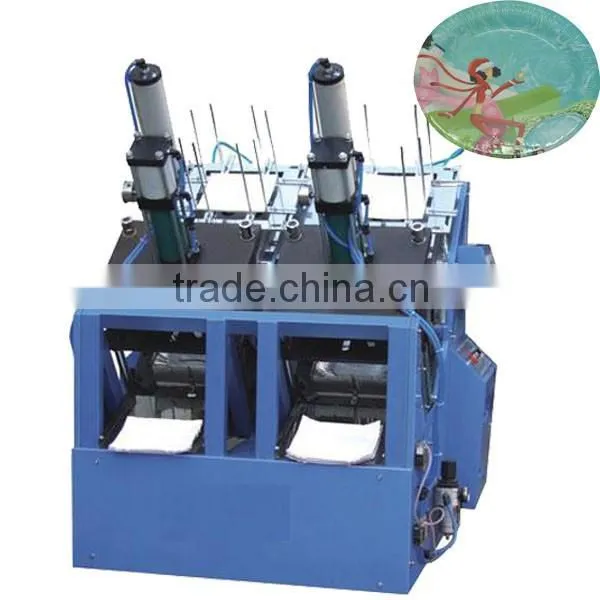

Model 400P medium-speed automatic paper plate forming machine was developed and researched in order to meet the market requirement. It has integrated the pneumatic and the mechanic technologies, which makes it has the functions of faster working speed, higher safety-performance, safer operation and easier maintenance than the conventional one.
Model 400P medium-speed paper plate machine adopts high efficient pressurizing air cylinder, so that the ure can reach to 5T, compared with the oil pressure one, it has the advantages of high speed, environment protection and humanism design standard 400P paper plate machine has two working stations, each station install on set of mold and each station has separately PLC digital control and electric control.
It is widely applied to make paper plate(or aluminum foil laminated paper plate)in round(rectangle, square, circular, or irregular) shape. Machine speed changes against the material(paper) thickness and the plate size.
Technical Parameters:
Paper plate size: 5-11 inch(mold exchangeable); also available to make any special size by customer order
Raw material: (100gsm-1000gsm) paper/paperboard, aluminum foil coated paper, one side PE coated paper or other
Speed: 65-80pcs/min
Total power:220V/50Hz, 3kw or 380V, 50Hz, 3kw
Weight: 600kgs
Overall size: 1600*1500*1700mm
Working air supply: air pressure:0.8Mpa
Air out-put: 1m3/minute(need to buy air compressor). If your plate is very large, and the paper is up 600gsm, we design a special machine for you.
Quality Guarantee Terms:
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
