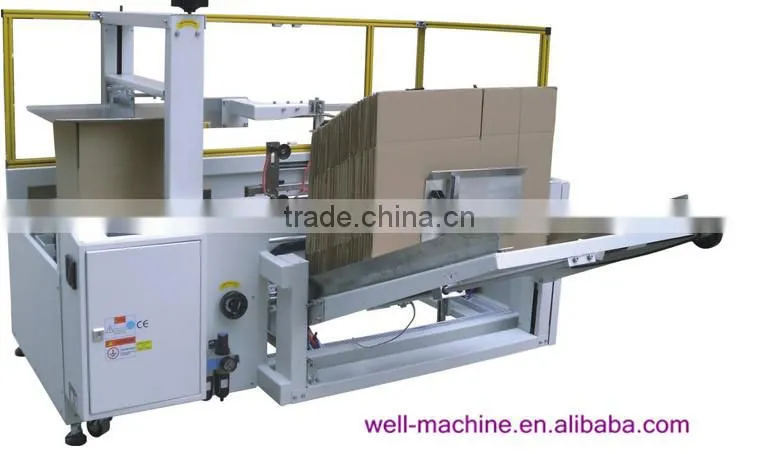

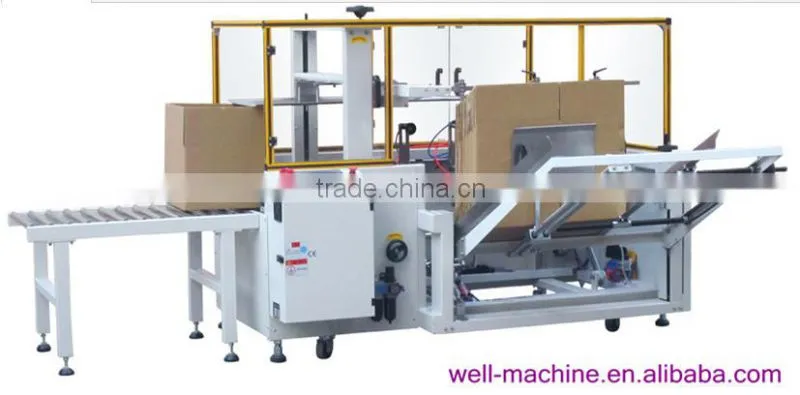

Automatic Carton Forming and end-sealing machine

Specifications

Automatic Carton Forming Machine
1.Stable operation.
2.High efficiency.

                                                                       Automatic Carton Forming and bottoming machine

Product Features:

1.Adopt   international advanced manufacturing technology, and choose imported components, electric components and pneumatic components.

2.Adopt vertical type storage paperboard way,and can add carton board at any time without  downtime.

3.Suitable for the same carton packing size at same time,if you want to change the carton's specification,can be manually adjusted,need 1-2 minutes.

4.Reasonable design,  synchronous draw forming, fold the bottom and the back cover a lot of time synchronization.

5. Light volume, parts precision and durable performance, operation without vibration, stable running long life, high efficiency.

6. Add bright organic glass shield, open the door automatically stop, avoid accidental operation.

7. Can be stand-alone operations, and also can be used with automatic packaging line.

Technical Parameters:

Model	WE-40
Unpacking capacity	12 pcs/min
Cartons storage quantity	100pcs(1000mm)
Power supply	220V     200W
Necessary air pressure	60kg/cm³
Air consumption	450NL/min
Carton size(L*W*H)	250-450*150-400*100-400
Adhesive tape size(mm)	48,60,75
Size of the machine	2000*1900*1450mm
Weight	450kg
