Home > Products > Noodles Production Line > Instant Noodle Production Line|Instant Noodle packing machine
Instant Noodle Production Line|Instant Noodle packing machine
- 20 Plant / Plants per Month
- Qingdao Port/Tianjin Port
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Noodle | |
| Place of Origin | Henan, China | Brand Name | weier | |
| Model Number | BFP-12Y | Voltage | 380v | |
| Power(W) | 83000 | Dimension(L*W*H) | 60*6*3m | |
| Certification | ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas | Production Capacity | 1050kg/h |
Product Description
Instant Noodle Production Machines
Features:
1. It has perfect technology, compact structure, original design and stable performance, is developed on the base of requirements of the world market.
2. Convenient operation, low energy and small floor space
3. The investment for this line is only one tenth of that lager size equipment, especially suitable to small-sized or self owned enterprise.
4. The corrugated instant noodle produced by this line is tenacious, smooth and transparent. It is very easy to be saturated by water.
5. All the machinery is made of stainless steel 304.
6. Turnkey project provided, from raw materials to packing procedures.
7. Heating power: electricity or steam
8. Final package: cup or plastic bag
9. Noodle shape: round or square
Introduction:
BFP series of automatic instant noodles line, with perfect technology,compact structure,original design and stable performance, is developed on the base of similar products and requirements in the world market, it realizes high automation, convenient operation,low energy and small floor space the assures all working procedures from mixing to finished products and be accomplished once.

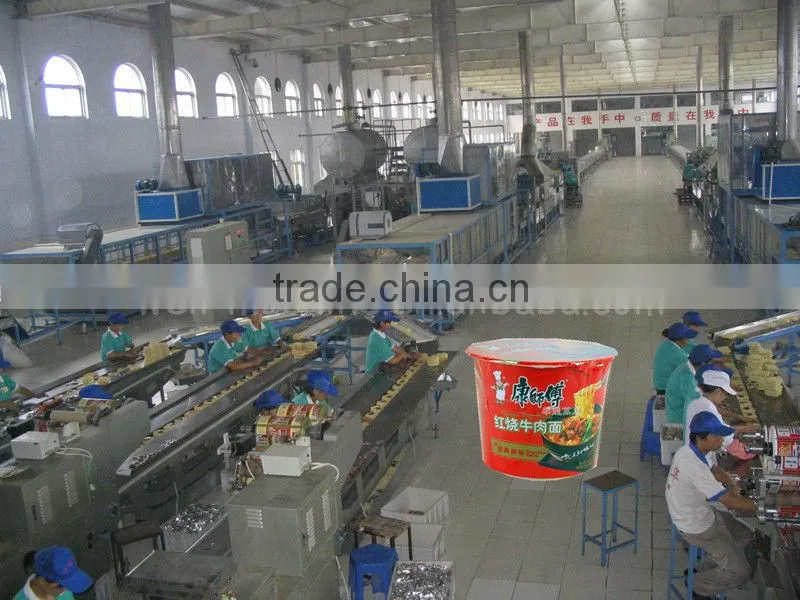

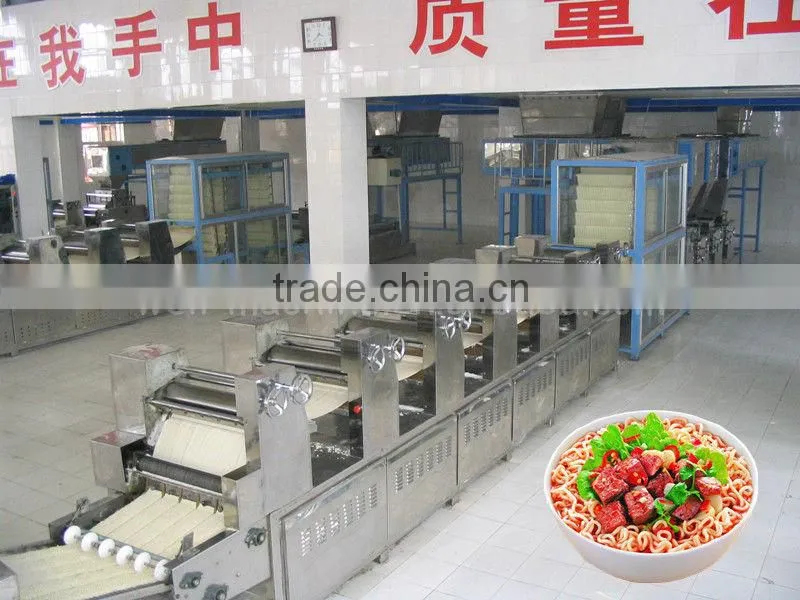

Whole product line showing:
NO | Production name | QTY | remark |
1 | Vibrating shifter | 2 | Power0.25kw,norm:900mm×500mm.stainless steel body and net |
2 | Hopper | 2 | Volum:0.7m3,pneumatic rorating to open the door.stainless steel made |
3 | Brine mixing machine | 2 | Power1.5KW,for pump 0.75kw,volume :1000L |
4 | Brine measurement device | 1 | Volume :130L,solution feed pump:0.75kw |
5 | Double spindle and dough Kneading machine | 2 | Power:11kw,200kg/times, manual rorating to open the door |
6 | Disc maturation machine | 1 | Power:3kw,material plate for specification:1800mm×410mm |
7 | Compound mangler | 1 | Roll width:510mm,3groups roller machine,steel,5.5kw,for frequency conversion, stainless steel frame cover |
8 | Successive dough pressing machine | 1 | Roller width;510mm,6 groups of roller, steel machine frame,power:5.5+5.5kw,variable frequency speed control. the imported Japanese bearing for the last press rolls |
9 | Single noodle steaming Machine | 1 | Length:26m ,stain steel production |
10 | Squareness row separator Machine | 1 | main transmission:1.5+1.5kw,frequency conversion, take off noodles shaft:0.25kw,fan;0.9kw*2 |
11 | Frying machine | 1 | Main transmission:2.2kw,frequency conversion, vertical circulation pump:11kw,the gear pump:2.2kw,the fan knife:0.9kw,80m2spiral plate heat exchanger :1 |
12 | Cooling machine | 1 | Power:1.5kw,cycloning0.37kw*12,diameter:500mm |
13 | Shunt conveyor | 1 | Main transmission:1.1kw(mechanical stepless speed) |
14 | Inspection conveyor (curved conduit) | 2 | Main transmission:0.37kw(mechanical stepless speed) |
15 | Finished goods conveyor | 2 | Main transmission:0.37kw(mechanical stepless speed) |
16 | Electric control cabinet | 1 | Frequency control, PLC control(excluding electric power wires before the electric cabinet) |
17 | Install accessories random Tools | 1 |
|
Quality Guarantee Terms:
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
Zhengzhou Weier Mechanical Equipment Co.,Ltd is a first manufacturer of instant noodle and dry noodle production lines. We are specialize in them for more than forty years. We can also provide food processing machine, packing machine and agriculture machine. We have well-experienced managers, outstanding engineers as well as well trained technical workers. By constant technical exchange with well-known firms of the same line in the world and also by introduction of advanced techniques and experience into our company, we have established a strong technical guarantee system. We adhere to the principle of "whole hearted attitude, good credit, excellent quality and perfect service", and exert strict quality control in production, sale and after-sales service.
